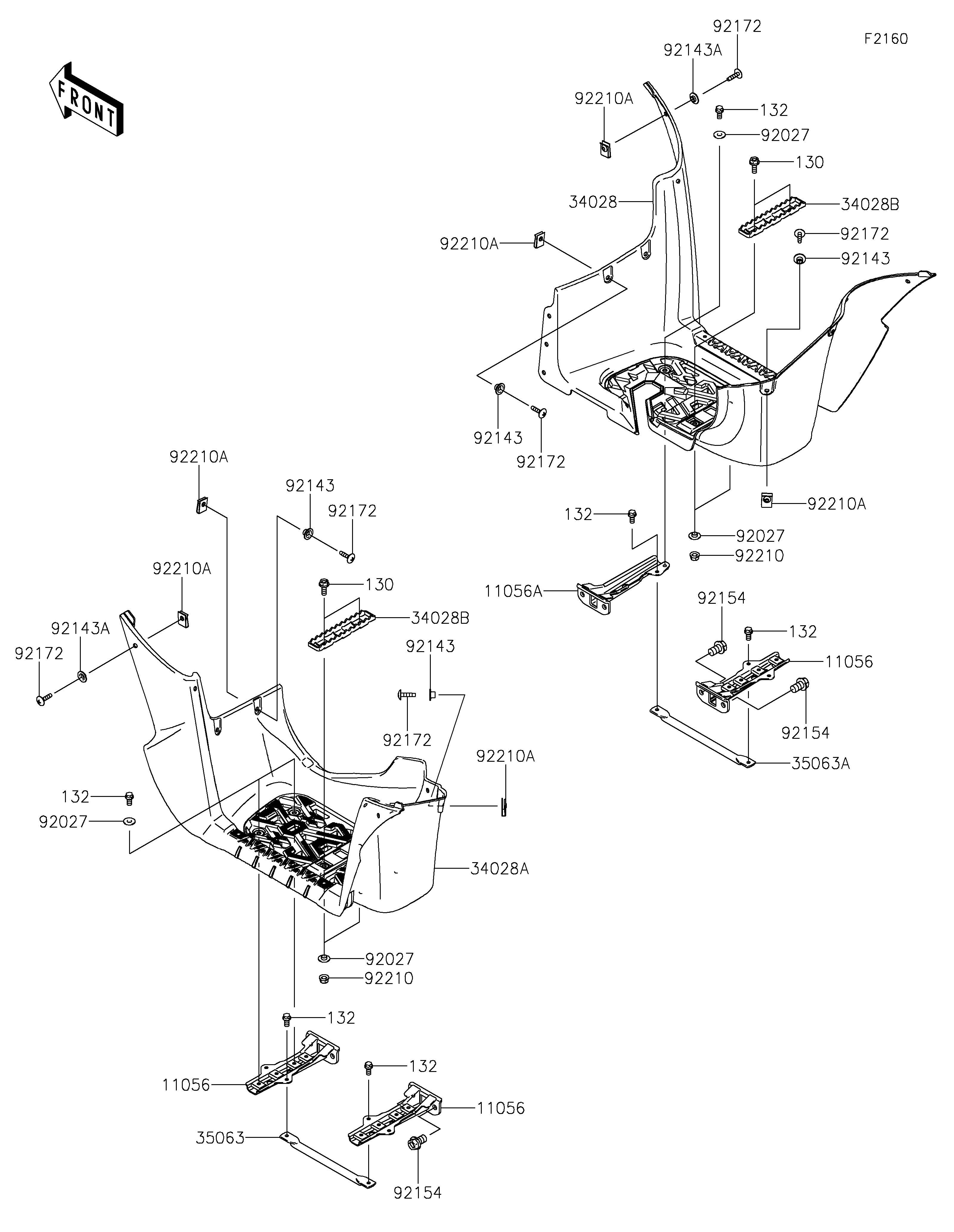

2021 BRUTE FORCE® 750 4x4i - Footrests
11056
11056
11056
11056A
34028
34028A
34028B
34028B
35063
35063A
92027
92027
92027
92027
92143
92143
92143
92143
92143A
92143A
92154
92154
92154
92172
92172
92172
92172
92172
92172
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
130
130
132
132
132
132
132
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FOOT BOARD | 11056 | 11056-1036 | 3 | ||
| BRACKET,FOOT BOARD | 11056A | 11056-1037 | 1 | ||
| STEP,FOOT BOARD,RH,F.BLACK | 34028 | 34028-0055-6Z | 1 | ||
| STEP,FOOT BOARD,LH,F.BLACK | 34028A | 34028-0146-6Z | 1 | ||
| STEP,FOOT PEG,F.BLACK | 34028B | 34028-1487-21 | 2 | ||
| STAY,STEP,LH | 35063 | 35063-0394 | 1 | ||
| STAY,STEP,RH | 35063A | 35063-0395 | 1 | ||
| COLLAR | 92027 | 92027-4020 | 11 | ||
| COLLAR | 92143 | 92143-1057 | 4 | ||
| COLLAR | 92143A | 92143-1087 | 13 | ||
| BOLT,FLANGED,10X16 | 92154 | 92154-0760 | 8 | ||
| SCREW,TAPPING,6X20 | 92172 | 92172-0488 | 17 | ||
| NUT,LOCK,FLANGED,6MM | 92210 | 92210-0303 | 4 | ||
| NUT,LEAF SPRING,6MM | 92210A | 92210-0624 | 17 | ||
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 4 | ||
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 11 |
