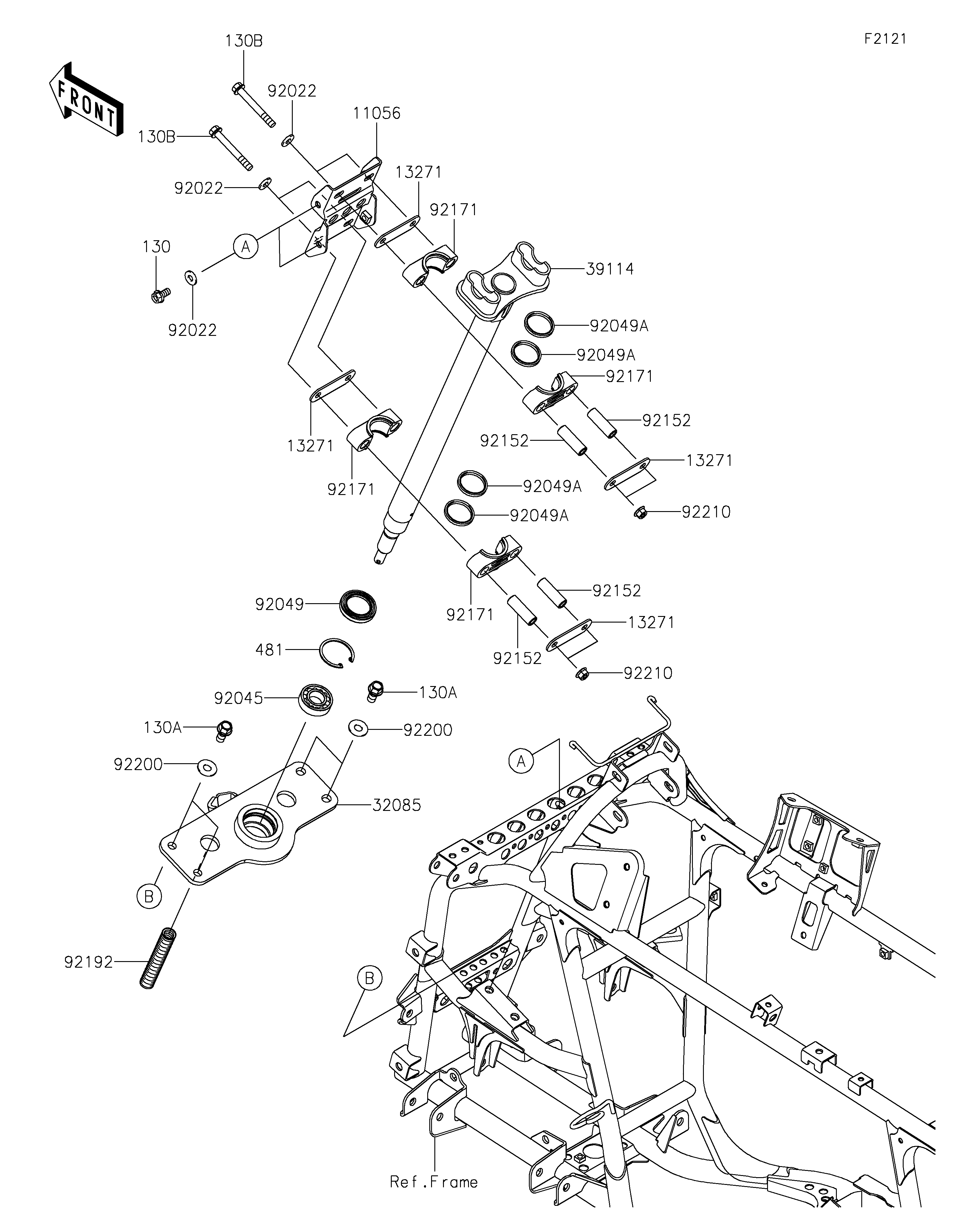

2021 BRUTE FORCE® 750 4x4i - Steering Shaft

DOWNLOAD PDF
SELECT A NEW PART
11056
13271
13271
13271
13271
32085
39114
92022
92022
92022
92045
92049
92049A
92049A
92049A
92049A
92152
92152
92152
92152
92171
92171
92171
92171
92192
92200
92200
92210
92210
130
130A
130A
130B
130B
481
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STRG,UPP 11056 11056-0284 1
PLATE,STEERING,CLAMP 13271 13271-7506 4
STOPPER,STRG 32085 32085-0200 1
SHAFT-COMP-STRG 39114 39114-0014 1
WASHER,8.2X19X2 92022 92022-1533 8
BEARING-BALL,60042RD 92045 92045-3705 1
SEAL-OIL,HTC 30X45X8 92049 92049-1575 1
SEAL-OIL,SR31.8X37.5X3.8LR 92049A 92049-7501 4
COLLAR,9.1X13.95X42 92152 92152-7501 4
CLAMP,STEERING 92171 92171-7501 4
TUBE,CORRUGATED,13X16.7X100 92192 92192-0938 1
WASHER,10.5X25X1.6 92200 92200-1595 4
NUT,FLANGED,LOCK,8MM 92210 92210-0493 4
BOLT-FLANGED,8X16 130 130BA0816 4
BOLT-FLANGED,10X20 130A 130BB1020 4
BOLT-FLANGED,8X65 130B 130CA0865 4
CIRCLIP-TYPE-C,42MM 481 481J4200 1
