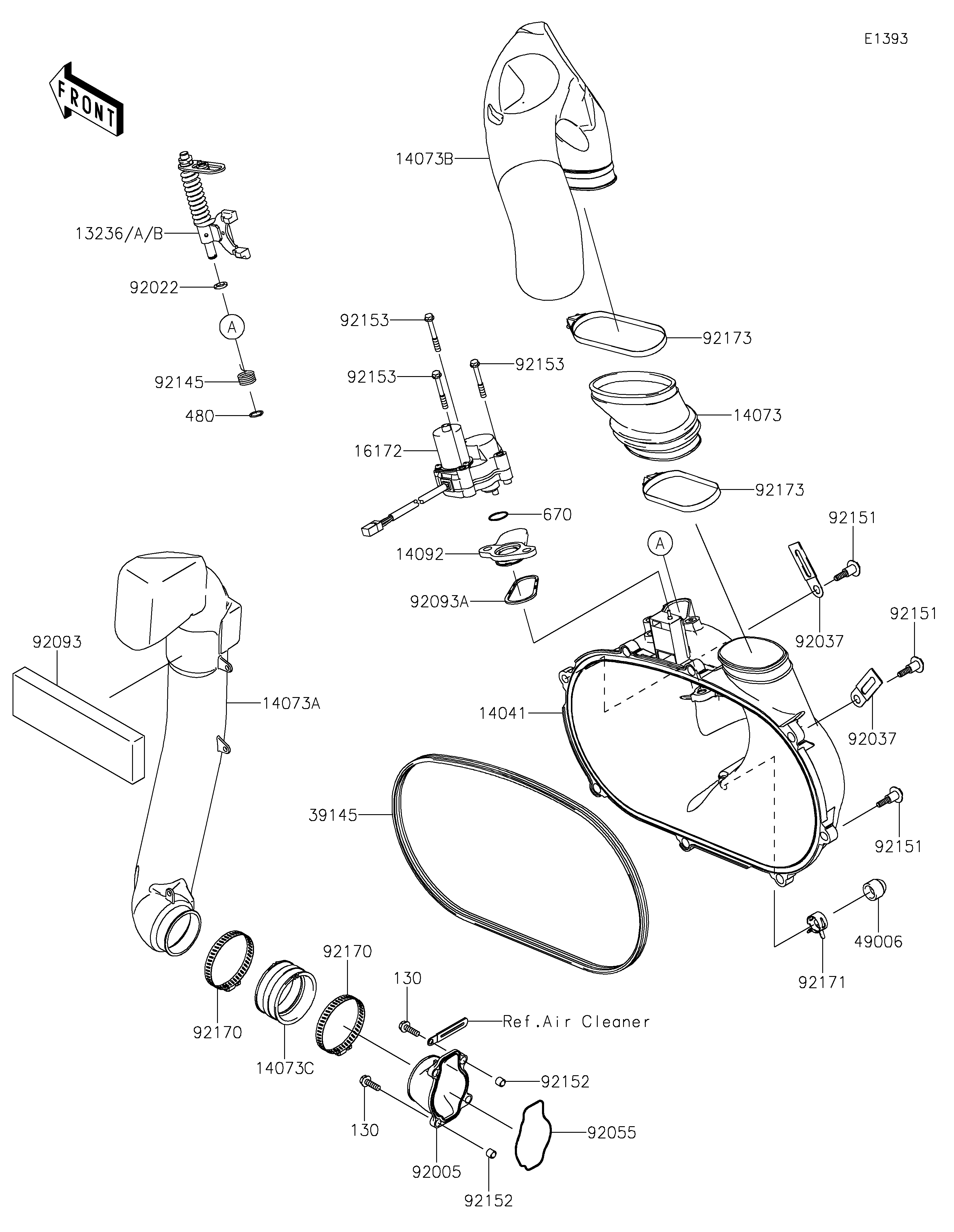

2021 BRUTE FORCE® 750 4x4i - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
13236
13236A
13236B
14041
14073
14073A
14073B
14073C
14092
16172
39145
49006
92005
92022
92037
92037
92055
92093
92093A
92145
92151
92151
92151
92152
92152
92153
92153
92153
92170
92170
92171
92173
92173
130
130
480
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP,YELLOW 13236 13236-0046 AR
LEVER-COMP,GREEN 13236A 13236-0047 AR
LEVER-COMP,PAINT LESS 13236B 13236-0048 1
COVER-COMP 14041 14041-0556 1
DUCT,EXHAUST JOINT 14073 14073-0028 1
DUCT,INTAKE 14073A 14073-0298 1
DUCT,EXHAUST 14073B 14073-0734 1
DUCT,JOINT 14073C 14073-1775 1
COVER 14092 14092-0780 1
ACTUATOR 16172 16172-0018 1
TRIM-SEAL 39145 39145-0702 1
BOOT,DRAIN 49006 49006-0560 1
FITTING 92005 92005-0718 1
WASHER,10.2X16X1 92022 92022-1829 1
CLAMP 92037 92037-1780 2
RING-O 92055 92055-1630 1
SEAL 92093 92093-0581 1
SEAL 92093A 92093-1548 1
SPRING 92145 92145-1567 1
BOLT,FLANGED,6X30 92151 92151-1686 8
COLLAR 92152 92152-1332 4
BOLT,6X47 92153 92153-0678 3
CLAMP 92170 92170-1764 2
CLAMP 92171 92171-0329 1
CLAMP 92173 92173-0260 2
BOLT-FLANGED,6X20 130 130CA0620 4
CIRCLIP-TYPE-C,10MM 480 480J1000 1
O RING 670 670D3022 1
