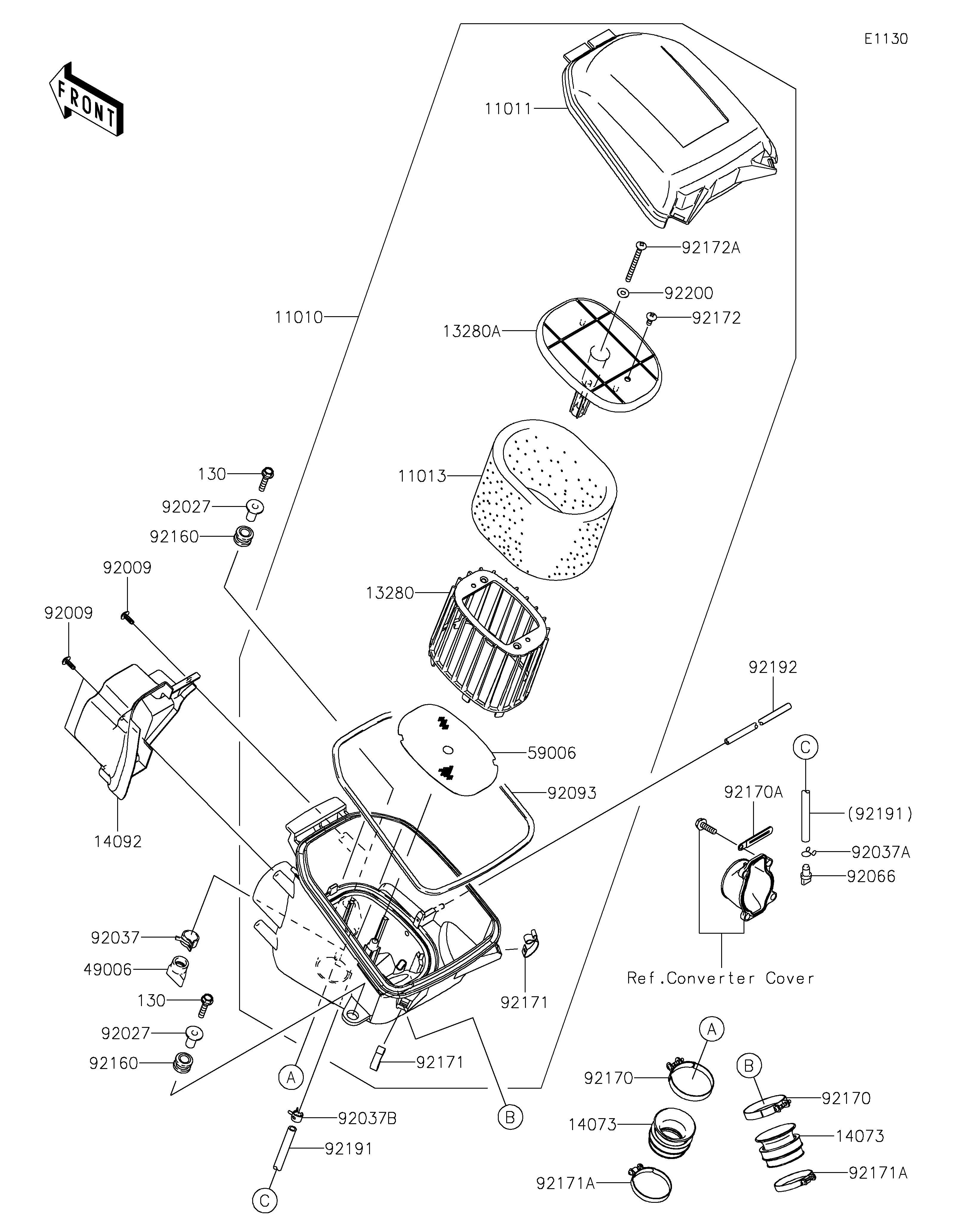

2021 BRUTE FORCE® 750 4x4i - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11011
11013
13280
13280A
14073
14073
14092
49006
59006
92009
92009
92027
92027
92037
92037A
92037B
92066
92093
92160
92160
92170
92170
92170A
92171
92171
92171A
92171A
92172
92172A
92191
92192
92200
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0784 1
CASE-AIR FILTER,UPP 11011 11011-0017 1
ELEMENT-AIR FILTER 11013 11013-0021 1
HOLDER 13280 13280-0232 1
HOLDER 13280A 13280-0233 1
DUCT 14073 14073-0160 2
COVER,INTAKE DUCT 14092 14092-0768 1
BOOT 49006 49006-1292 1
ARRESTER-FLAME 59006 59006-0015 1
SCREW,TAPPING 92009 92009-1113 3
COLLAR,L=21 92027 92027-195 2
CLAMP,HOSE CLIP 92037 92037-1460 1
CLAMP,TUBE 92037A 92037-147 1
CLAMP,TUBE 92037B 92037-1505 1
PLUG,DRAIN 92066 92066-1211 1
SEAL 92093 92093-0083 1
DAMPER 92160 92160-1594 2
CLAMP 92170 92170-1448 2
CLAMP 92170A 92170-1514 1
CLAMP 92171 92171-0225 2
CLAMP 92171A 92171-0722 2
SCREW 92172 92172-0297 1
SCREW 92172A 92172-0300 1
TUBE,7X11X470 92191 92191-1531 1
TUBE 92192 92192-0449 1
WASHER 92200 92200-0364 1
BOLT-FLANGED,6X30 130 130BA0630 2
