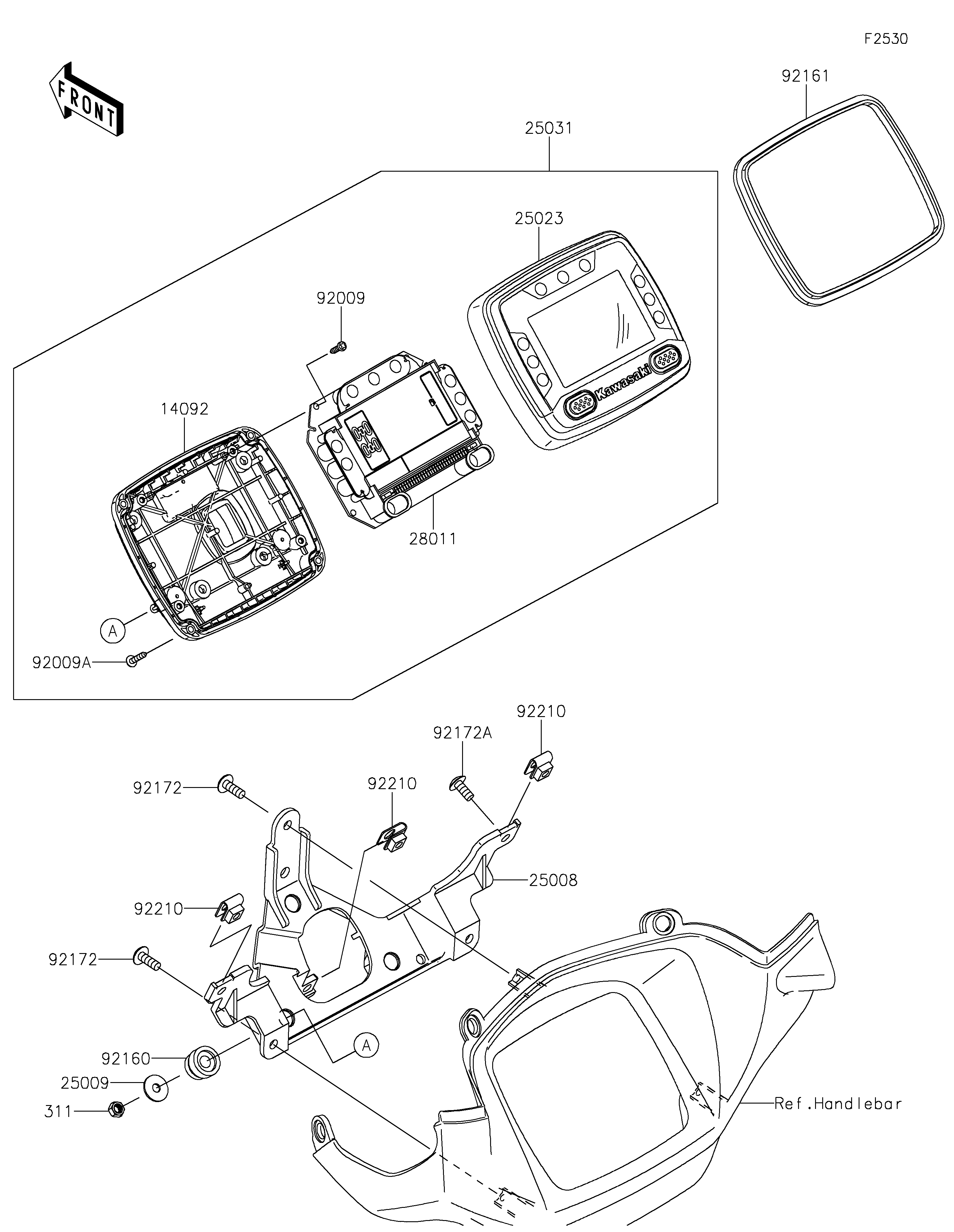

2021 BRUTE FORCE® 750 4x4i EPS CAMO - Meter(s)
14092
25008
25009
25023
25031
28011
92009
92009A
92160
92161
92172
92172
92172A
92210
92210
92210
311
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,LWR CASE | 14092 | 14092-0179 | 1 | ||
| BRACKET-METER | 25008 | 25008-0034 | 1 | ||
| WASHER,5.2X16X1.2 | 25009 | 25009-004 | 3 | ||
| COVER-METER CASE,UPP | 25023 | 25023-0069 | 1 | ||
| METER-ASSY,LCD | 25031 | 25031-0473 | 1 | ||
| METER,LCD | 28011 | 28011-0603 | 1 | ||
| SCREW,3X12 | 92009 | 92009-1326 | 4 | ||
| SCREW,TAPPING,3X16 | 92009A | 92009-1391 | 4 | ||
| DAMPER | 92160 | 92160-1460 | 3 | ||
| DAMPER,METER | 92161 | 92161-0906 | 1 | ||
| SCREW,TAPPING,5X14 | 92172 | 92172-0265 | 3 | ||
| SCREW,5X12 | 92172A | 92172-0806 | 3 | ||
| NUT,5MM | 92210 | 92210-0899 | 3 | ||
| NUT-HEX,5MM | 311 | 311AA0500 | 3 |
