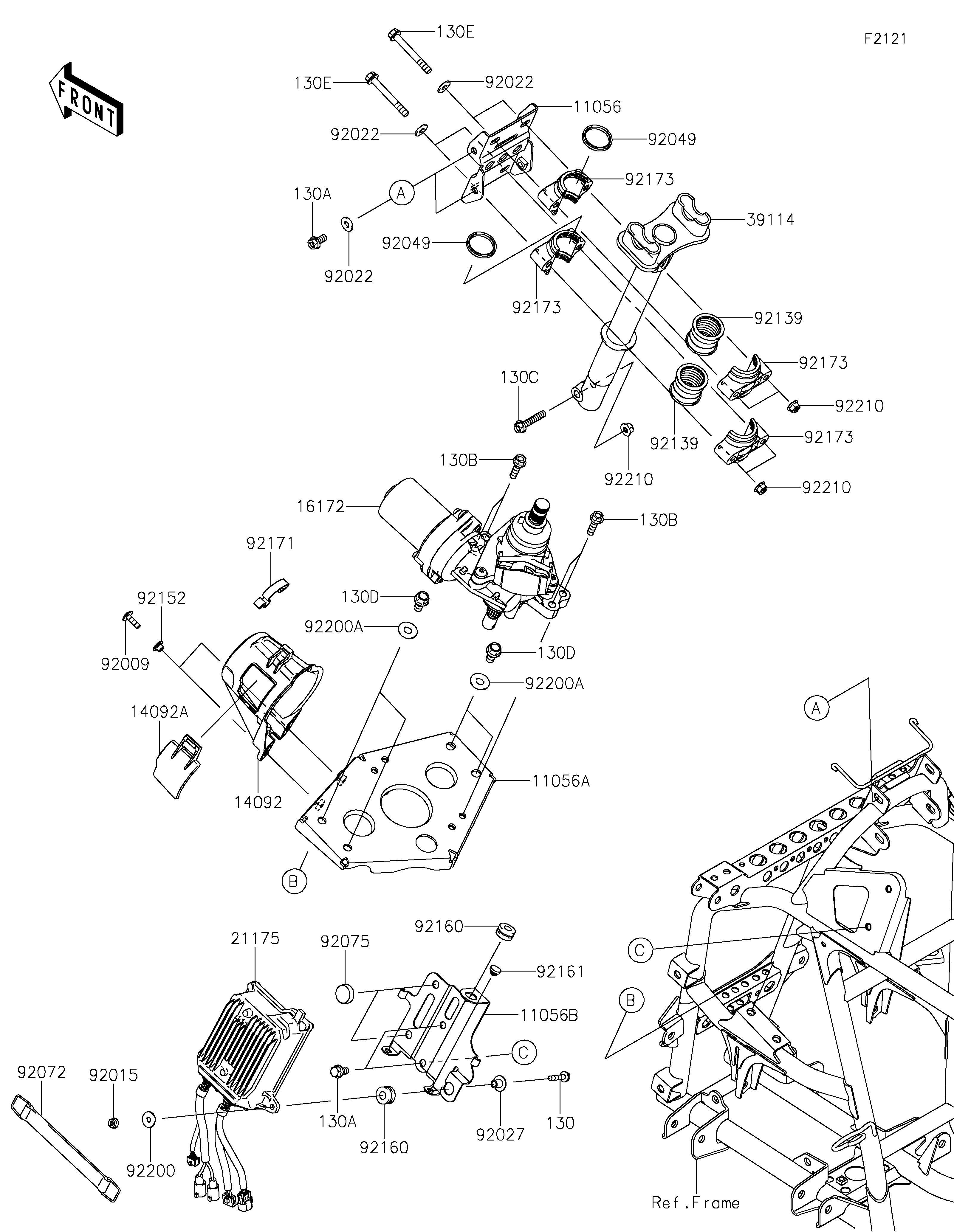

2021 BRUTE FORCE® 750 4x4i EPS CAMO - Steering Shaft

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
14092
14092A
16172
21175
39114
92009
92015
92022
92022
92022
92027
92049
92049
92072
92075
92139
92139
92152
92160
92160
92161
92171
92173
92173
92173
92173
92200
92200A
92200A
92210
92210
92210
130
130A
130A
130B
130B
130C
130D
130D
130E
130E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STRG,UPP 11056 11056-0284 1
BRACKET,EPS BODY FIT 11056A 11056-0285 1
BRACKET,EPS ECU 11056B 11056-0290 1
COVER,EPS 14092 14092-0260 1
COVER,EPS,CAP 14092A 14092-0261 1
ACTUATOR,EPS 16172 16172-0047 1
CONTROL UNIT-ELECTRONIC,EPS 21175 21175-0752 1
SHAFT-COMP-STRG 39114 39114-0309 1
SCREW,6X20 92009 92009-1289 2
NUT,FLANGED,6MM 92015 92015-1367 1
WASHER,8.2X19X2 92022 92022-1533 8
COLLAR,L=12 92027 92027-1062 1
SEAL-OIL,SR31.8X37.5X3.8LR 92049 92049-7501 2
BAND,BATTERY 92072 92072-3879 1
DAMPER,9X24X14 92075 92075-281 2
BUSHING,STRG SHAFT 92139 92139-0763 2
COLLAR,6.3X8.3X7.2 92152 92152-1865 2
DAMPER 92160 92160-1895 2
DAMPER 92161 92161-0586 2
CLAMP 92171 92171-0225 1
CLAMP,STRG SHAFT 92173 92173-0746 4
WASHER,6.5X20X1.6 92200 92200-0283 1
WASHER,10.5X25X1.6 92200A 92200-1595 4
NUT,FLANGED,LOCK,8MM 92210 92210-0493 5
BOLT-FLANGED,6X30 130 130BA0630 1
BOLT-FLANGED,8X16 130A 130BA0816 6
BOLT-FLANGED,8X30 130B 130BA0830 4
BOLT-FLANGED,8X40 130C 130BA0840 1
BOLT-FLANGED,10X16 130D 130BA1016 4
BOLT-FLANGED,8X65 130E 130CA0865 4
