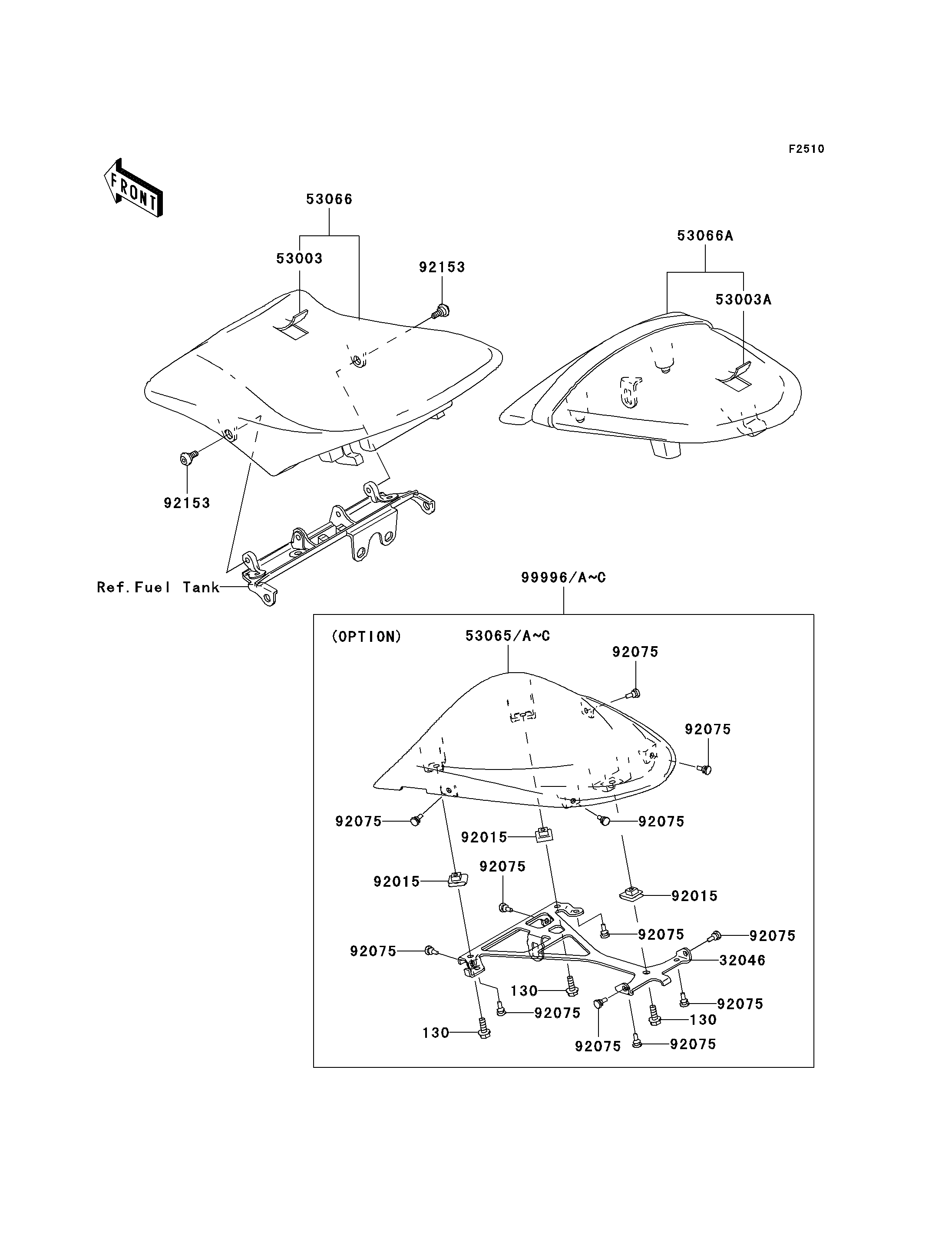

2005 Ninja® ZX™-6R - Seat

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
32046
53003
53003A
53065
53065A
53065B
53065C
53066
53066A
92015
92015
92015
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92153
92153
99996
99996A
99996B
99996C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,M6X16 130 130L0616 3 (OPTION)
BRACKET-SEAT,SEAT COVER 32046 32046-0064 1 (OPTION)
LEATHER,FRONT SEAT,BLACK 53003 53003-0039-MA 1
LEATHER,REAR SEAT,BLACK 53003A 53003-0040-MA 1
COVER SEAT,C.P.BLUE 53065 53065-0005-723 1 (OPTION)
COVER SEAT,P.M.RED 53065A 53065-0005-724 1 (OPTION)
COVER SEAT,M.F.R.TITANIUM 53065B 53065-0005-725 1 (OPTION)
COVER SEAT,L.GREEN 53065C 53065-0005-777 1 (OPTION)
SEAT-ASSY,FR,BLACK 53066 53066-0084-MA 1
SEAT-ASSY,RR,W/BAND,BLACK 53066A 53066-0099-MA 1
NUT,CLAMP,6MM 92015 92015-1531 3 (OPTION)
DAMPER 92075 92075-1808 12 (OPTION)
BOLT,SOCKET,6MM 92153 92153-0489 2
KIT,SINGLE SEAT COVER,C.P.BLUE 99996 99996-1348-723 1 (OPTION)
KIT,SINGLE SEAT COVER,P.M.RED 99996A 99996-1348-724 1 (OPTION)
KIT,SINGLE SEAT COVER,TITANIUM 99996B 99996-1348-725 1 (OPTION)
KIT,SINGLE SEAT COVER,L.GREEN 99996C 99996-1348-777 1 (OPTION)
