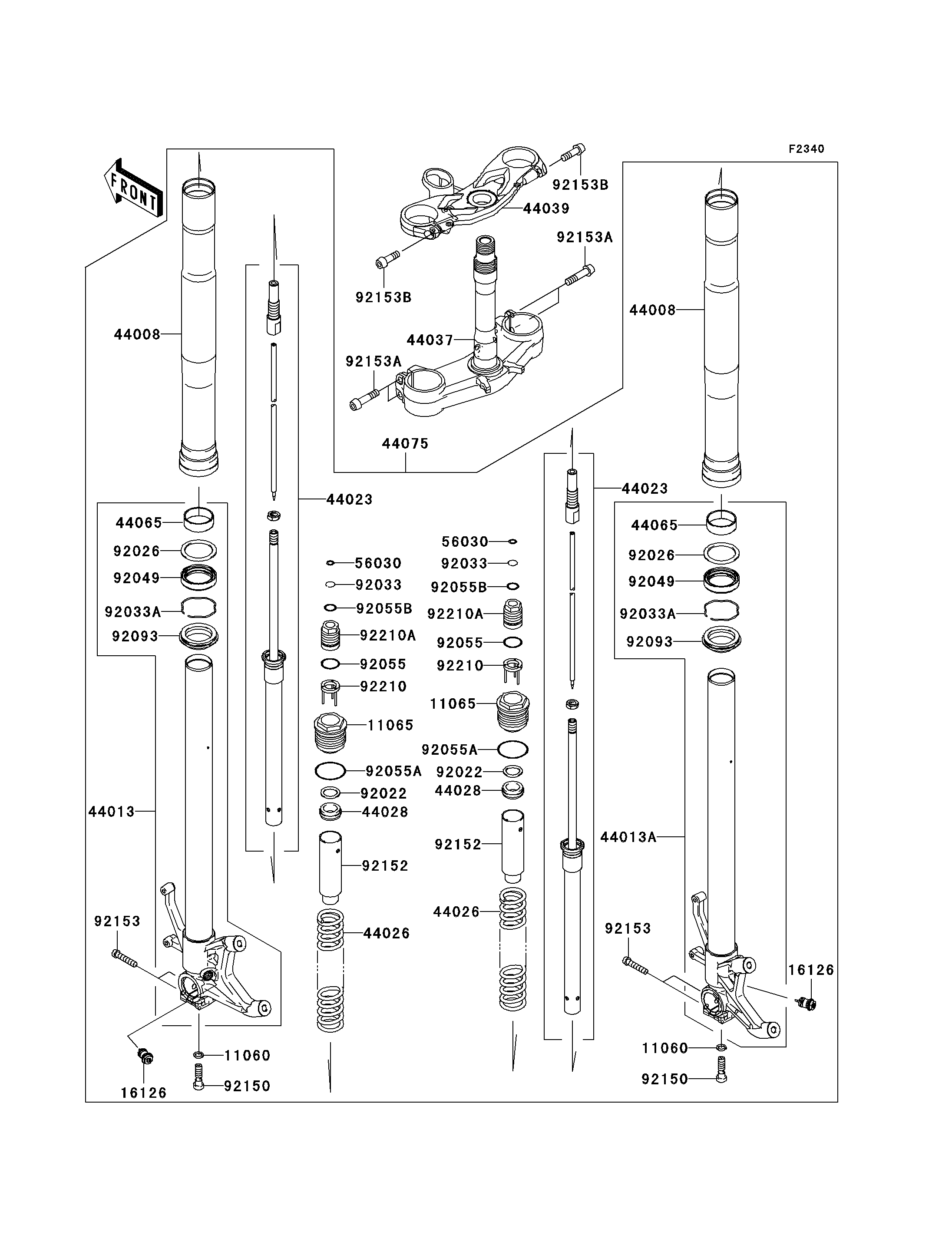

2005 Ninja® ZX™-6R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11065
11065
16126
16126
44008
44008
44013
44013A
44023
44023
44026
44026
44028
44028
44037
44039
44065
44065
44075
56030
56030
92022
92022
92026
92026
92033
92033
92033A
92033A
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92093
92093
92150
92150
92152
92152
92153
92153
92153A
92153A
92153B
92153B
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11060 11060-1180 2
CAP 11065 11065-0090 2
VALVE 16126 16126-0016 2
PIPE-FORK OUTER 44008 44008-0012 2
PIPE-FORK INNER,LH 44013 44013-0022 1
PIPE-FORK INNER,RH 44013A 44013-0023 1
CYLINDER-SET-FORK 44023 44023-0020 2
SPRING-FRONT FORK 44026 44026-0051 2
GUIDE-FORK SPRING 44028 44028-1083 2
HOLDER-FORK UNDER 44037 44037-0020 1
HOLDER-FORK UPPER 44039 44039-0018 1
BUSHING-FRONT FORK,GUIDE 44065 44065-0001 2
DAMPER-SET-FORK 44075 44075-0056 1
LABEL 56030 56030-0006 2
WASHER,SPRING SEAT 92022 92022-1713 2
SPACER 92026 92026-0070 2
RING-SNAP 92033 92033-0002 2
RING-SNAP 92033A 92033-1222 2
SEAL-OIL 92049 92049-0058 2
RING-O 92055 92055-0003 2
RING-O,FORK CAP 92055A 92055-1497 2
RING-O 92055B 92055-1498 2
SEAL,FORK 92093 92093-1268 2
BOLT,FORK CYLINDER 92150 92150-1514 2
COLLAR 92152 92152-0263 2
BOLT 92153 92153-0853 4
BOLT 92153A 92153-0854 4
BOLT 92153B 92153-0855 2
SPRING ADJUST PLATE 92210 92210-0019 2
NUT 92210A 92210-0189 2
