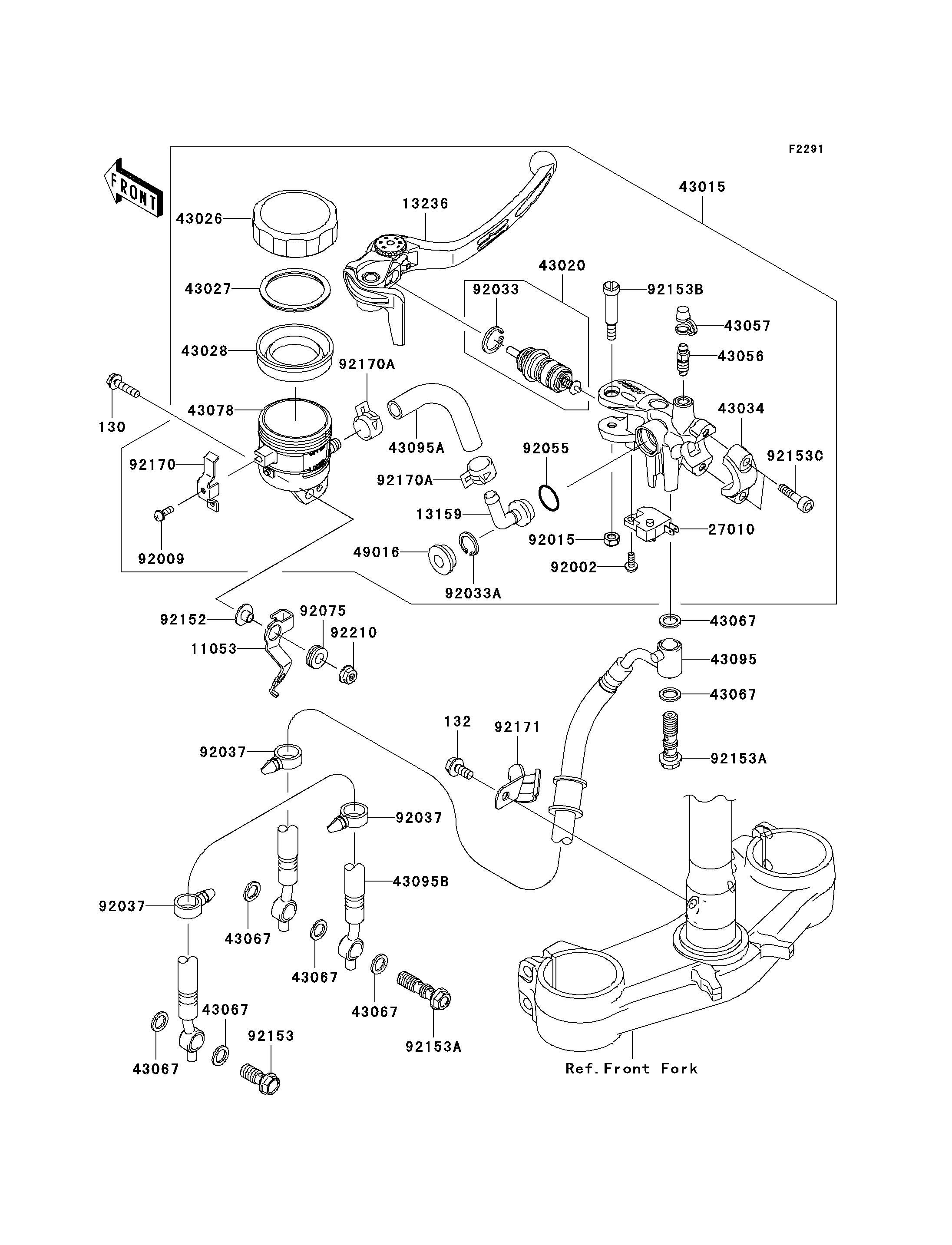

2005 Ninja® ZX™-6R - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
132
11053
13159
13236
27010
43015
43020
43026
43027
43028
43034
43056
43057
43067
43067
43067
43067
43067
43067
43067
43078
43095
43095A
43095B
49016
92002
92009
92015
92033
92033A
92037
92037
92037
92055
92075
92152
92153
92153A
92153A
92153B
92153C
92170
92170A
92170A
92171
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,M5X20 130 130L0520 1
BOLT-FLANGED-SMALL,M6X12 132 132J0612 1
BRACKET,RESERVOIR TANK,FR 11053 11053-1545 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,FRONT BRAKE 13236 13236-0083 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0032 1
PISTON-COMP-BRAKE 43020 43020-0001 1
CAP-BRAKE 43026 43026-0005 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0002 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
WASHER,10.5X15X1.5 43067 43067-001 7
RESERVOIR 43078 43078-1099 1
HOSE-BRAKE,FR 43095 43095-0069 1
HOSE-BRAKE,FR MASTER CYLINDER 43095A 43095-0081 1
HOSE-BRAKE,FR 43095B 43095-0125 1
COVER-SEAL 49016 49016-1147 1
BOLT,SCREW,4X12 92002 92002-1323 1
SCREW 92009 92009-1570 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
RING-SNAP 92033 92033-0034 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP,HOSE 92037 92037-1827 3
RING-O,MASTER CYLINDER 92055 92055-1251 1
DAMPER 92075 92075-161 1
COLLAR 92152 92152-0017 1
BOLT,OIL,L=23 92153 92153-0627 1
BOLT,OIL,L=37 92153A 92153-0628 2
BOLT,LEVER 92153B 92153-0868 1
BOLT 92153C 92153-0911 2
CLAMP 92170 92170-1090 1
CLAMP,HOSE 92170A 92170-1091 2
CLAMP,BRAKE HOSE 92171 92171-0406 1
NUT,FLANGED,5MM 92210 92210-0007 1
