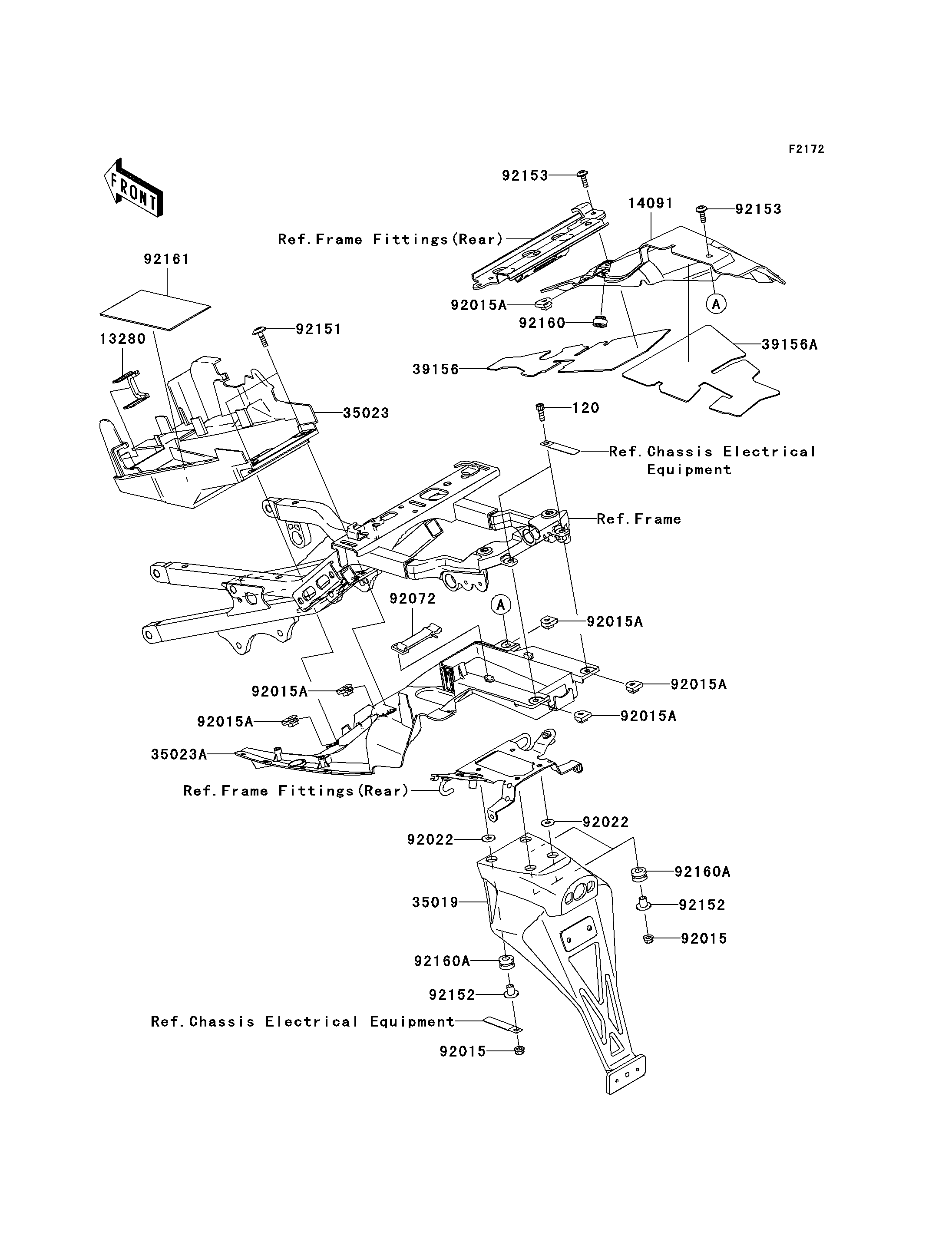

2005 Ninja® ZX™-6R - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
120
13280
14091
35019
35023
35023A
39156
39156A
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92072
92151
92152
92152
92153
92153
92160
92160A
92160A
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,M6X18 120 120S0618 2
HOLDER,MAGNETIC SWITCH 13280 13280-0122 1
COVER,HEAT GUARD 14091 14091-0336 1
FLAP 35019 35019-0020 1
FENDER-REAR,FR 35023 35023-0038 1
FENDER-REAR,RR 35023A 35023-0043 1
PAD,JOINT PIPE COVER,FR 39156 39156-0089 1
PAD,JOINT PIPE COVER,RR 39156A 39156-0090 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 4
NUT,CLIP,6MM 92015A 92015-1904 6
WASHER,7X18X1.2 92022 92022-1545 AR
BAND 92072 92072-1085 1
BOLT,6X22 92151 92151-1265 2
COLLAR 92152 92152-1074 4
BOLT,6X18 92153 92153-0816 2
DAMPER 92160 92160-1041 1
DAMPER 92160A 92160-1167 4
DAMPER,BATTERY 92161 92161-0243 1
