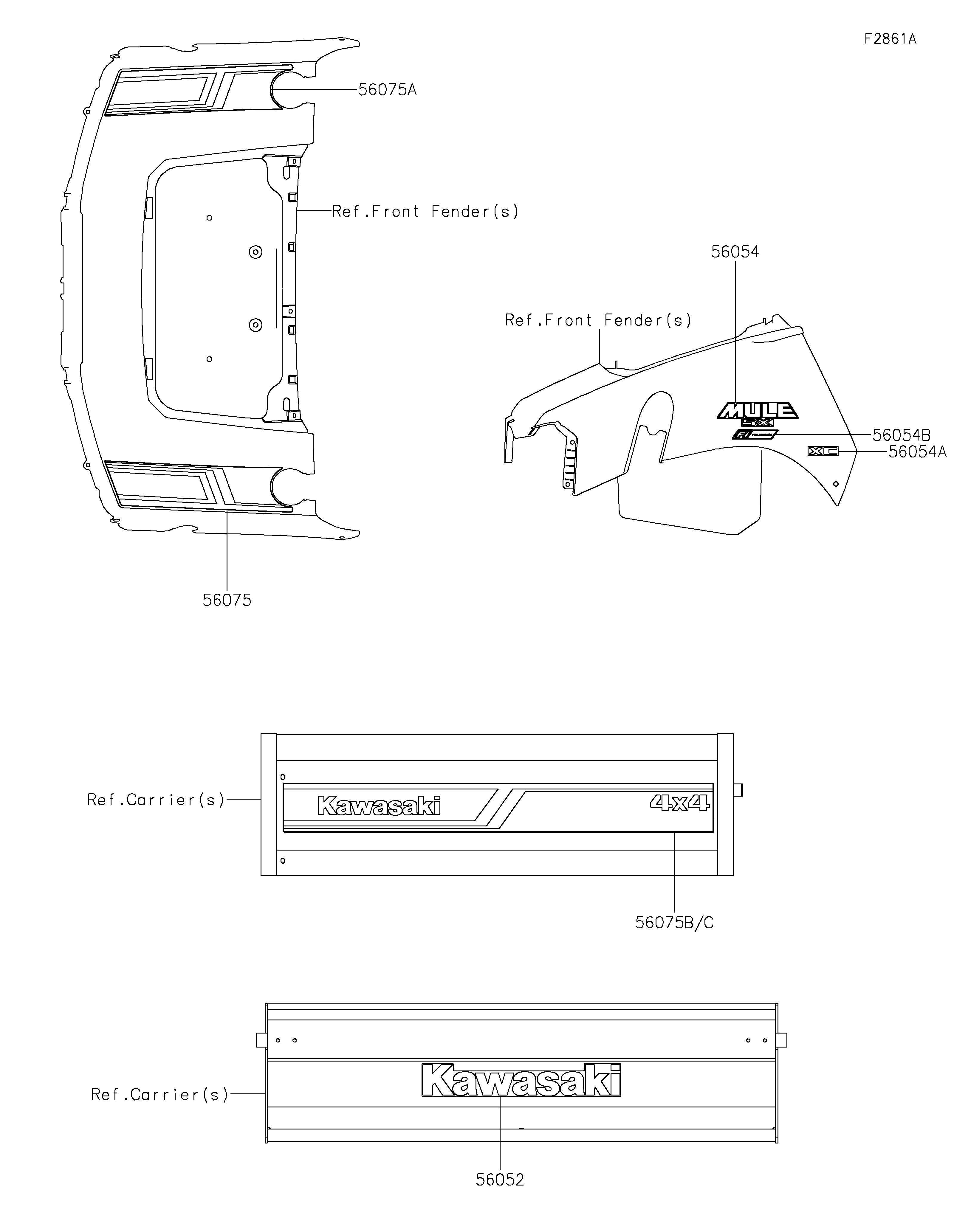

2020 MULE SX™ 4x4 XC FI - Decals(Green)(RLF/RLS)(US)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56052 | 56052-1809 | 1 | _________________________________________US | |
| MARK,FR FENDER,MULE SX | 56054 | 56054-2063 | 2 | _________________________________________US | |
| MARK,FR FENDER,XC | 56054A | 56054-2064 | 2 | _________________________________________US | |
| MARK,FR FENDER,FUEL INJECTION | 56054B | 56054-2459 | 2 | _________________________________________US | |
| PATTERN,FR FENDER,LH | 56075 | 56075-7974 | 1 | _________________________________________US | |
| PATTERN,FR FENDER,RH | 56075A | 56075-7975 | 1 | _________________________________________US | |
| PATTERN,SIDE PLATE,LH | 56075B | 56075-7976 | 1 | _________________________________________US | |
| PATTERN,SIDE PLATE,RH | 56075C | 56075-7977 | 1 | _________________________________________US |
| MARK,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________US |
| MARK,FR FENDER,MULE SX | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________US |
| MARK,FR FENDER,XC | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________US |
| MARK,FR FENDER,FUEL INJECTION | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________US |
| PATTERN,FR FENDER,LH | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________US |
| PATTERN,FR FENDER,RH | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________US |
| PATTERN,SIDE PLATE,LH | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________US |
| PATTERN,SIDE PLATE,RH | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________US |
