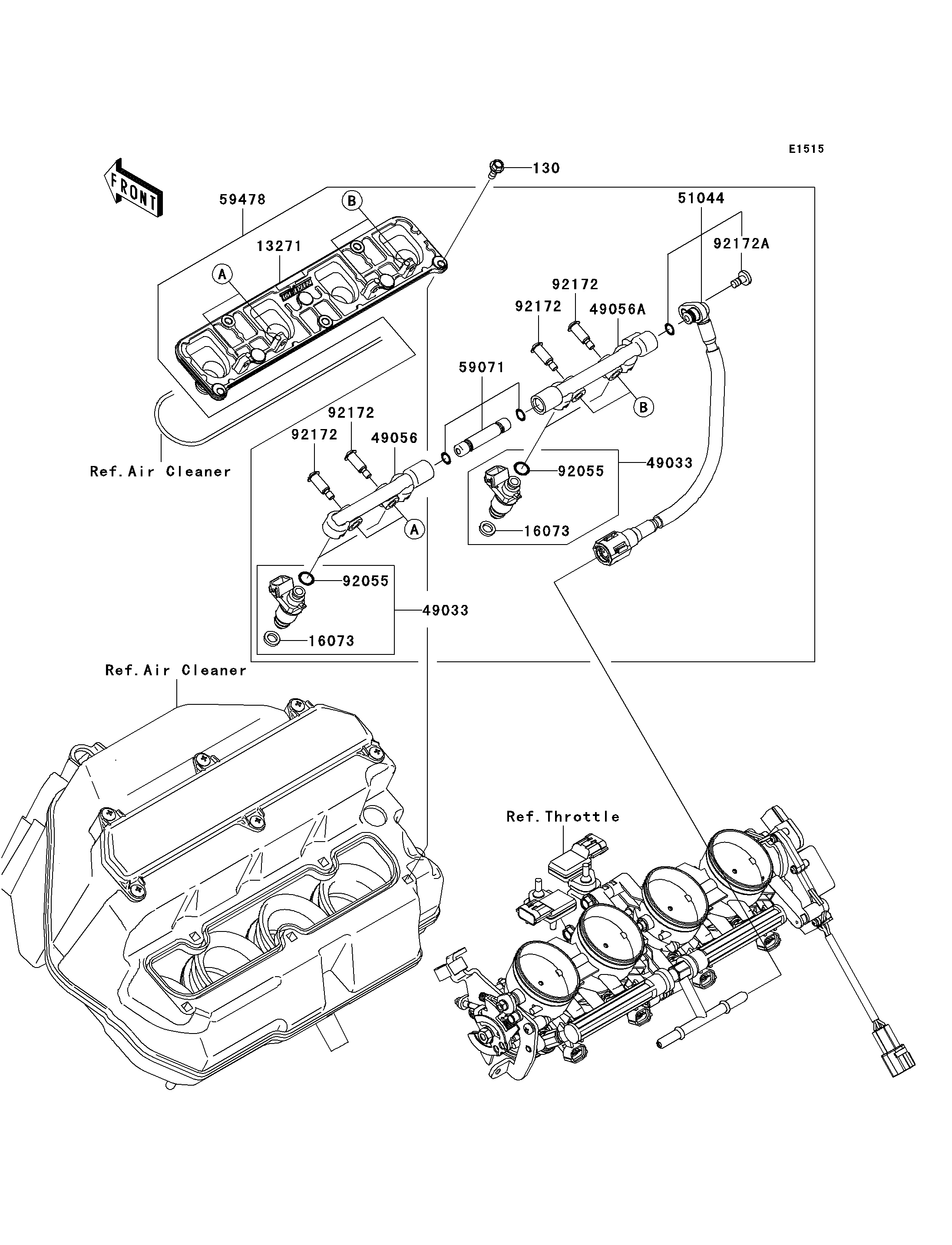

2005 Ninja® ZX™-6R - Top Feed Injecter
130
13271
16073
16073
49033
49033
49056
49056A
51044
59071
59478
92055
92055
92172
92172
92172
92172
92172A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,M5X14 | 130 | 130J0514 | 5 | ||
| PLATE | 13271 | 13271-0418 | 1 | ||
| INSULATOR | 16073 | 16073-0010 | 4 | ||
| NOZZLE-INJECTION,SEAL&RING SET | 49033 | 49033-0009 | 4 | ||
| PIPE-INJECTION | 49056 | 49056-0009 | 1 | ||
| PIPE-INJECTION | 49056A | 49056-0010 | 1 | ||
| TUBE-ASSY | 51044 | 51044-0020 | 1 | ||
| JOINT | 59071 | 59071-0030 | 1 | ||
| NOZZLE-ASSY | 59478 | 59478-0003 | 1 | ||
| RING-O | 92055 | 92055-0077 | 4 | ||
| SCREW,PIPE INJECTION | 92172 | 92172-0064 | 4 | ||
| SCREW | 92172A | 92172-0204 | 1 |
| BOLT-FLANGED,M5X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NOZZLE-INJECTION,SEAL&RING SET | |
| REF # | 49033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIPE-INJECTION | |
| REF # | 49056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-INJECTION | |
| REF # | 49056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY | |
| REF # | 51044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE-ASSY | |
| REF # | 59478 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,PIPE INJECTION | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
