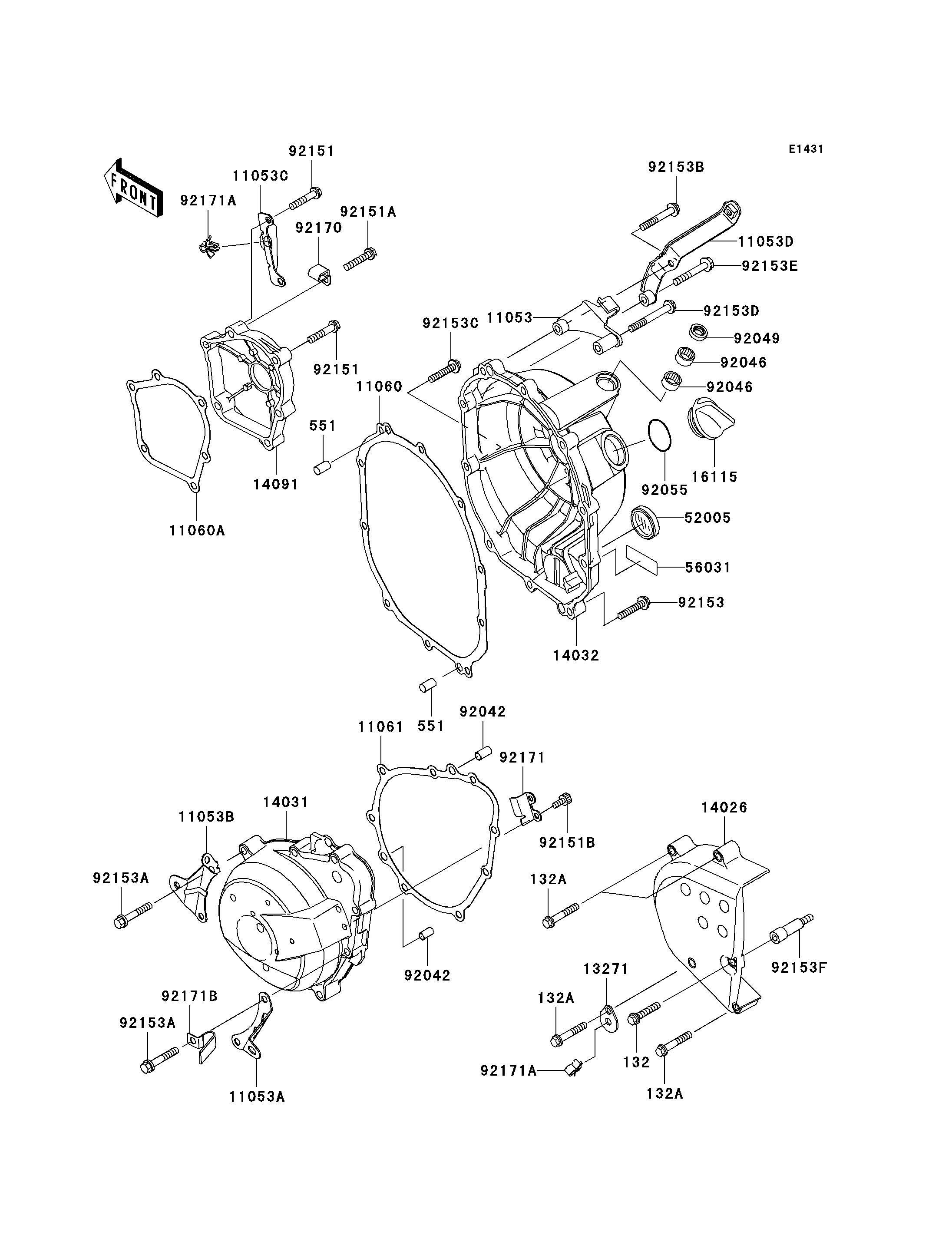

2005 Ninja® ZX™-6R - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
132A
551
551
11053
11053A
11053B
11053C
11053D
11060
11060A
11061
13271
14026
14031
14032
14091
16115
52005
56031
92042
92042
92046
92046
92049
92055
92151
92151
92151A
92151B
92153
92153A
92153A
92153B
92153C
92153D
92153E
92153F
92170
92171
92171A
92171A
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,M6X30 132 132J0630 1
BOLT-FLANGED-SMALL,M6X35 132A 132J0635 4
PIN-DOWEL,8X14 551 551A0814 2
BRACKET,CLUTCH WIRE 11053 11053-1353 1
BRACKET,GENERATOR COVER,RR 11053A 11053-1456 1
BRACKET,GENERATOR COVER,FR 11053B 11053-1677 1
BRACKET,PULSER COVER 11053C 11053-1699 1
BRACKET,CLUTCH COVER 11053D 11053-1700 1
GASKET,CLUTCH COVER 11060 11060-1853 1
GASKET,PULSING COVER 11060A 11060-1867 1
GASKET,GENERATOR COVER 11061 11061-0113 1
PLATE 13271 13271-0561 1
COVER-CHAIN 14026 14026-0018 1
COVER-GENERATOR 14031 14031-0032 1
COVER-CLUTCH 14032 14032-0037 1
COVER,PULSER 14091 14091-0319 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1057 1
LABEL-MANUAL,OIL CAPACITY 56031 56031-1895 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
BEARING-NEEDLE,HK1210 92046 92046-1010 2
SEAL-OIL,TB12205.5 92049 92049-1271 1
RING-O,31.7X2.4 92055 92055-049 1
BOLT,6X30 92151 92151-1134 5
BOLT,6X30 92151A 92151-1201 1
BOLT,SOCKET,5X12 92151B 92151-1365 2
BOLT,6X30 92153 92153-0608 6
BOLT,6X35 92153A 92153-0634 8
BOLT,6X40 92153B 92153-0635 1
BOLT,6X30 92153C 92153-0786 1
BOLT,6X50 92153D 92153-0830 1
BOLT,M6X40,YEL 92153E 92153-0929 1
BOLT,SOCKET 92153F 92153-0992 1
CLAMP 92170 92170-1577 1
CLAMP 92171 92171-0411 1
CLAMP 92171A 92171-0477 2
CLAMP 92171B 92171-1238 1
