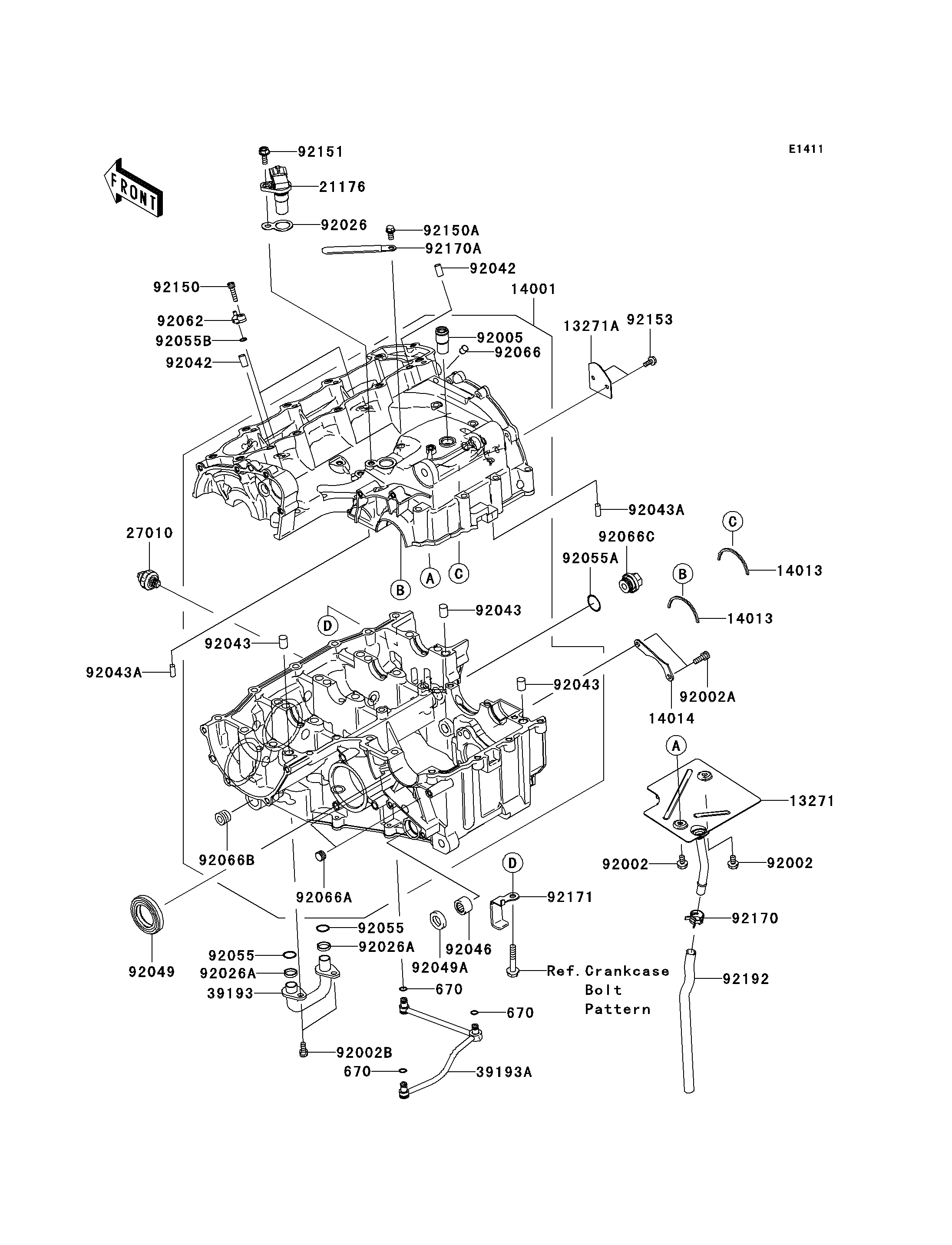

2005 Ninja® ZX™-6R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
670
670
670
13271
13271A
14001
14013
14013
14014
21176
27010
39193
39193A
92002
92002
92002A
92002B
92005
92026
92026A
92026A
92042
92042
92043
92043
92043
92043A
92043A
92046
92049
92049A
92055
92055
92055A
92055B
92062
92066
92066A
92066B
92066C
92150
92150A
92151
92153
92170
92170A
92171
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 670 670D1505 3
PLATE,BREATHER 13271 13271-0380 1
PLATE,SIDE BREATHER 13271A 13271-0381 1
SET-CRANKCASE 14001 14001-0053 1
RING-POSITION 14013 14013-004 2
PLATE-POSITION 14014 14014-0017 1
SENSOR,SPEED 21176 21176-0028 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE-OIL 39193 39193-0025 1
PIPE-OIL 39193A 39193-0026 1
BOLT,6X10 92002 92002-1449 2
BOLT,SOCKET,6X16 92002A 92002-1778 2
BOLT,SOCKET,6X12 92002B 92002-1796 2
FITTING,BREATHER 92005 92005-1238 1
SPACER 92026 92026-0058 1
SPACER,14.3X16.6X3.2 92026A 92026-0069 2
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN 92043 92043-1506 3
PIN,6X16 92043A 92043-1690 2
BEARING-NEEDLE,7E-HK1412 92046 92046-037 1
SEAL-OIL,TC32528 92049 92049-1307 1
SEAL-OIL,TC14245 92049A 92049-1520 1
RING-O,13.8X1.9 92055 92055-0065 2
RING-O,20X2 92055A 92055-1146 1
RING-O,5.5X1.5 92055B 92055-1343 2
NOZZLE,OIL JET 92062 92062-0006 2
PLUG,OIL LINE,7.2X8 92066 92066-1012 1
PLUG 92066A 92066-1110 2
PLUG,PT3/8X12 92066B 92066-1252 1
PLUG,MAIN GALLERY,18X9 92066C 92066-1394 1
BOLT,SOCKET,5X20 92150 92150-1019 2
BOLT,6X12 92150A 92150-1841 1
BOLT,FLANGED,M6X16 92151 92151-1774 1
BOLT,8X15 92153 92153-0753 2
CLAMP 92170 92170-1167 1
CLAMP 92170A 92170-1925 1
CLAMP,WATER HOSE 92171 92171-0473 1
TUBE,BREATHER 92192 92192-0155 1
