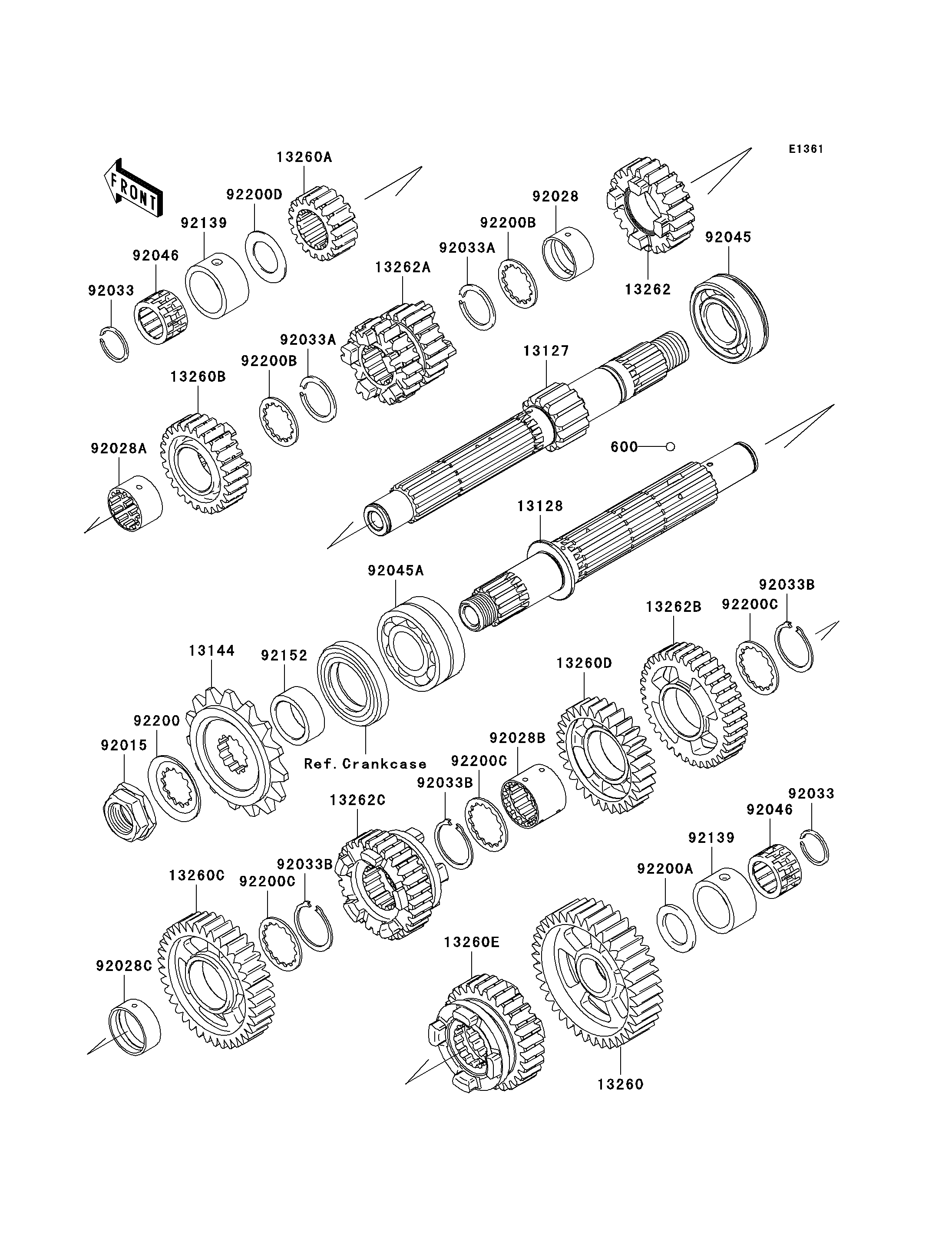

2005 Ninja® ZX™-6R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
600
13127
13128
13144
13260
13260A
13260B
13260C
13260D
13260E
13262
13262A
13262B
13262C
92015
92028
92028A
92028B
92028C
92033
92033
92033A
92033A
92033B
92033B
92033B
92045
92045A
92046
92046
92139
92139
92152
92200
92200A
92200B
92200B
92200C
92200C
92200C
92200D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,5/32" 600 600A0500 3
SHAFT-TRANSMISSION INPUT,13T 13127 13127-0021 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0018 1
SPROCKET-OUTPUT,15T 13144 13144-1324 1
GEAR,OUTPUT LOW,38T 13260 13260-1456 1
GEAR,INPUT 2ND,18T 13260A 13260-1987 1
GEAR,INPUT TOP,26T 13260B 13260-1990 1
GEAR,OUTPUT 2ND,37T 13260C 13260-1992 1
GEAR,OUTPUT 4TH,29T 13260D 13260-1994 1
GEAR,OUTPUT 5TH,28T 13260E 13260-1995 1
GEAR,INPUT,5TH,22T 13262 13262-0110 1
GEAR,INPUT 3RD&4TH,21T&20T 13262A 13262-0236 1
GEAR,OUTPUT 3RD,35T 13262B 13262-0237 1
GEAR,OUTPUT TOP,30T 13262C 13262-0254 1
NUT,20MM 92015 92015-1963 1
BUSHING,INPUT 5TH GEAR 92028 92028-1735 1
BUSHING,INPUT TOP GEAR 92028A 92028-1736 1
BUSHING,OUTPUT,3RD&4TH 92028B 92028-1738 1
BUSHING,OUTPUT,2ND 92028C 92028-1739 1
RING-SNAP,20MM 92033 92033-015 2
RING-SNAP,24MM 92033A 92033-026 2
RING-SNAP,25.9X30.6X1.2 92033B 92033-1037 3
BEARING-BALL,HR6205C3 92045 92045-0009 1
BEARING-BALL,83993SH2-CS 92045A 92045-035 1
BEARING-NEEDLE,BN502053 92046 92046-0014 2
BUSHING,27X34X18.6 92139 92139-1090 2
COLLAR,23X32X15 92152 92152-0280 1
WASHER 92200 92200-1065 1
WASHER,20.3X30X2.3 92200A 92200-1238 1
WASHER,25.2X31.0X1.5 92200B 92200-1239 2
WASHER,28.5X34.0X1.5 92200C 92200-1240 3
WASHER,20.3X33X1.0 92200D 92200-1613 1
