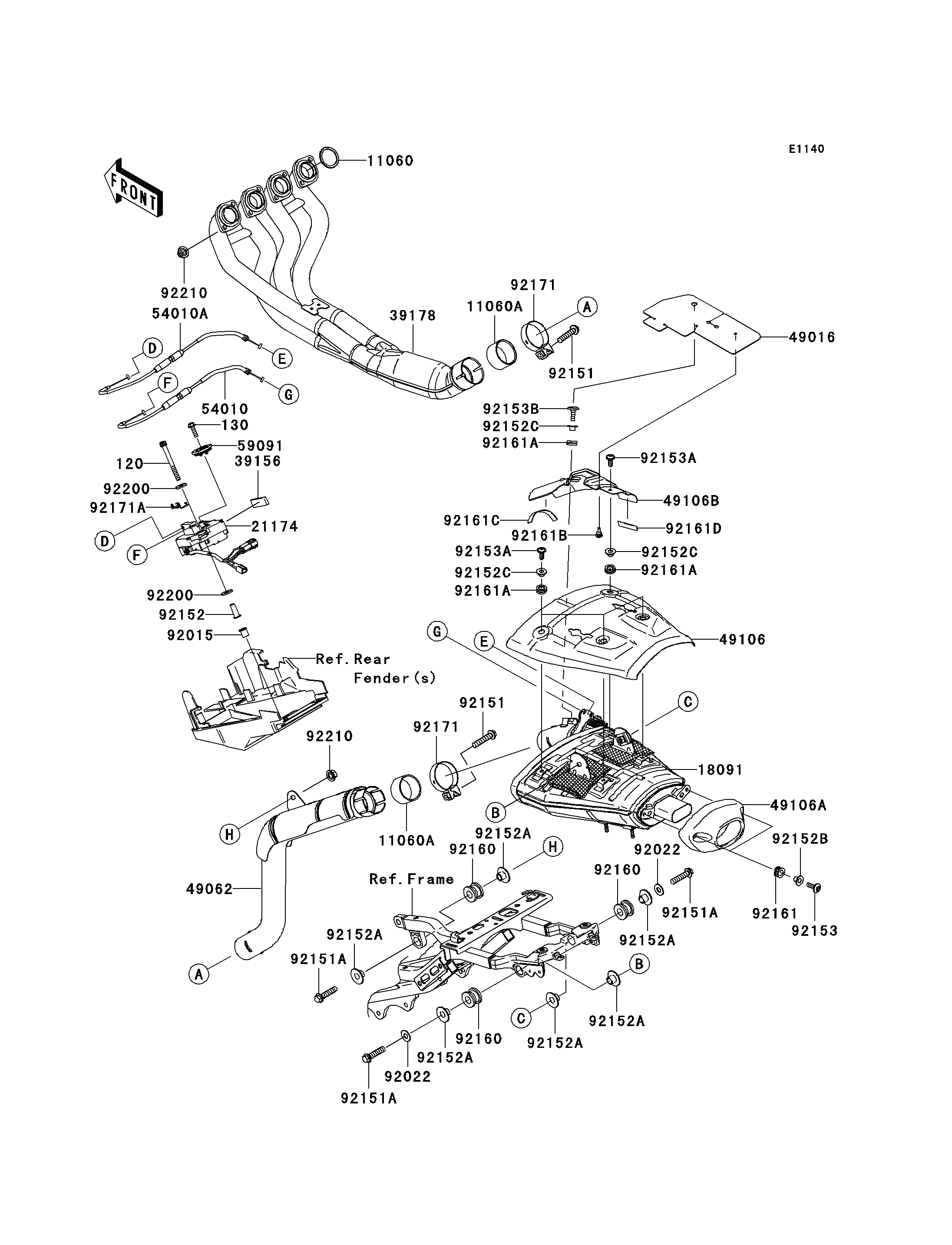

2005 Ninja® ZX™-6R - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
120
130
11060
11060A
11060A
18091
21174
39156
39178
49016
49062
49106
49106A
49106B
54010
54010A
59091
92015
92022
92022
92151
92151
92151A
92151A
92151A
92152
92152A
92152A
92152A
92152A
92152A
92152A
92152B
92152C
92152C
92152C
92153
92153A
92153A
92153B
92160
92160
92160
92161
92161A
92161A
92161A
92161B
92161C
92161D
92171
92171
92171A
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,M6X60 120 120W0660 2
BOLT-FLANGED,M5X18 130 130L0518 1
GASKET,EXHAUST PIPE 11060 11060-1203 4
GASKET,EXHAUST PIPE HOLDER 11060A 11060-1330 2
BODY-COMP-MUFFLER 18091 18091-0209 1
MOTOR-ELECTRIC 21174 21174-0003 1
PAD 39156 39156-0097 1
MANIFOLD-COMP-EXHAUST 39178 39178-0041 1
COVER-SEAL 49016 49016-0013 1
PIPE-COMP-EXHAUST 49062 49062-0027 1
COVER-MUFFLER,UPP 49106 49106-0022 1
COVER-MUFFLER,RR 49106A 49106-0023 1
COVER-MUFFLER 49106B 49106-0031 1
CABLE,OPEN 54010 54010-0022 1
CABLE,CLOSE 54010A 54010-0023 1
PULLEY 59091 59091-0003 1
NUT 92015 92015-1700 2
WASHER,8.5X19X1.2 92022 92022-3730 2
BOLT,FLANGED,8X40 92151 92151-1532 2
BOLT,FLANGED,8X35 92151A 92151-1537 3
COLLAR 92152 92152-0102 2
COLLAR 92152A 92152-0188 6
COLLAR 92152B 92152-0237 2
COLLAR 92152C 92152-0286 5
BOLT,6X18 92153 92153-0816 2
BOLT,8X16 92153A 92153-0817 4
BOLT,SOCKET,6X18 92153B 92153-0923 1
DAMPER 92160 92160-1116 3
DAMPER 92161 92161-0204 2
DAMPER 92161A 92161-0205 5
DAMPER 92161B 92161-0246 1
DAMPER 92161C 92161-0296 1
DAMPER 92161D 92161-0297 1
CLAMP 92171 92171-0133 2
CLAMP 92171A 92171-0292 1
WASHER,6.2X18X2 92200 92200-0216 4
NUT,8MM 92210 92210-0121 9
