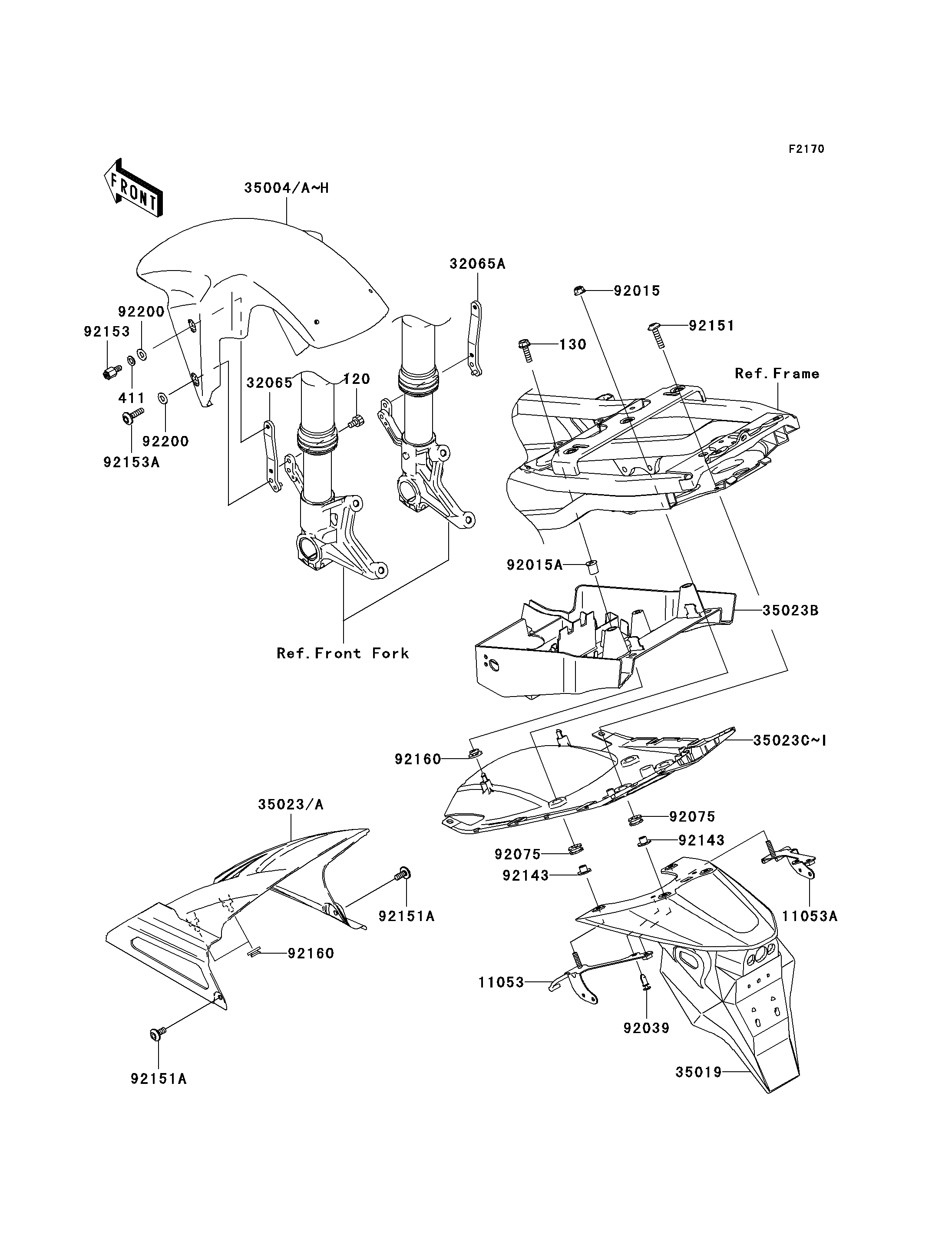

2003 Ninja® ZX™-6R - Fenders

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11053A
11053A
32065
32065
32065A
32065A
35004D
35004D
35004F
35004F
35004G
35004G
35004H
35004H
35019
35019
35023
35023
35023B
35023B
35023C
35023C
35023E
35023E
35023H
35023H
92015
92015
92015A
92015A
92039
92039
92075
92075
92075
92075
92143
92143
92143
92143
92151
92151
92151A
92151A
92151A
92151A
92153
92153
92153A
92153A
120
120
130
130
411
411
92160
92160
92160
92160
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FLAP,LH 11053 11053-0060 1
BRACKET,FLAP,RH 11053A 11053-0061 1
BRACKET-FENDER,LH 32065 32065-1376 1
BRACKET-FENDER,RH 32065A 32065-1377 1
FENDER-FRONT,BLACK 35004D 35004-1467-B5 1
FENDER-FRONT,P.RED 35004F 35004-1467-234 1
FENDER-FRONT,G.SILVER 35004G 35004-1467-474 1
FENDER-FRONT,L.GREEN 35004H 35004-1467-7F 1
FLAP,REAR FENDER 35019 35019-1400 1
FENDER-REAR,INNER,EBONY 35023 35023-1597-6C 1
FENDER-REAR,FR 35023B 35023-1600 1
FENDER-REAR,CNT,BLACK 35023C 35023-1601-B5 1
FENDER-REAR,CNT,P.RED 35023E 35023-1601-234 1
FENDER-REAR,CNT,G.SILVER 35023H 35023-1601-474 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
NUT,RUBBER,6MM 92015A 92015-1692 2
RIVET 92039 92039-1286 2
DAMPER 92075 92075-1634 4
COLLAR 92143 92143-1962 4
BOLT,SOCKET,6X25 92151 92151-1611 2
BOLT,SOCKET,6X14 92151A 92151-1654 2
BOLT,6MM 92153 92153-0335 2
BOLT,SOCKET,6X23 92153A 92153-1267 2
BOLT-SOCKET,6X10 120 120S0610 2
BOLT-FLANGED,6X20 130 130L0620 2
WASHER-PLAIN,6MM,BLACK 411 411F0600 2
DAMPER 92160 92160-1613 4
WASHER,6.5X14X1 92200 92200-1388 4
FENDER-FRONT,C.L.BLUE 35004E 35004-1467-E1 1 CAUS
FENDER-FRONT,L.GREEN 35004H 35004-1467-7F 1 CN
FENDER-REAR,INNER,L.GREEN 35023A 35023-1597-6W 1 CN
FENDER-REAR,CNT,C.L.BLUE 35023D 35023-1601-E1 1 CAUS
FENDER-REAR,CNT,L.GREEN 35023I 35023-1601-7F 1 CN
