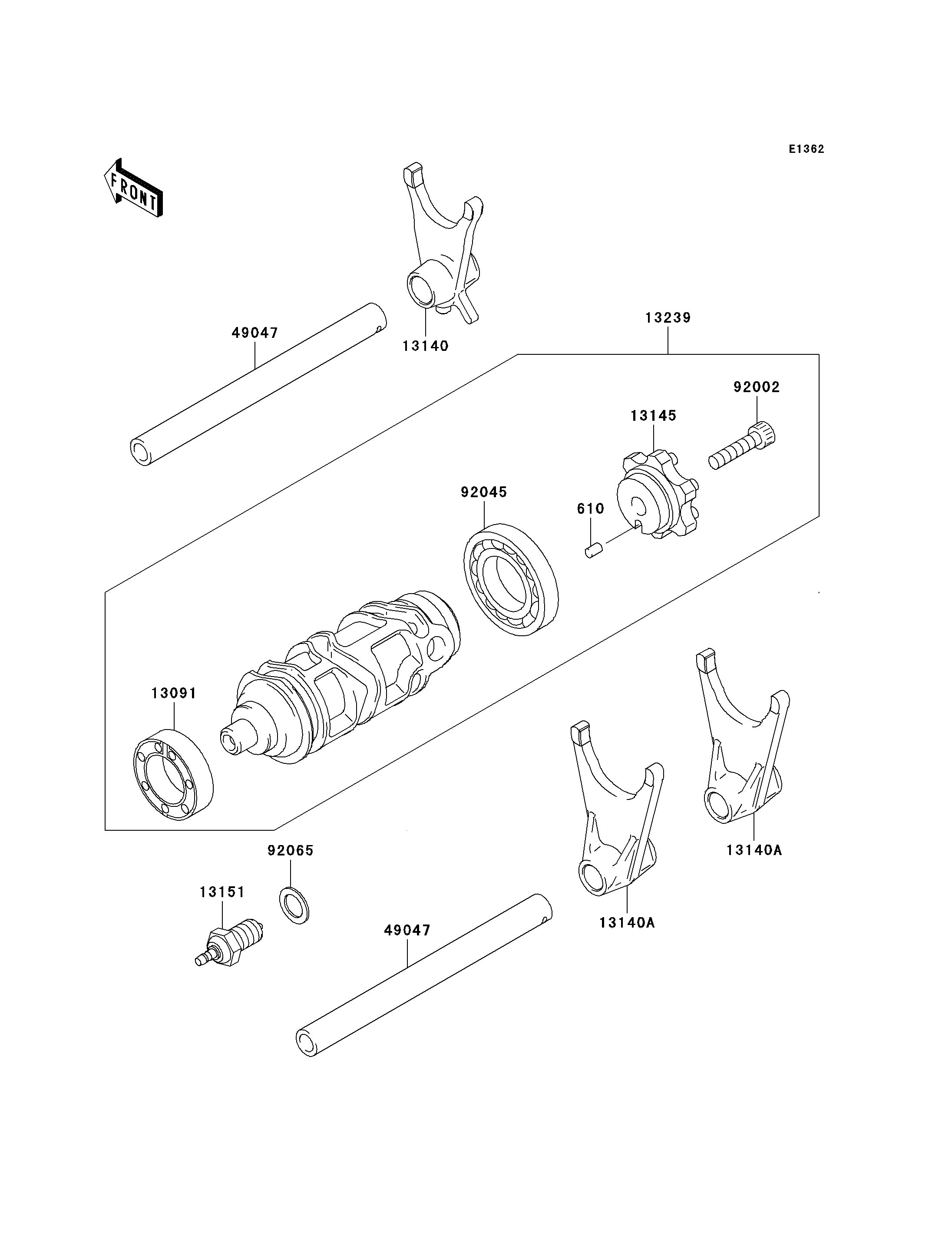

2003 Ninja® ZX™-6R - Gear Change Drum/Shift Fork(s)

DOWNLOAD PDF
SELECT A NEW PART
13091
13091
13140
13140
13140A
13140A
13140A
13140A
13145
13145
13151
13151
13239
13239
610
610
49047
49047
49047
49047
92002
92002
92045
92045
92065
92065
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-1791 1
FORK-SHIFT,INPUT 13140 13140-1231 1
FORK-SHIFT,OUTPUT 13140A 13140-1232 2
CAM-CHANGE DRUM 13145 13145-0002 1
SWITCH-COMP 13151 13151-1085 1
DRUM-ASSY-CHANGE 13239 13239-0005 1
ROLLER,4X6 610 610A0406 1
ROD-SHIFT 49047 49047-1095 2
BOLT,SOCKET,6X25 92002 92002-1696 1
BEARING-BALL,16005(NTN) 92045 92045-1045 1
GASKET,10.5X16X1 92065 92065-058 1
