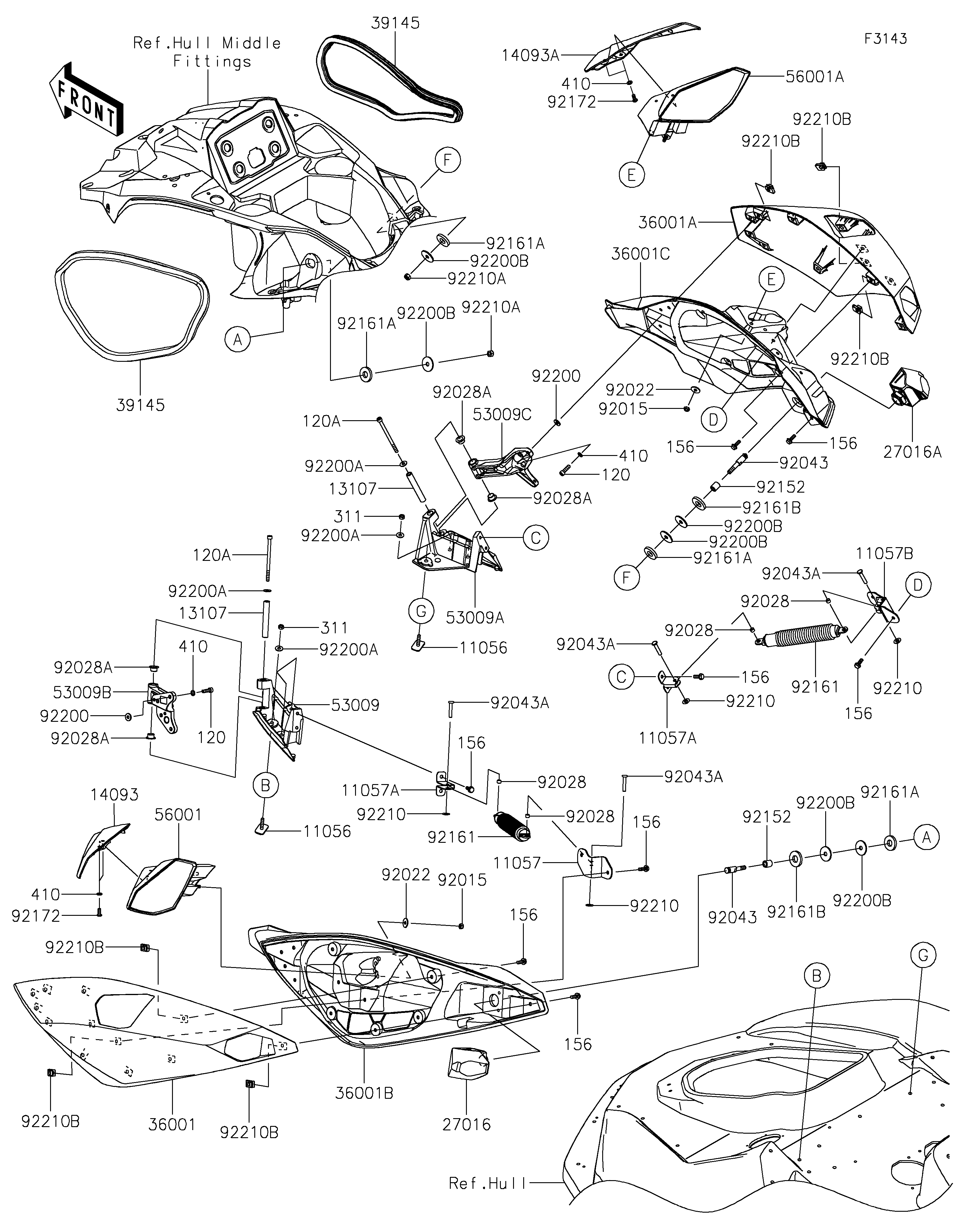

2023 JET SKI® ULTRA® 160LX - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056
11056
11057
11057
11057A
11057A
11057A
11057A
11057B
11057B
13107
13107
13107
13107
14093
14093
14093A
14093A
27016
27016
27016A
27016A
36001
36001
36001A
36001A
36001B
36001B
36001C
36001C
39145
39145
39145
39145
53009
53009
53009A
53009A
53009B
53009B
53009C
53009C
56001
56001
56001A
56001A
92015
92015
92015
92015
92022
92022
92022
92022
92028
92028
92028
92028
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92028A
92028A
92028A
92028A
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92043A
92043A
92043A
92043A
92152
92152
92152
92152
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92172
92172
92172
92172
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92210
92210
92210
92210
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
120
120
120
120
120A
120A
120A
120A
156
156
156
156
156
156
156
156
156
156
156
156
156
156
156
156
311
311
311
311
410
410
410
410
410
410
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-3724 6
BRACKET,HATCH SIDE 11057 11057-7467 1
BRACKET,DECK SIDE 11057A 11057-7469 2
BRACKET,HATCH SIDE 11057B 11057-7470 1
SHAFT,FRONT HINGE 13107 13107-0944 2
COVER,MIRROR,LH,M.S.GOLD 14093 14093-1146-66U 1
COVER,MIRROR,RH,M.S.GOLD 14093A 14093-1147-66U 1
LOCK-ASSY,SIDE COVER,LH 27016 27016-0103 1
LOCK-ASSY,SIDE COVER,RH 27016A 27016-0104 1
COVER-SIDE,LH,M.S.GOLD 36001 36001-0710-66U 1
COVER-SIDE,RH,M.S.GOLD 36001A 36001-0711-66U 1
COVER-SIDE,LH,INNER 36001B 36001-0712 1
COVER-SIDE,RH,INNER 36001C 36001-0713 1
TRIM-SEAL 39145 39145-0730 2
HINGE,DECK SIDE 53009 53009-0308 1
HINGE,DECK SIDE 53009A 53009-0309 1
HINGE,HATCH SIDE 53009B 53009-0310 1
HINGE,HATCH SIDE 53009C 53009-0311 1
MIRROR-ASSY,LH 56001 56001-0440 1
MIRROR-ASSY,RH 56001A 56001-0441 1
NUT,LOCK,6MM 92015 92015-3766 4
WASHER,6.5X20X1.5 92022 92022-3710 4
BUSHING 92028 92028-3765 4
BUSHING 92028A 92028-3770 4
PIN 92043 92043-0754 2
PIN,6X33 92043A 92043-3748 4
COLLAR,8.2X14X16.2 92152 92152-0979 2
DAMPER,HATCH 92161 92161-1581 2
DAMPER 92161A 92161-3739 4
DAMPER 92161B 92161-3747 2
SCREW,TAPPING,6X14 92172 92172-1428 4
WASHER,6.5X16X2.0 92200 92200-1543 8
WASHER,6.5X16X1.0 92200A 92200-3712 8
WASHER,8.5X32X2 92200B 92200-3786 6
NUT,SPEED,6MM 92210 92210-3739 4
NUT,LOCK,8MM 92210A 92210-3742 2
NUT,6MM 92210B 92210-3768 24
BOLT-SOCKET,6X22 120 120R0622 8
BOLT-SOCKET,6X95 120A 120R0695 2
BOLT-WP,6X18 156 156R0618 20
NUT-HEX,6MM 311 311R0600 6
WASHER-PLAIN-SMALL,6MM 410 410S0600 12
