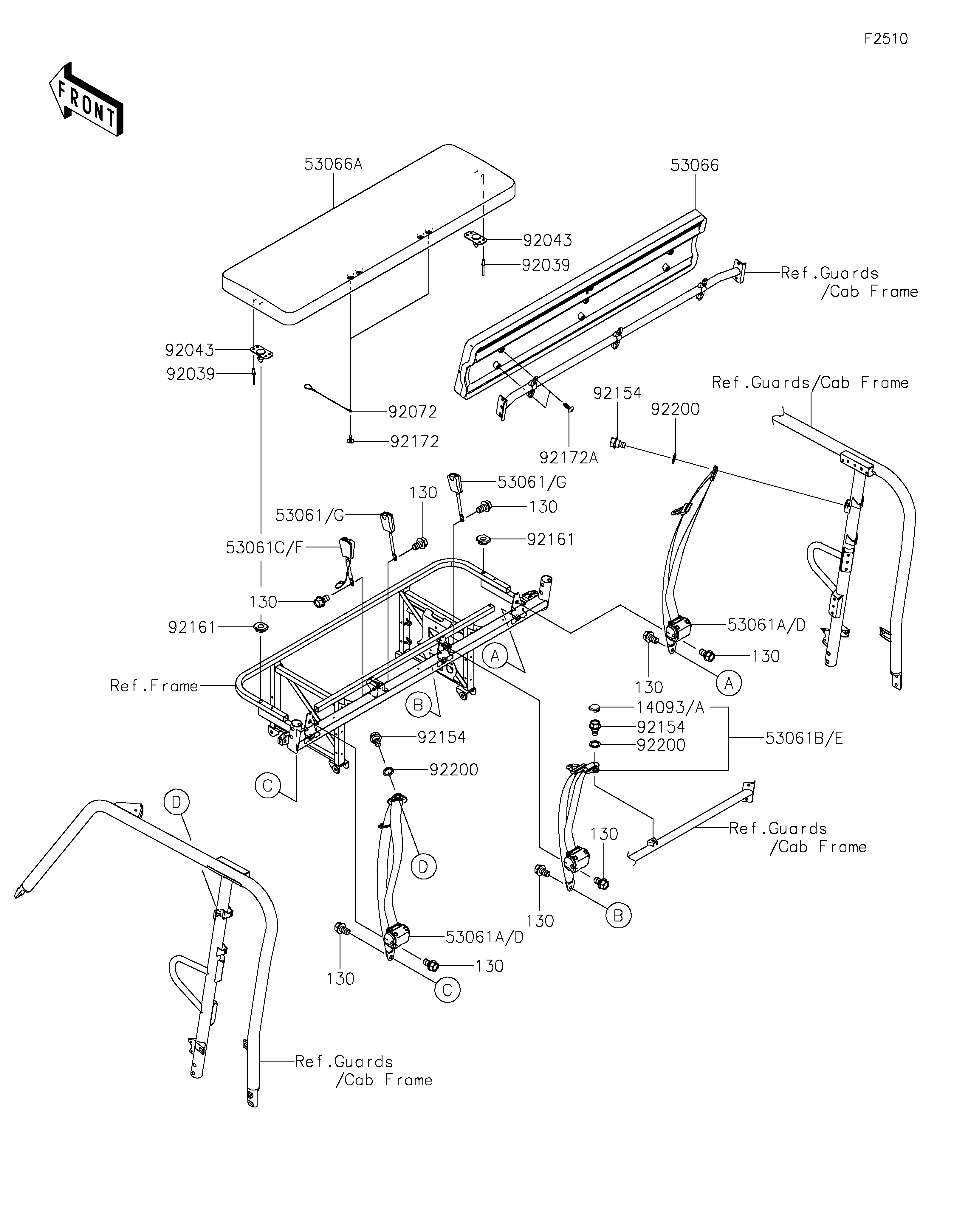

2024 MULE PRO-DX - Seat

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
53061
53061
53061A
53061A
53061B
53061C
53061D
53061D
53061E
53061F
53061G
53061G
53066
53066A
92039
92039
92043
92043
92072
92154
92154
92154
92161
92161
92172
92172A
92200
92200
92200
130
130
130
130
130
130
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,D-RING 14093 14093-1037 1
COVER,D-RING 14093A 14093-1555 1
BELT-SEAT,BUCKLE 53061 53061-0039 2
BELT-SEAT,FR,LH&RH 53061A 53061-0340 2
BELT-SEAT,MIDDLE 53061B 53061-0341 1
BELT-SEAT,BUCKLE,SW. 53061C 53061-0364 1
BELT-SEAT,FR,LH&RH 53061D 53061-0381 2
BELT-SEAT,MIDDLE 53061E 53061-0383 1
BELT-SEAT,BUCKLE,SW. 53061F 53061-0384 1
BELT-SEAT,BUCKLE 53061G 53061-0385 2
SEAT-ASSY,BACK,BLACK 53066 53066-0742-MA 1
SEAT-ASSY,BOTTOM,BLACK 53066A 53066-0743-MA 1
RIVET 92039 92039-0747 8
PIN 92043 92043-0859 2
BAND 92072 92072-0769 2
BOLT,FLANGED,10X19.5 92154 92154-1959 3
DAMPER,10.5X30X8.2 92161 92161-1784 2
SCREW,6X16 92172 92172-0284 2
SCREW,TAPPING,6X20 92172A 92172-0488 6
WASHER,16X22X2 92200 92200-1798 3
BOLT-FLANGED,12X20 130 130BA1220 9
