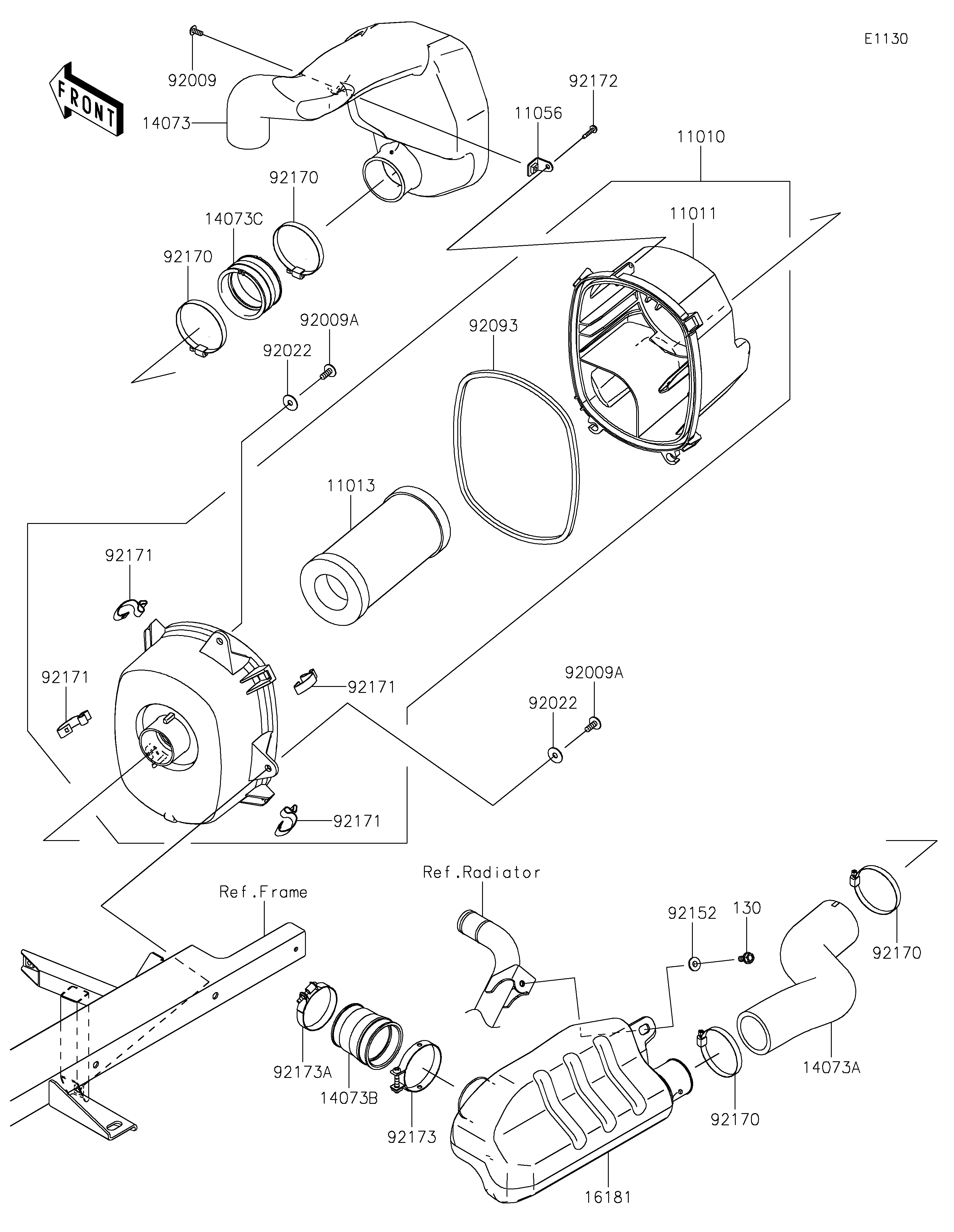

2024 MULE PRO-DX - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11011
11013
11056
14073
14073A
14073B
14073C
16181
92009
92009A
92009A
92022
92022
92093
92152
92170
92170
92170
92170
92171
92171
92171
92171
92172
92173
92173A
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0979 1
CASE-AIR FILTER,UPP 11011 11011-0857 1
ELEMENT-AIR FILTER 11013 11013-1290 1
BRACKET,AIR FILTER 11056 11056-3734 1
DUCT,INTAKE 14073 14073-0815 1
DUCT,AIR CLEANER-RESONATOR 14073A 14073-0816 1
DUCT,FUNNEL 14073B 14073-0817 1
DUCT,JOINT 14073C 14073-1775 1
TANK-RESONATOR 16181 16181-0018 1
SCREW,5X12 92009 92009-1154 1
SCREW,6X16 92009A 92009-1621 2
WASHER,PLAIN,6.5X20X1 92022 92022-165 2
SEAL,AIR FILTER 92093 92093-0607 1
COLLAR,6.5X10X5.6 92152 92152-0445 1
CLAMP 92170 92170-1764 4
CLAMP 92171 92171-0225 4
SCREW,TAPPING,5X20 92172 92172-0009 1
CLAMP 92173 92173-1536 1
CLAMP 92173A 92173-1537 1
BOLT-FLANGED,6X14 130 130BA0614 1
