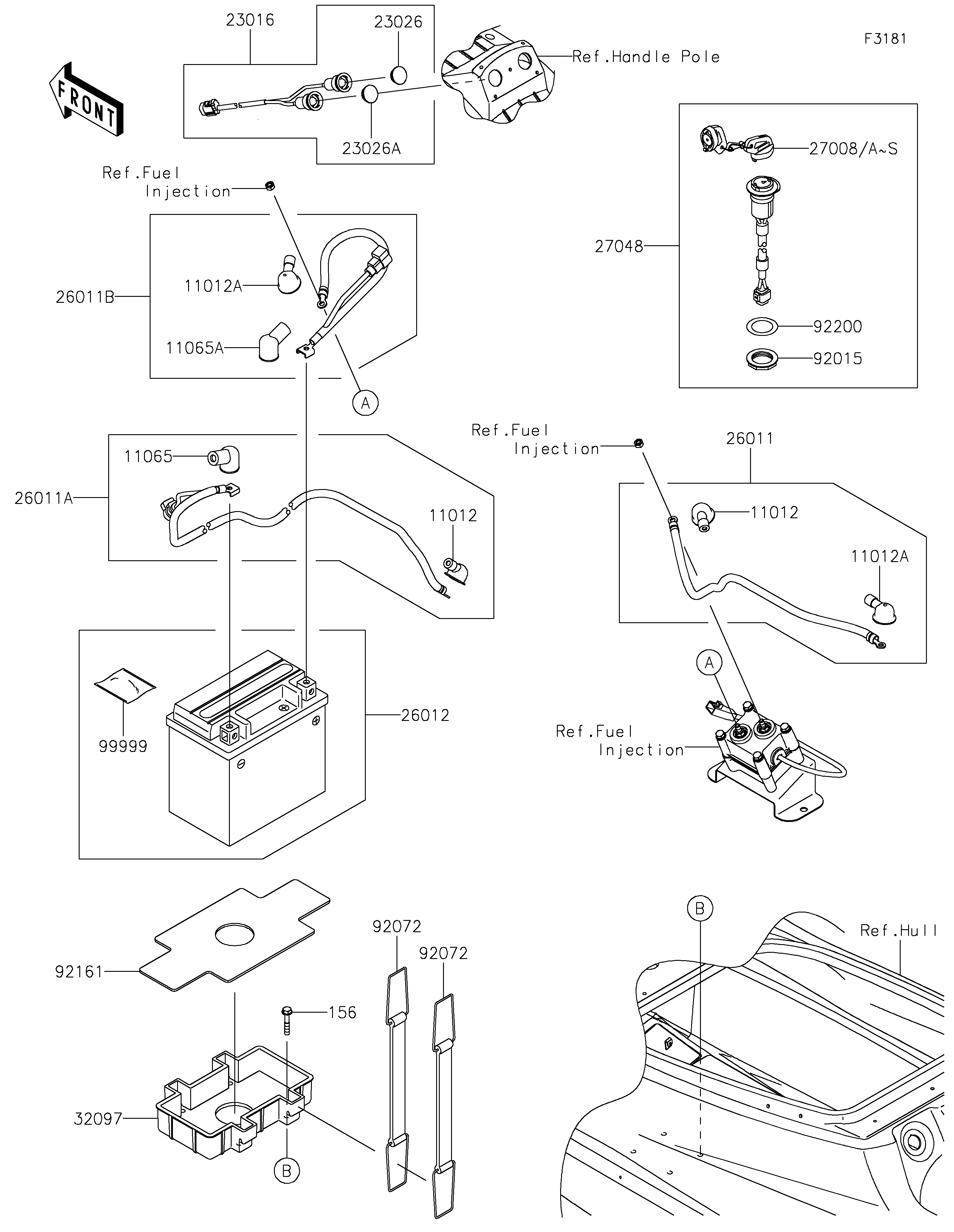

2018 JET SKI® SX-R™ - Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012A
11012A
11065
11065A
23016
23026
23026A
26011
26011A
26011B
26012
27008
27008A
27008B
27008C
27008D
27008E
27008F
27008G
27008H
27008I
27008J
27008K
27008L
27008M
27008N
27008O
27008P
27008Q
27008R
27008S
27048
32097
92015
92072
92072
92161
92200
99999
156
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3004 2
CAP,LEAD WIRE 11012A 11012-3726 2
CAP,TERMINAL 11065 11065-3729 1
CAP,TERMINAL 11065A 11065-3732 1
LAMP-ASSY,INDICATOR 23016 23016-0597 1
LENS,WARNING 23026 23026-0030 1
LENS,FUEL 23026A 23026-0031 1
WIRE-LEAD,RELAY 26011 26011-0955 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0956 1
WIRE-LEAD,BATTERY(+) 26011B 26011-0957 1
BATTERY,YTX20L-BS,12V 18AH 26012 26012-0787 1
KEY,MAGNETIC SW,#3001 27008 27008-3770 1
KEY,MAGNETIC SW,#3002 27008A 27008-3771 AR
KEY,MAGNETIC SW,#3003 27008B 27008-3772 AR
KEY,MAGNETIC SW,#3004 27008C 27008-3773 AR
KEY,MAGNETIC SW,#3005 27008D 27008-3774 AR
KEY,MAGNETIC SW,#3006 27008E 27008-3775 AR
KEY,MAGNETIC SW,#3007 27008F 27008-3776 AR
KEY,MAGNETIC SW,#3008 27008G 27008-3777 AR
KEY,MAGNETIC SW,#3009 27008H 27008-3778 AR
KEY,MAGNETIC SW,#3010 27008I 27008-3779 AR
KEY,MAGNETIC SW,#3011 27008J 27008-3780 AR
KEY,MAGNETIC SW,#3012 27008K 27008-3781 AR
KEY,MAGNETIC SW,#3013 27008L 27008-3782 AR
KEY,MAGNETIC SW,#3014 27008M 27008-3783 AR
KEY,MAGNETIC SW,#3015 27008N 27008-3784 AR
KEY,MAGNETIC SW,#3016 27008O 27008-3785 AR
KEY,MAGNETIC SW,#3017 27008P 27008-3786 AR
KEY,MAGNETIC SW,#3018 27008Q 27008-3787 AR
KEY,MAGNETIC SW,#3019 27008R 27008-3788 AR
KEY,MAGNETIC SW,#3020 27008S 27008-3789 AR
SWITCH-ASSY,MAIN 27048 27048-0029 1
CASE-BATTERY 32097 32097-3709 1
NUT 92015 92015-3848 1
BAND,340X22 92072 92072-3805 4
DAMPER,BATTERY CASE 92161 92161-1388 1
WASHER 92200 92200-3736 1
BOLT NUT KIT 99999 99999-0311 1
BOLT-WP,6X35 156 156R0635 4
