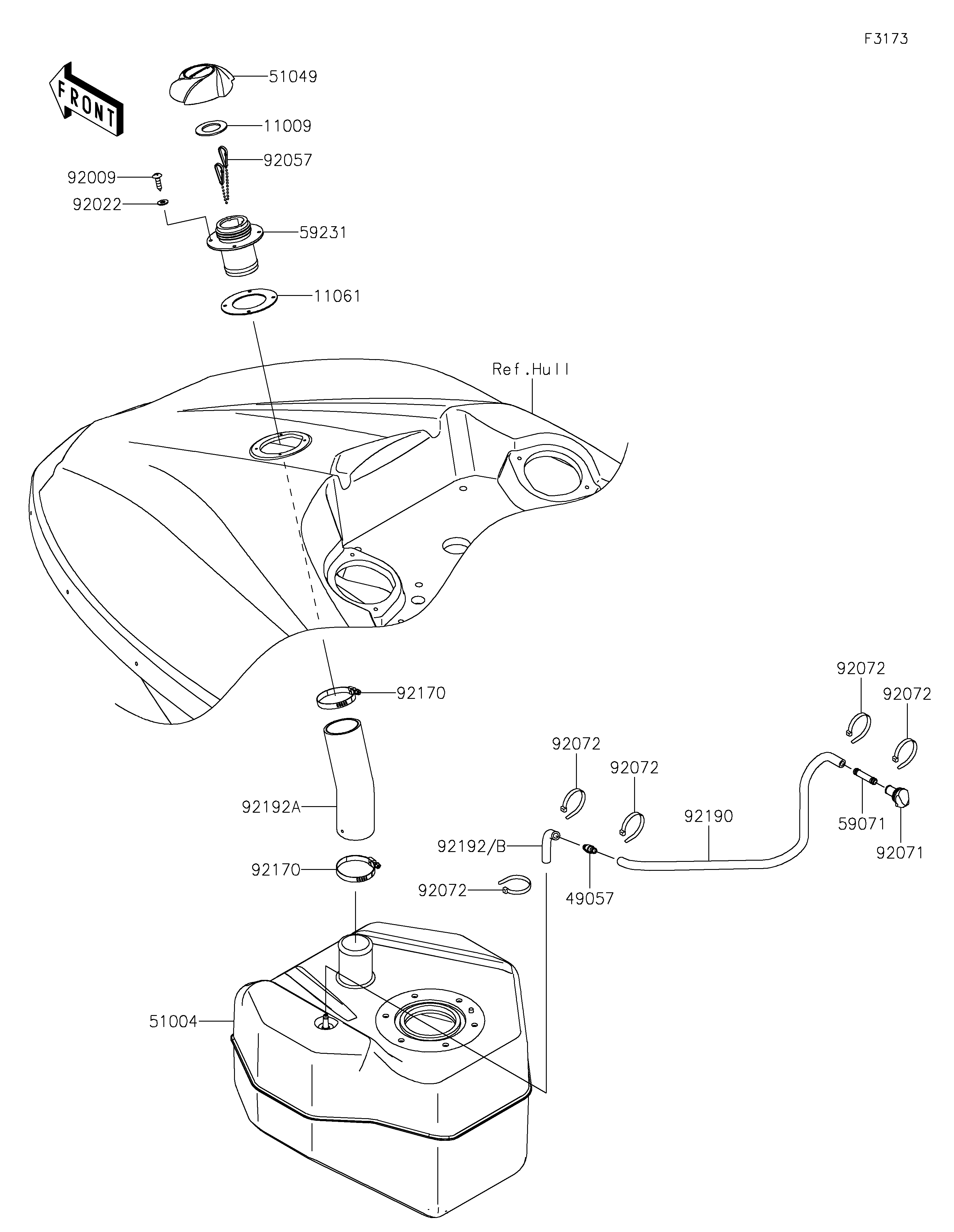

2018 JET SKI® SX-R™ - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11009
11061
49057
51004
51049
59071
59231
92009
92022
92057
92071
92072
92072
92072
92072
92072
92170
92170
92190
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TANK CAP 11009 11009-3020 1
GASKET 11061 11061-3701 1
VALVE-RELIEF 49057 49057-0002 1
TANK-FUEL 51004 51004-0012 1
CAP-TANK,FUEL 51049 51049-0712 1
JOINT 59071 59071-3764 1
FILLER,FUEL TANK 59231 59231-3734 1
SCREW,TAPPING,4X16 92009 92009-3849 4
WASHER 92022 92022-563 4
CHAIN,COVER,L=100 92057 92057-3704 1
GROMMET 92071 92071-3841 1
BAND,L=100.08 92072 92072-3882 5
CLAMP 92170 92170-1674 2
TUBE,5.8X10.8X500 92190 92190-3846 1
TUBE,5.8X11X100 92192 92192-1103 1
TUBE 92192A 92192-1707 1
TUBE,5.8X11X100 92192B 92192-1795 1
