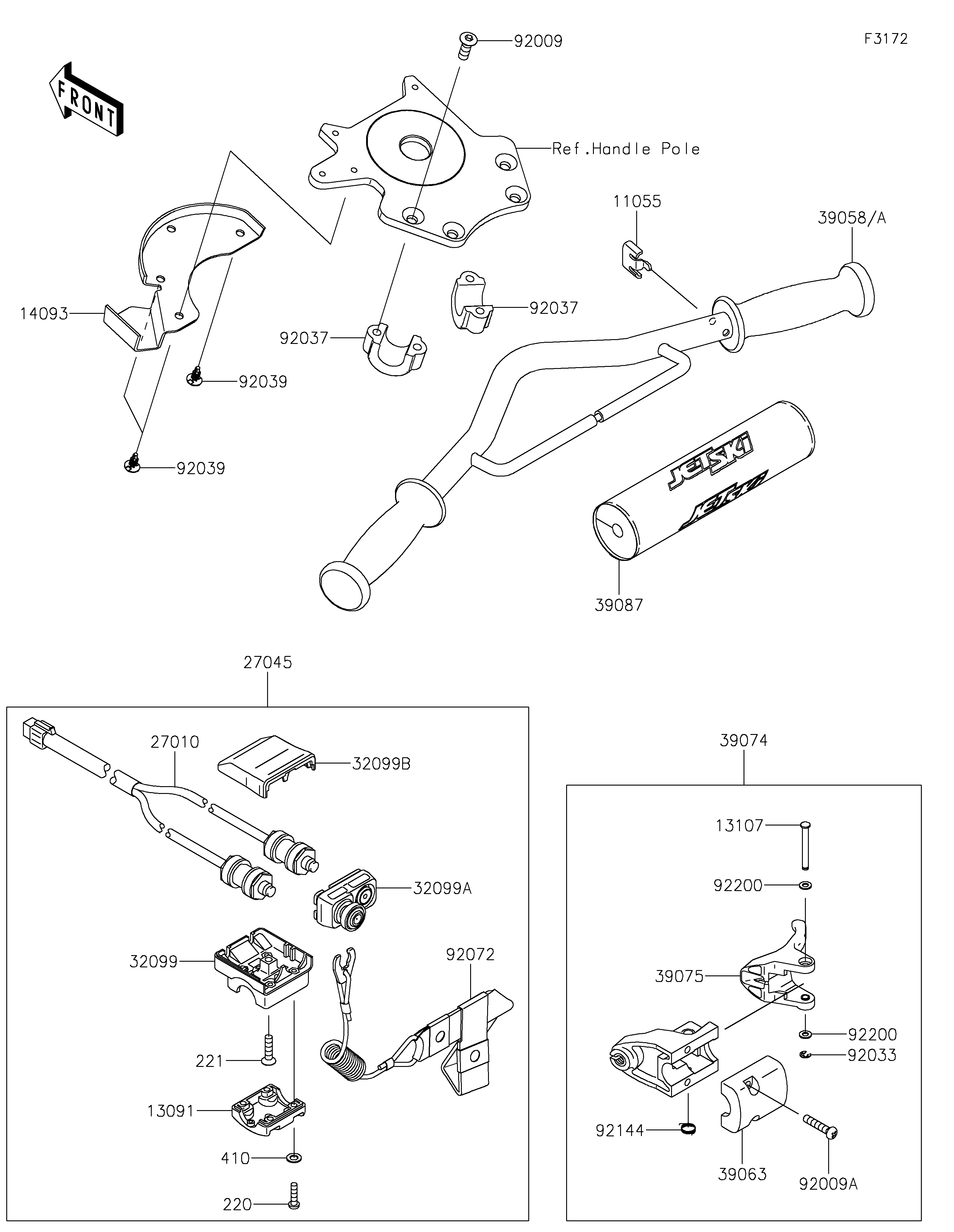

2018 JET SKI® SX-R™ - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
11055
13091
13107
14093
27010
27045
32099
32099A
32099B
39058
39058A
39063
39074
39075
39087
92009
92009A
92033
92037
92037
92039
92039
92072
92144
92200
92200
220
221
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE LEVER 11055 11055-3709 1
HOLDER,SWITCH 13091 13091-3726 1
SHAFT 13107 13107-3740 1
COVER 14093 14093-0599 1
SWITCH,STOP&START 27010 27010-3780 1
SWITCH-ASSY,STOP&START 27045 27045-3760 1
CASE,LWR,SWITCH 32099 32099-3725 1
CASE,FR,SWITCH 32099A 32099-3818 1
CASE,UPP,SWITCH 32099B 32099-3860 1
HANDLE-COMP,F.BLACK 39058 39058-0030-6Z 1
HANDLE-COMP,F.BLACK 39058A 39058-0035-6Z 1
HOUSING-CONTROL 39063 39063-3727 1
LEVER-ASSY-THROTTLE 39074 39074-3726 1
LEVER-THROTTLE 39075 39075-3714 1
PAD-HANDLE 39087 39087-0012 1
SCREW,8X22 92009 92009-3701 4
SCREW,6X30 92009A 92009-3837 2
RING-SNAP 92033 92033-3723 1
CLAMP,HANDLEBAR 92037 92037-503 2
RIVET 92039 92039-3787 3
BAND,TETHER SWITCH 92072 92072-3809 1
SPRING 92144 92144-3749 1
WASHER 92200 92200-3738 2
SCREW-PAN-CROS,5X20 220 220R0520 4
SCREW-CSK-CROS,6X25 221 221R0625 1
W-PLAIN-S,5MM 410 410S0500 4
