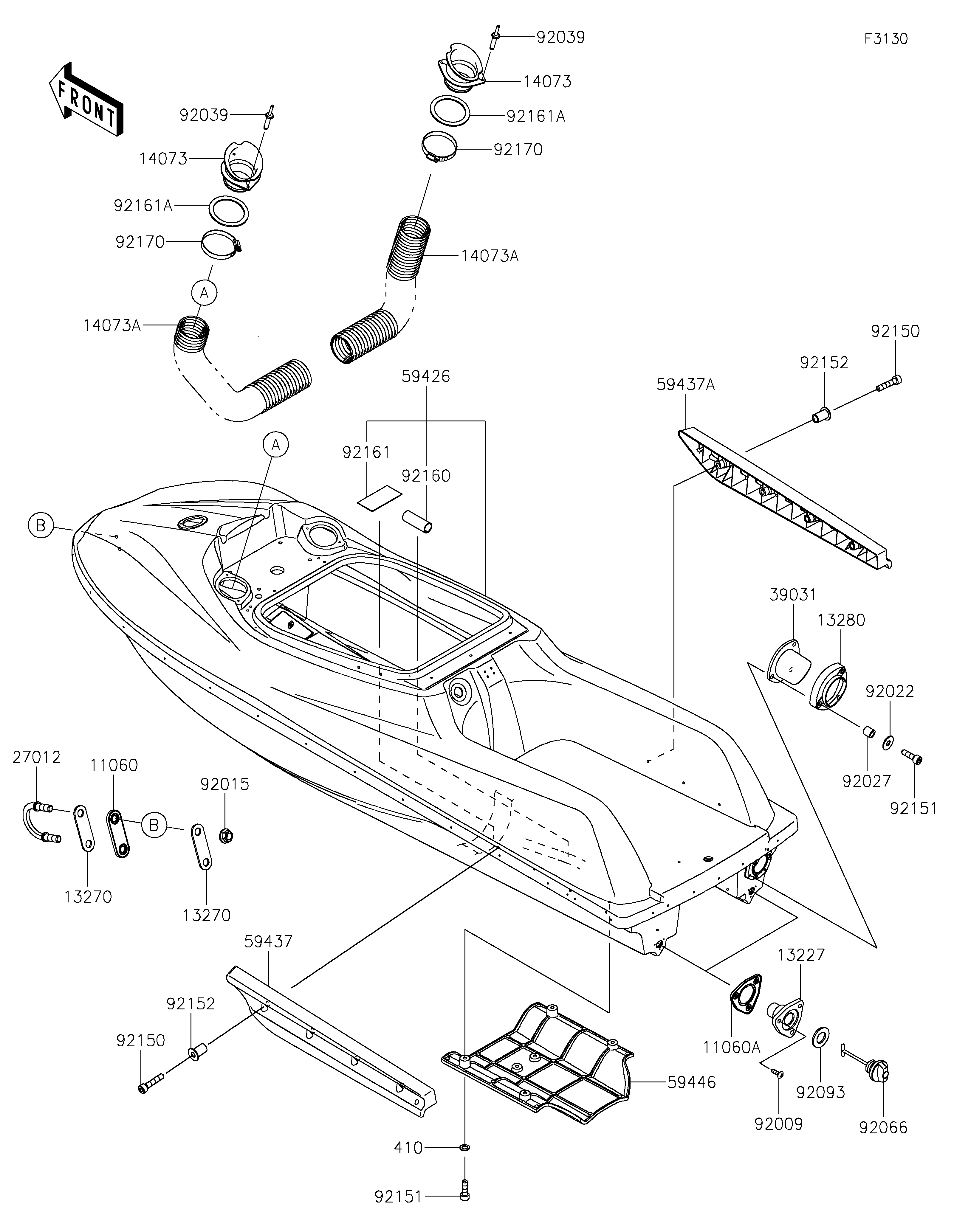

2018 JET SKI® SX-R™ - Hull

DOWNLOAD PDF
SELECT A NEW PART
11060
11060A
13227
13270
13270
13280
14073
14073
14073A
14073A
27012
39031
59426
59437
59437A
59446
92009
92015
92022
92027
92039
92039
92066
92093
92150
92150
92151
92151
92152
92152
92160
92161
92161A
92161A
92170
92170
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,U HOOK,FR 11060 11060-3799 1
GASKET,DRAIN PLUG 11060A 11060-3801 2
HOUSING,DRAIN PLUG,F.BLACK 13227 13227-3721-6Z 2
PLATE 13270 13270-3896 2
HOLDER,TAIL PIPE CAP 13280 13280-3742 1
DUCT 14073 14073-0866 2
DUCT 14073A 14073-0868 2
HOOK 27012 27012-3797 1
CAP-END,TAIL PIPE 39031 39031-3709 1
HULL-COMP,BLACK 59426 59426-0010-650 1
STABILIZER,LH,F.BLACK 59437 59437-3745-6Z 1
STABILIZER,RH,F.BLACK 59437A 59437-3746-6Z 1
COVER-JET PUMP 59446 59446-0002 1
SCREW,TAPPING,4X16 92009 92009-3849 6
NUT,FLANGED,8MM 92015 92015-1933 2
WASHER 92022 92022-567 3
COLLAR,6.2X10X10 92027 92027-3705 3
RIVET 92039 92039-3775 4
PLUG,RR,DRAIN,F.BLACK 92066 92066-3783-6Z 2
SEAL 92093 92093-3720 2
BOLT,SOCKET,6X30 92150 92150-3822 8
BOLT,SOCKET,6X20 92151 92151-3774 9
COLLAR 92152 92152-3715 8
DAMPER,22X26X72 92160 92160-1008 1
DAMPER 92161 92161-3728 1
DAMPER 92161A 92161-3769 2
CLAMP 92170 92170-1679 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 6
