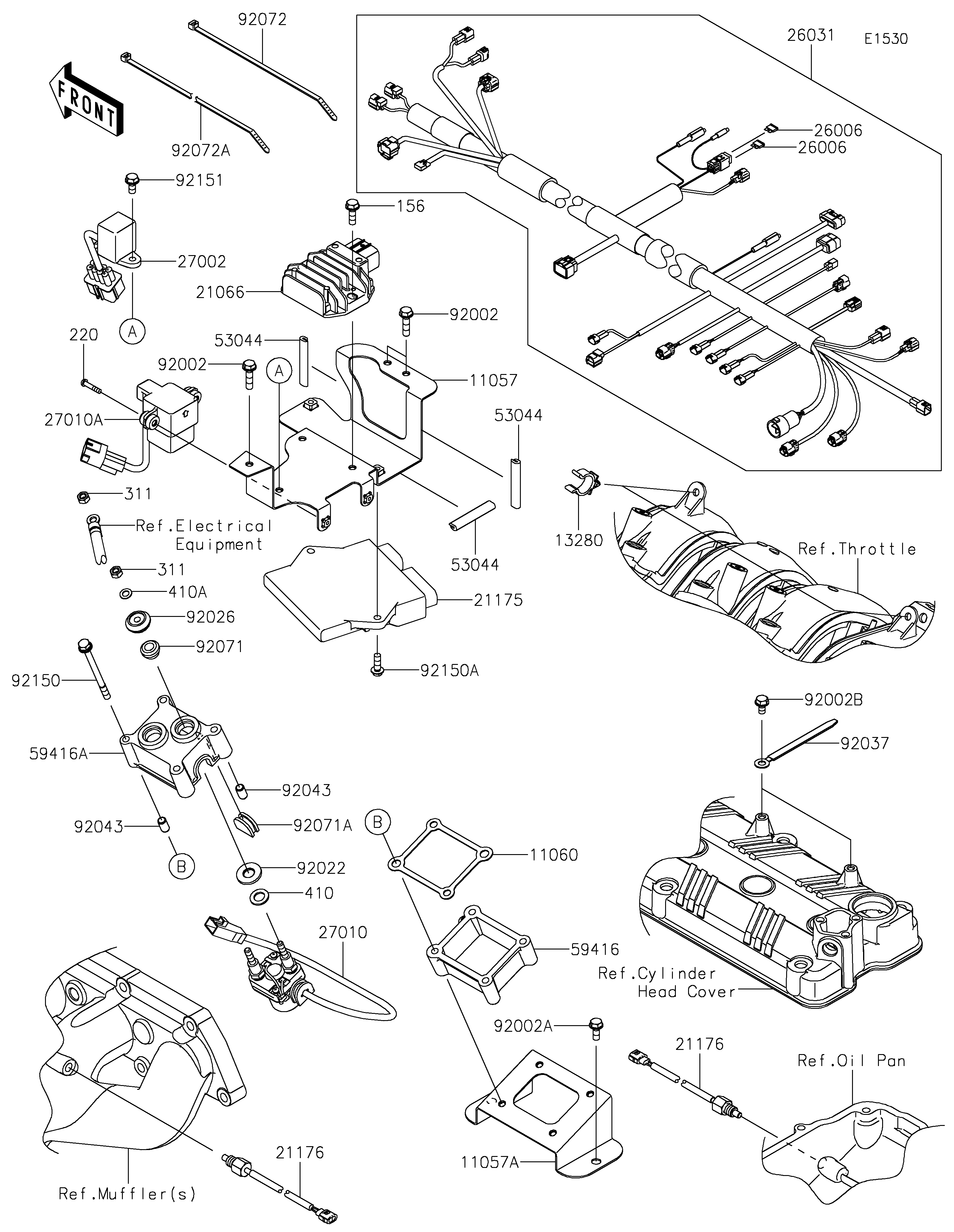

2018 JET SKI® SX-R™ - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11060
13280
21066
21175
21176
21176
26006
26006
26031
27002
27010
27010A
53044
53044
53044
59416
59416A
92002
92002
92002A
92002B
92022
92026
92037
92043
92043
92071
92071A
92072
92072A
92150
92150A
92151
156
220
311
311
410
410A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-0451 1
BRACKET,ELECTRIC CASE 11057A 11057-0452 1
GASKET 11060 11060-3709 1
HOLDER,HARNESS 13280 13280-3760 2
REGULATOR-VOLTAGE 21066 21066-0755 1
CONTROL UNIT-ELECTRONIC 21175 21175-1223 1
SENSOR,TEMP 21176 21176-0741 2
FUSE,MINI BLADE,20A,YELLOW 26006 26006-3704 2
HARNESS,MAIN 26031 26031-2572 1
RELAY-ASSY 27002 27002-3703 1
SWITCH,MAGNETIC 27010 27010-0860 1
SWITCH,VDS 27010A 27010-3785 1
TRIM 53044 53044-0621 3
CASE-ELECTRIC 59416 59416-3765 1
CASE-ELECTRIC 59416A 59416-3766 1
BOLT,6X25 92002 92002-3714 3
BOLT,6X16 92002A 92002-3728 2
BOLT,6X12 92002B 92002-3763 2
WASHER 92022 92022-3035 2
SPACER 92026 92026-3703 2
CLAMP,L=100 92037 92037-3736 2
PIN 92043 92043-3715 2
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-3837 1
BAND,L=188.85 92072 92072-0105 1
BAND,L=372.24 92072A 92072-3883 1
BOLT,6X80 92150 92150-3711 4
BOLT,6X18 92150A 92150-3729 2
BOLT,6X14 92151 92151-3788 1
BOLT-WP,6X20 156 156R0620 2
SCREW-PAN-CROS,4X20 220 220R0420 2
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410AA1000 2
WASHER-PLAIN-SMALL,6MM 410A 410S0600 2
