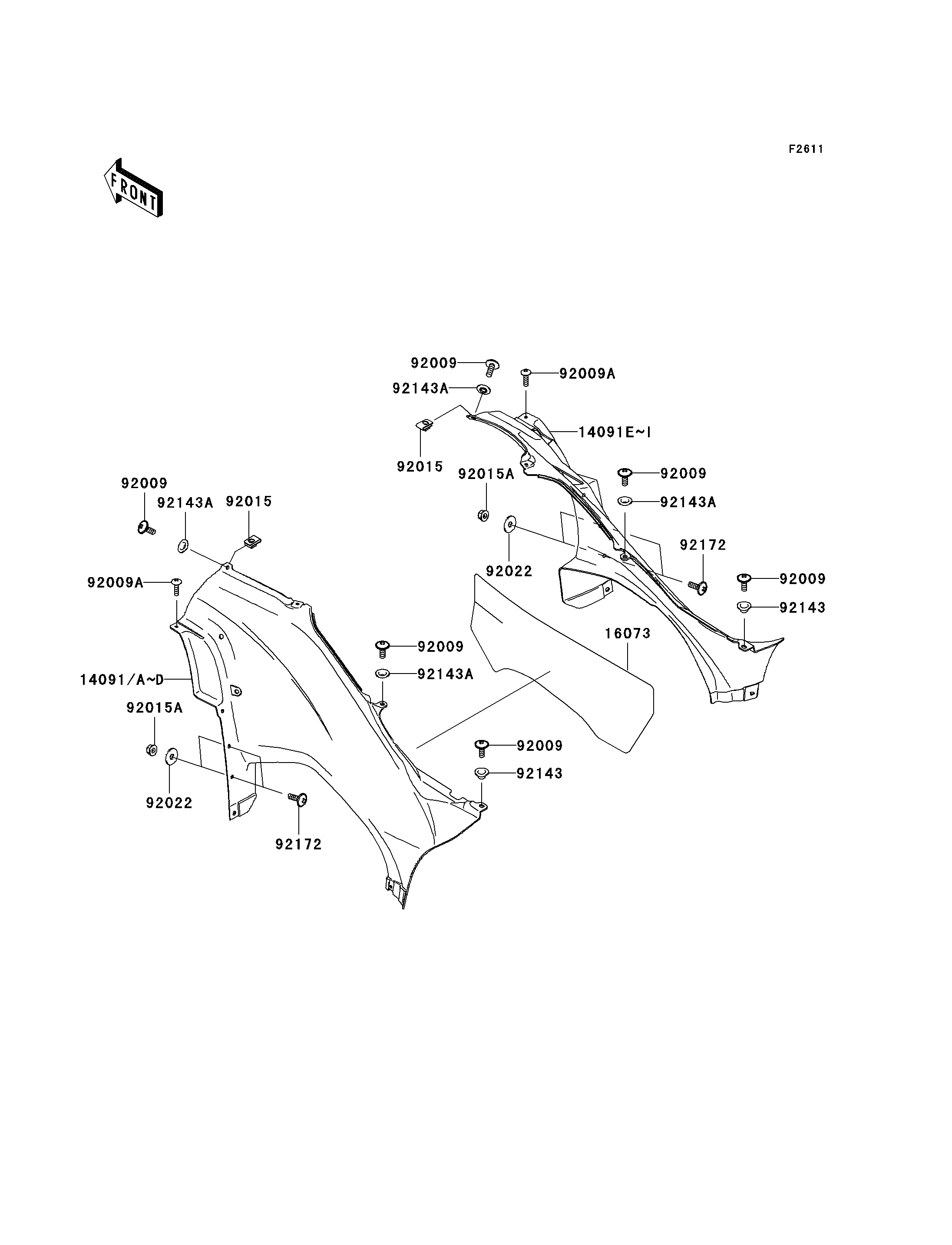

2006 Brute Force 650 4x4i - Side Covers
14091A
14091B
14091F
14091G
16073
92009
92009
92009
92009
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92022
92022
92143
92143
92143A
92143A
92143A
92143A
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SIDE,LH,A.RED | 14091A | 14091-0137-260 | 1 | ||
| COVER,SIDE,LH,W.GREEN | 14091B | 14091-0137-286 | 1 | ||
| COVER,SIDE,RH,A.RED | 14091F | 14091-0138-260 | 1 | ||
| COVER,SIDE,RH,W.GREEN | 14091G | 14091-0138-286 | 1 | ||
| INSULATOR,SIDE COVER | 16073 | 16073-0030 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 6 | ||
| SCREW,5X18 | 92009A | 92009-1655 | 2 | ||
| NUT,6MM | 92015 | 92015-1602 | 2 | ||
| NUT,LOCK,FLANGED,6MM | 92015A | 92015-1603 | 4 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 4 | ||
| COLLAR | 92143 | 92143-1057 | 2 | ||
| COLLAR | 92143A | 92143-1087 | 4 | ||
| SCREW,6X18 | 92172 | 92172-0002 | 4 |
