Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
130
130
32046
53003
53003A
53065
53066
53066A
92015
92015
92015
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92153
92153
99996

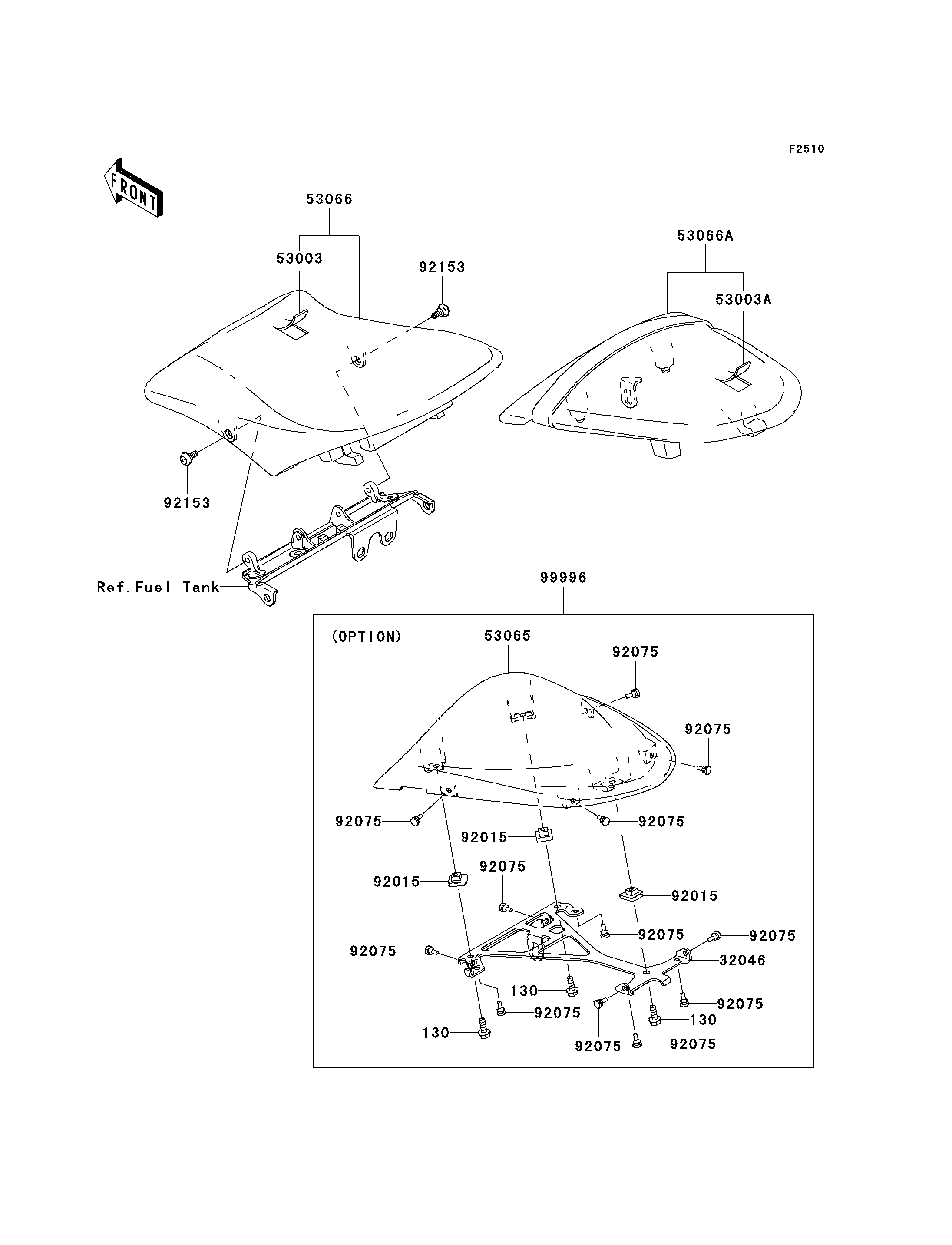

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,M6X16 | 130 | 130L0616 | 3 | (OPTION) | |
| BRACKET-SEAT,SEAT COVER | 32046 | 32046-0064 | 1 | (OPTION) | |
| LEATHER,FRONT SEAT,BLACK | 53003 | 53003-0039-MA | 1 | ||
| LEATHER,REAR SEAT,BLACK | 53003A | 53003-0040-MA | 1 | ||
| COVER SEAT,L.GREEN | 53065 | 53065-0005-777 | 1 | (OPTION) | |
| SEAT-ASSY,FR,BLACK | 53066 | 53066-0084-MA | 1 | ||
| SEAT-ASSY,RR,W/BAND,BLACK | 53066A | 53066-0099-MA | 1 | ||
| NUT,CLAMP,6MM | 92015 | 92015-1531 | 3 | (OPTION) | |
| DAMPER | 92075 | 92075-1808 | 12 | (OPTION) | |
| BOLT,SOCKET,6MM | 92153 | 92153-0489 | 2 | ||
| KIT,SINGLE SEAT COVER,L.GREEN | 99996 | 99996-1348-777 | 1 | (OPTION) |
