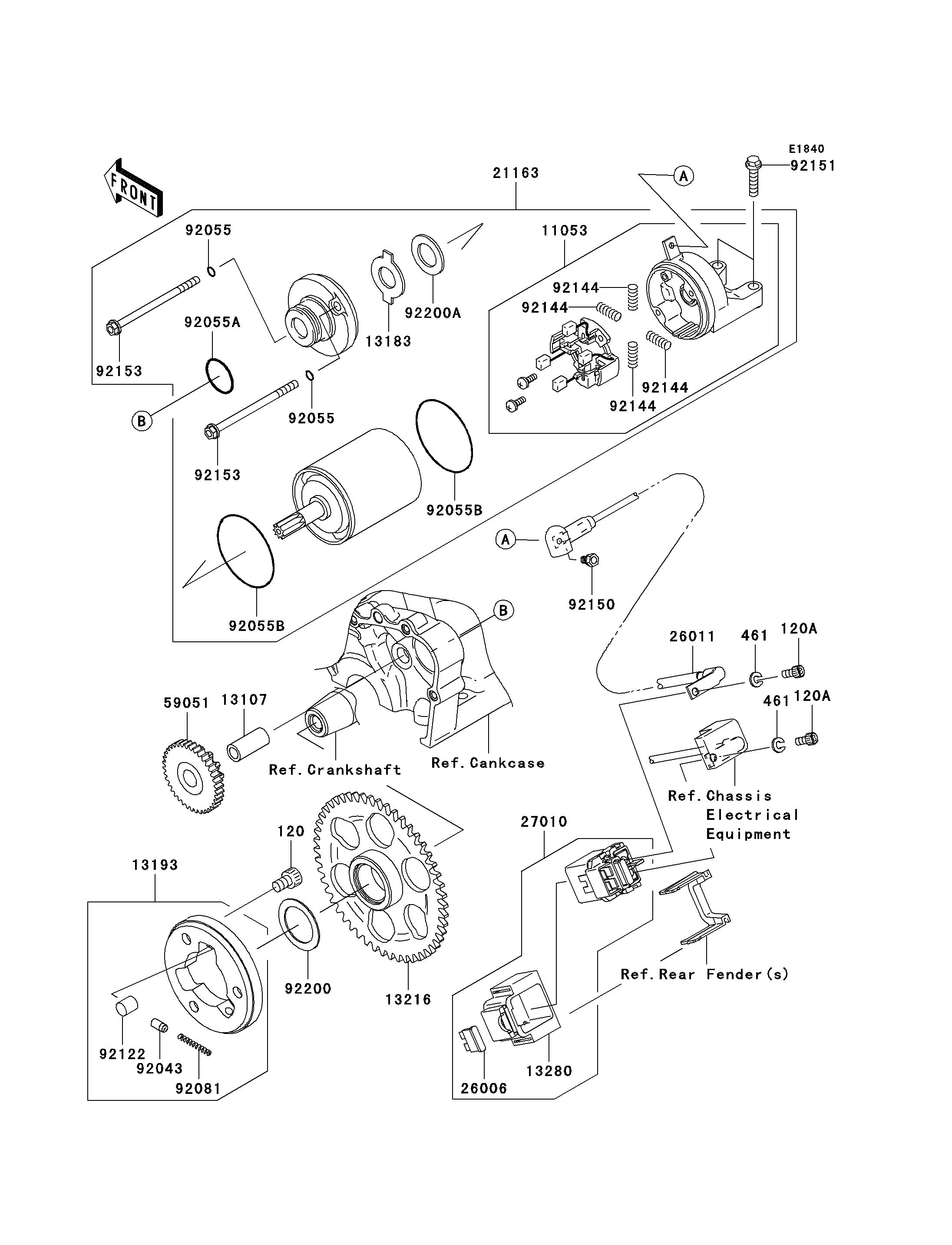

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,M8X12 120 120P0812 3
BOLT-SOCKET,M5X10 120A 120S0510 2
WASHER-SPRING,5MM,BLACK 461 461K0500 2
BRACKET,STARTER 11053 11053-0224 1
SHAFT,7.8X12X26.5 13107 13107-1176 1
PLATE 13183 13183-1460 1
CLUTCH-ASSY-ONEWAY 13193 13193-0001 1
GEAR-COMP,ONEWAY CLUTCH 13216 13216-0011 1
HOLDER,SWITCH 13280 13280-0109 1
STARTER-ELECTRIC 21163 21163-0006 1
FUSE,30A-G 26006 26006-1006 1
WIRE-LEAD 26011 26011-0065 1
SWITCH,MAGNETIC 27010 27010-0030 1
GEAR-SPUR,IDLE 59051 59051-1413 1
PIN 92043 92043-132 3
RING-O,STARTER 92055 92055-0013 2
RING-O,24.4X3.1 92055A 92055-1262 1
RING-O 92055B 92055-1455 2
SPRING,COIL 92081 92081-159 3
ROLLER 92122 92122-006 3
SPRING,BRUSH 92144 92144-1423 4
BOLT 92150 92150-1305 1
BOLT,FLANGED,M6X25 92151 92151-1930 2
BOLT 92153 92153-0405 2
WASHER,28.5X40.0X1.0 92200 92200-0168 1
WASHER 92200A 92200-1019 1
