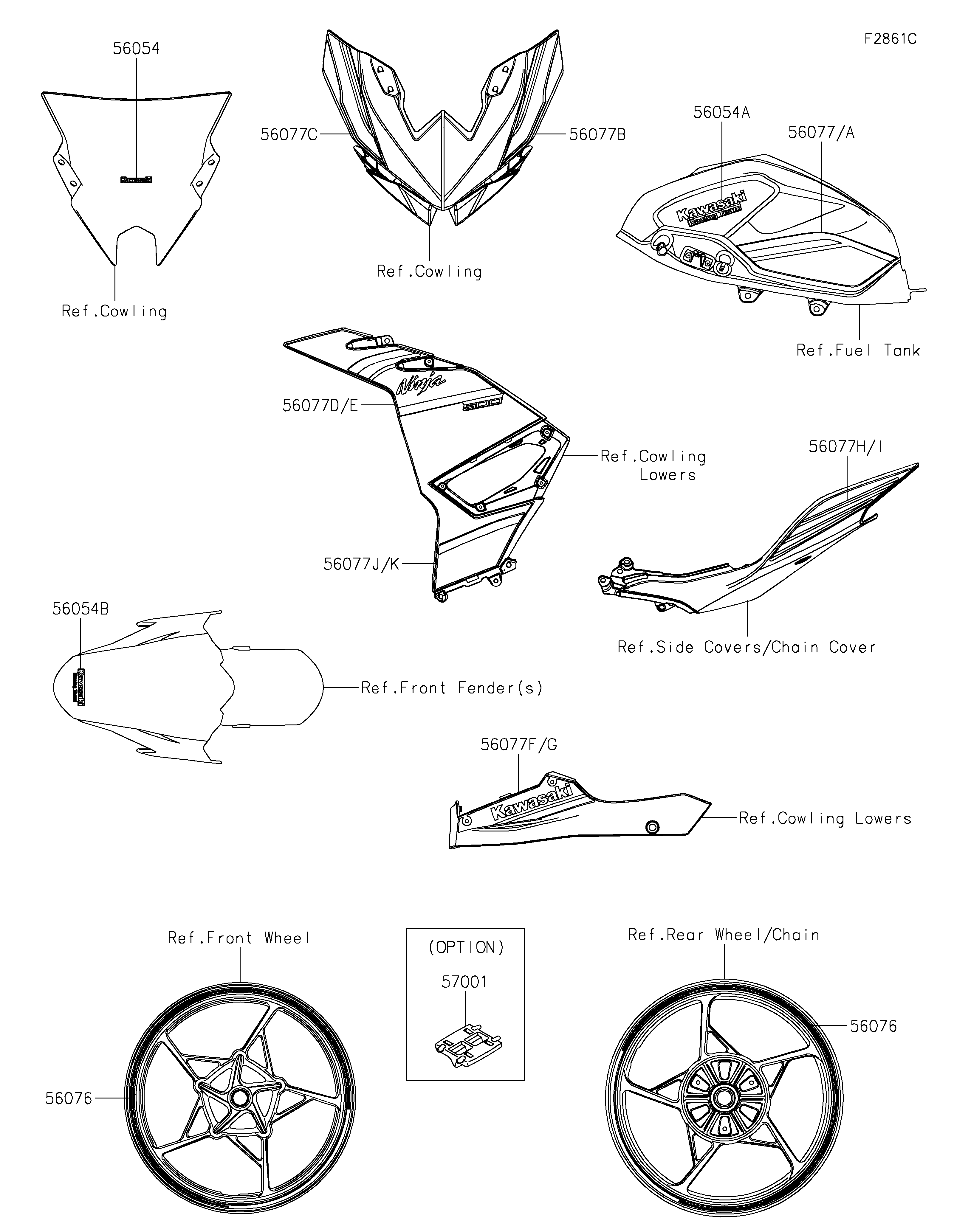

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD,KAWASAKI | 56054 | 56054-2767 | 1 | ||
| MARK,FUEL TANK,KRT | 56054A | 56054-4090 | 2 | ||
| MARK,FR FENDER,KRT | 56054B | 56054-4091 | 1 | ||
| PATTERN,WHEEL,BLACK,6X1079 | 56076 | 56076-2170 | 4 | ||
| PATTERN,FUEL TANK,LH | 56077 | 56077-2517 | 1 | ||
| PATTERN,FUEL TANK,RH | 56077A | 56077-2518 | 1 | ||
| PATTERN,UPP COWL.,LH | 56077B | 56077-2587 | 1 | ||
| PATTERN,UPP COWL.,RH | 56077C | 56077-2588 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP | 56077D | 56077-2589 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP | 56077E | 56077-2590 | 1 | ||
| PATTERN,LWR COWL.,LH | 56077F | 56077-2591 | 1 | ||
| PATTERN,LWR COWL.,RH | 56077G | 56077-2592 | 1 | ||
| PATTERN,TAIL COVER,LH | 56077H | 56077-2593 | 1 | ||
| PATTERN,TAIL COVER,RH | 56077I | 56077-2594 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR | 56077J | 56077-2595 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR | 56077K | 56077-2596 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
