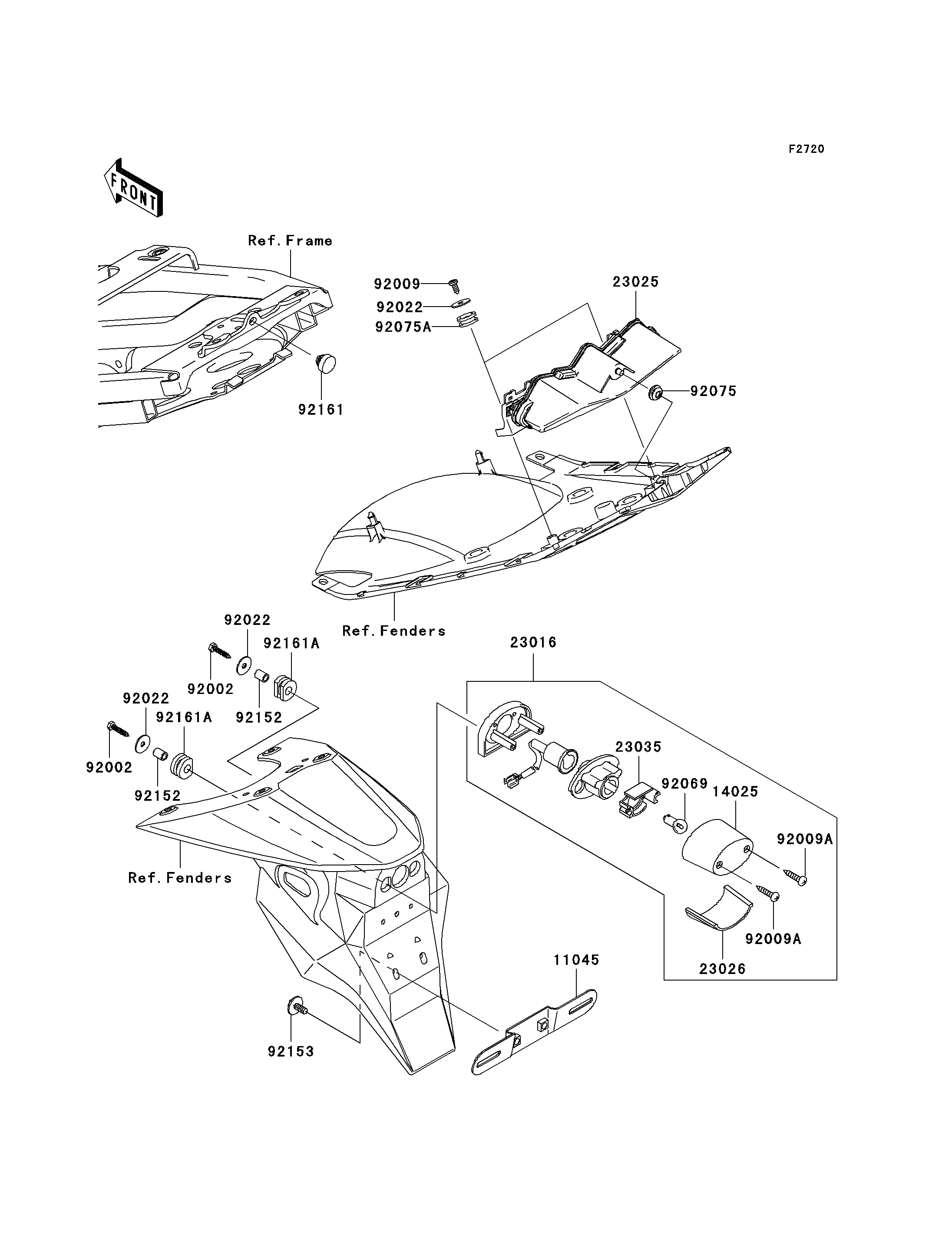

2004 Ninja® ZX™-6RR - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11045
14025
23016
23025
23026
23035
92002
92002
92009
92009A
92009A
92022
92022
92022
92069
92075
92075A
92152
92152
92153
92161
92161A
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE 11045 11045-1387 1
COVER,LICENSE LAMP 14025 14025-1725 1
LAMP-ASSY,LICENSE 23016 23016-1200 1
LAMP-TAIL 23025 23025-1332 1
LENS,LICENSE LAMP 23026 23026-1064 1
REFLECTOR-LAMP,LICENSE 23035 23035-1066 1
BOLT,TAPPING,5X25 92002 92002-1831 2
SCREW,TAPPING,5X12,BLACK 92009 92009-1138 2
SCREW,TAPPING,4X20 92009A 92009-1378 2
WASHER,5.5X20X1.2 92022 92022-1581 4
BULB,12V 5W 92069 92069-1055 1
DAMPER 92075 92075-1011 1
DAMPER 92075A 92075-1634 2
COLLAR,6X9X11.5 92152 92152-1458 2
BOLT,6X16 92153 92153-0684 2
DAMPER 92161 92161-0046 1
DAMPER 92161A 92161-1313 2
