Parts Diagrams

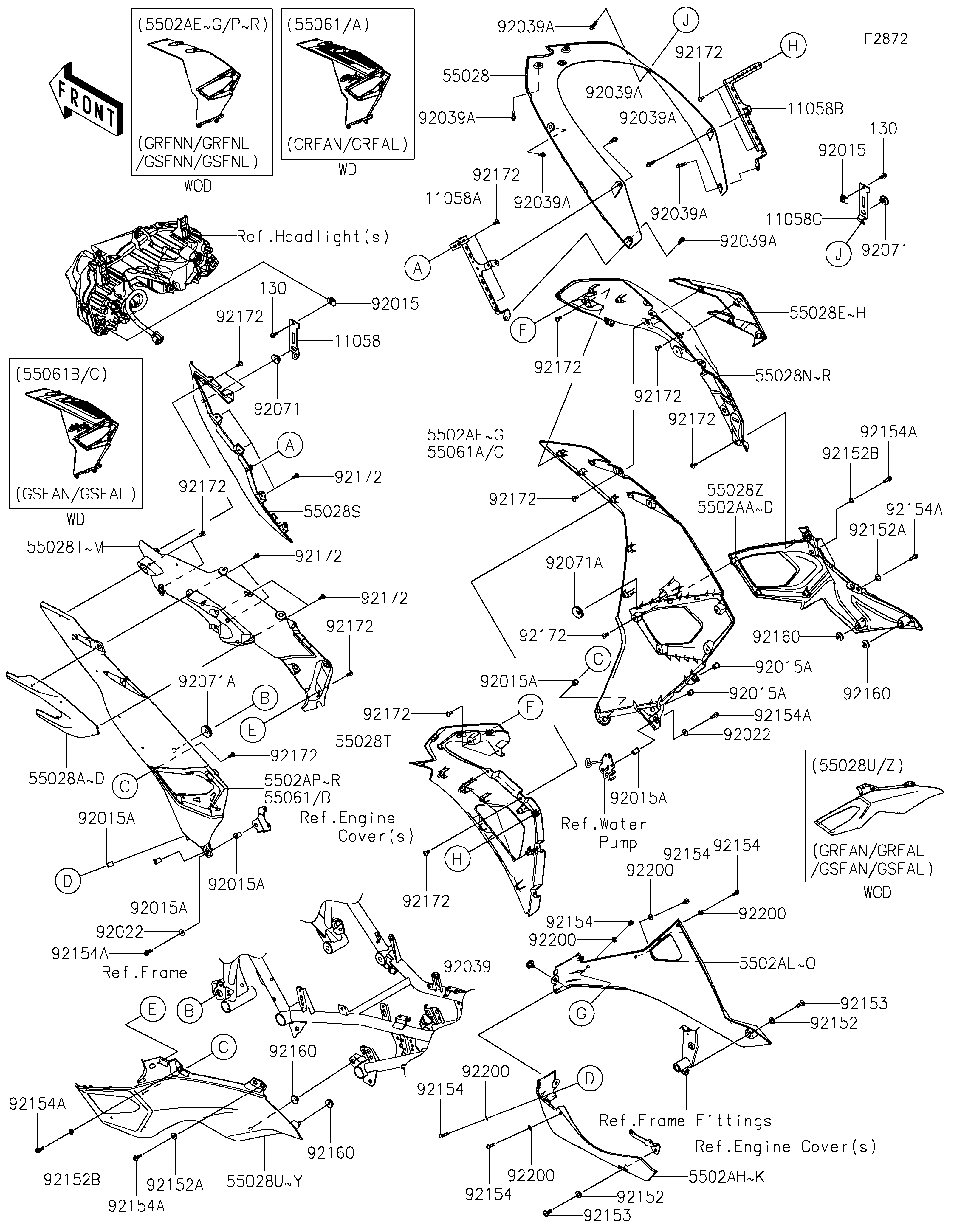

2024 Ninja 500 - Cowling Lowers

DOWNLOAD PDF

SELECT A NEW PART

DOWNLOAD PDF SELECT A NEW PART

11058

11058A

11058B

11058C

55028

55028B

55028D

55028F

55028H

55028I

55028M

55028N

55028R

55028S

55028T

55028U

55028X

55028Z

5502AC

5502AG

5502AJ

5502AK

5502AN

5502AO

5502AR

55061

55061A

92015

92015A

92022

92039

92039A

92071

92071A

92152

92152A

92152B

92153

92154

92154A

92160

92172

92200

130

Part Item Information
ITEM NAME	REF #	PART NUMBER	QUANTITY
BRACKET,HEAD LAMP,LH	11058	11058-1180	1
BRACKET,FR COWLING,LH	11058A	11058-1182	1
BRACKET,FR COWLING,RH	11058B	11058-1183	1
BRACKET,HEAD LAMP,RH	11058C	11058-2403	1
COWLING,FR	55028	55028-0877	1
COWLING,FIN,LH,M.F.R.GRAYSTONE	55028B	55028-0878-35B	1
COWLING,FIN,LH,M.F.S.BLACK	55028D	55028-0878-739	1
COWLING,FIN,RH,M.F.R.GRAYSTONE	55028F	55028-0879-35B	1
COWLING,FIN,RH,M.F.S.BLACK	55028H	55028-0879-739	1
COWLING,SIDE,UPP,LH,P.RED	55028I	55028-0880-234	1
COWLING,SIDE,UPP,LH,M.S.BLACK	55028M	55028-0880-660	1
COWLING,SIDE,UPP,RH,P.RED	55028N	55028-0881-234	1
COWLING,SIDE,UPP,RH,M.S.BLACK	55028R	55028-0881-660	1
COWLING,SIDE,FR,LH	55028S	55028-0882	1
COWLING,SIDE,FR,RH	55028T	55028-0883	1
COWLING,SIDE,RR,LH,P.RED	55028U	55028-0884-234	1
COWLING,SIDE,RR,LH,M.S.BLACK	55028X	55028-0884-660	1
COWLING,SIDE,RR,RH,P.RED	55028Z	55028-0885-234	1
COWLING,SIDE,RR,RH,M.S.BLACK	5502AC	55028-0885-660	1
COWLING,SIDE,RH,M.S.BLACK	5502AG	55028-0887-660	1
COWLING,LWR,LH,M.S.BLACK	5502AJ	55028-0888-660	1
COWLING,LWR,LH,M.F.S.BLACK	5502AK	55028-0888-739	1
COWLING,LWR,RH,M.S.BLACK	5502AN	55028-0889-660	1
COWLING,LWR,RH,M.F.S.BLACK	5502AO	55028-0889-739	1
COWLING,SIDE,LH,M.S.BLACK	5502AR	55028-0916-660	1
COWLING,SIDE,LH,M.M.D.GRAY	55061	55061-5195-69P	1
COWLING,SIDE,RH,M.M.D.GRAY	55061A	55061-5196-69P	1
NUT,5MM	92015	92015-1710	2
NUT,WELL,5MM	92015A	92015-1757	7
WASHER,5.2X16X1.2	92022	92022-263	2
RIVET,HOLE 8MM	92039	92039-0014	1
RIVET	92039A	92039-0709	9
GROMMET,20X24X7.5	92071	92071-0766	2
GROMMET	92071A	92071-1043	2
COLLAR,6.5X16X5.6	92152	92152-1838	2
COLLAR,5.2X7.8X7.2	92152A	92152-2371	2
COLLAR,6X8X4.5	92152B	92152-2395	2
BOLT,6X18	92153	92153-0478	2
BOLT,SOCKET,5X16	92154	92154-4294	5
BOLT,FLANGED,5X16	92154A	92154-7034	6
DAMPER	92160	92160-1613	4
SCREW,5X12	92172	92172-0821	34
WASHER,5.2X12X1.0	92200	92200-0784	5
BOLT-FLANGED,5X12	130	130BA0512	2
