Parts Diagrams |

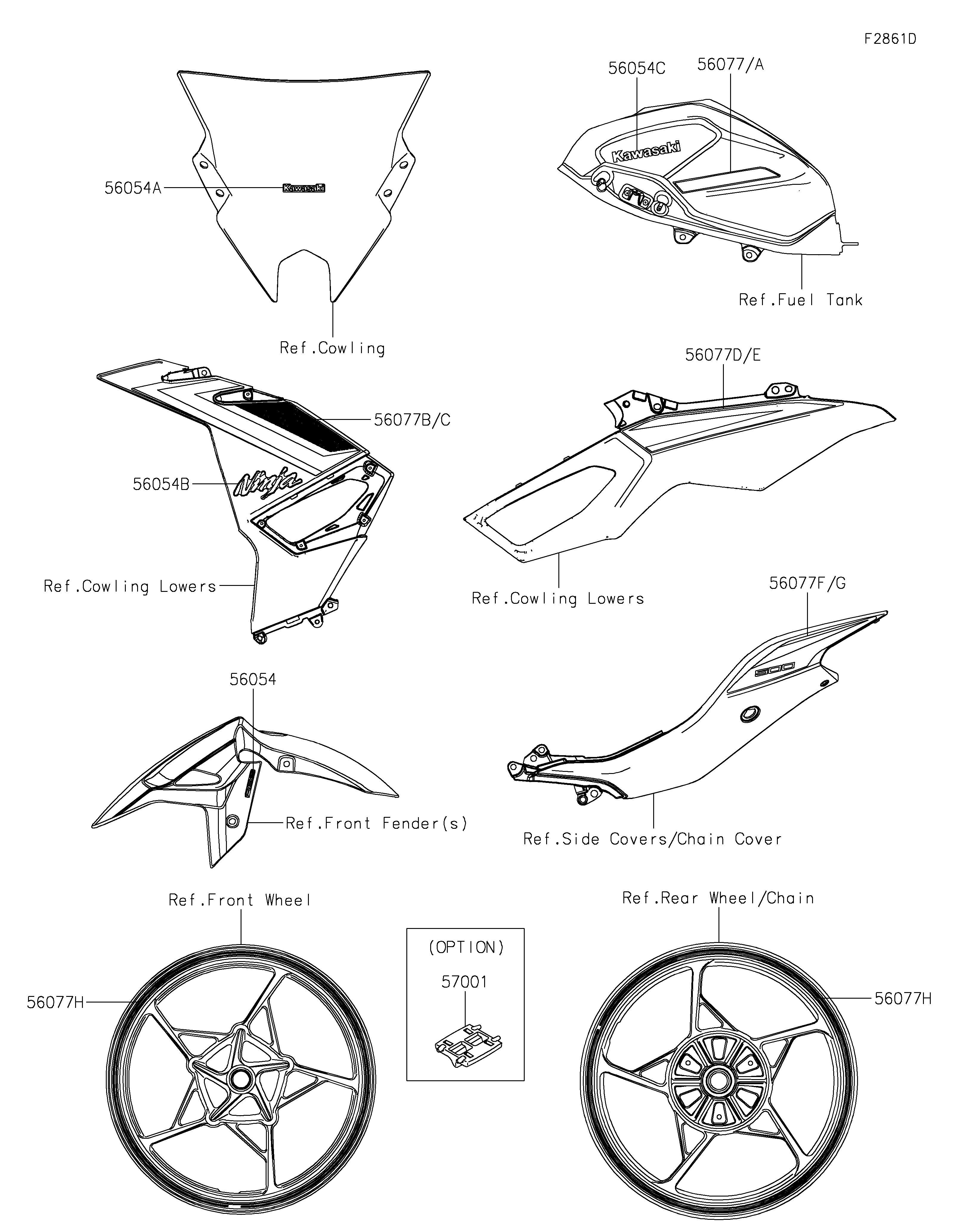

2025 Ninja 500 - Decals(Black)(GSFAN/GSFAL)
56054
56054A
56054B
56054C
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077H
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,ABS | 56054 | 56054-1413 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054A | 56054-2767 | 1 | ||
| MARK,SIDE COWL.,NINJA | 56054B | 56054-4327 | 2 | ||
| MARK,FUEL TANK,KAWASAKI | 56054C | 56054-4329 | 2 | ||
| PATTERN,FUEL TANK,LH | 56077 | 56077-2578 | 1 | ||
| PATTERN,FUEL TANK,RH | 56077A | 56077-2579 | 1 | ||
| PATTERN,SIDE COWL.,LH,FR | 56077B | 56077-2580 | 1 | ||
| PATTERN,SIDE COWL.,RH,FR | 56077C | 56077-2581 | 1 | ||
| PATTERN,SIDE COWL.,LH,RR | 56077D | 56077-2582 | 1 | ||
| PATTERN,SIDE COWL.,RH,RR | 56077E | 56077-2583 | 1 | ||
| PATTERN,TAIL COVER,LH | 56077F | 56077-2584 | 1 | ||
| PATTERN,TAIL COVER,RH | 56077G | 56077-2585 | 1 | ||
| PATTERN,WHEEL,BLUE,4X1353 | 56077H | 56077-2586 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COWL.,NINJA | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,FR | |
| REF # | 56077B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,FR | |
| REF # | 56077C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,RR | |
| REF # | 56077D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,RR | |
| REF # | 56077E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56077F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56077G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,BLUE,4X1353 | |
| REF # | 56077H |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
