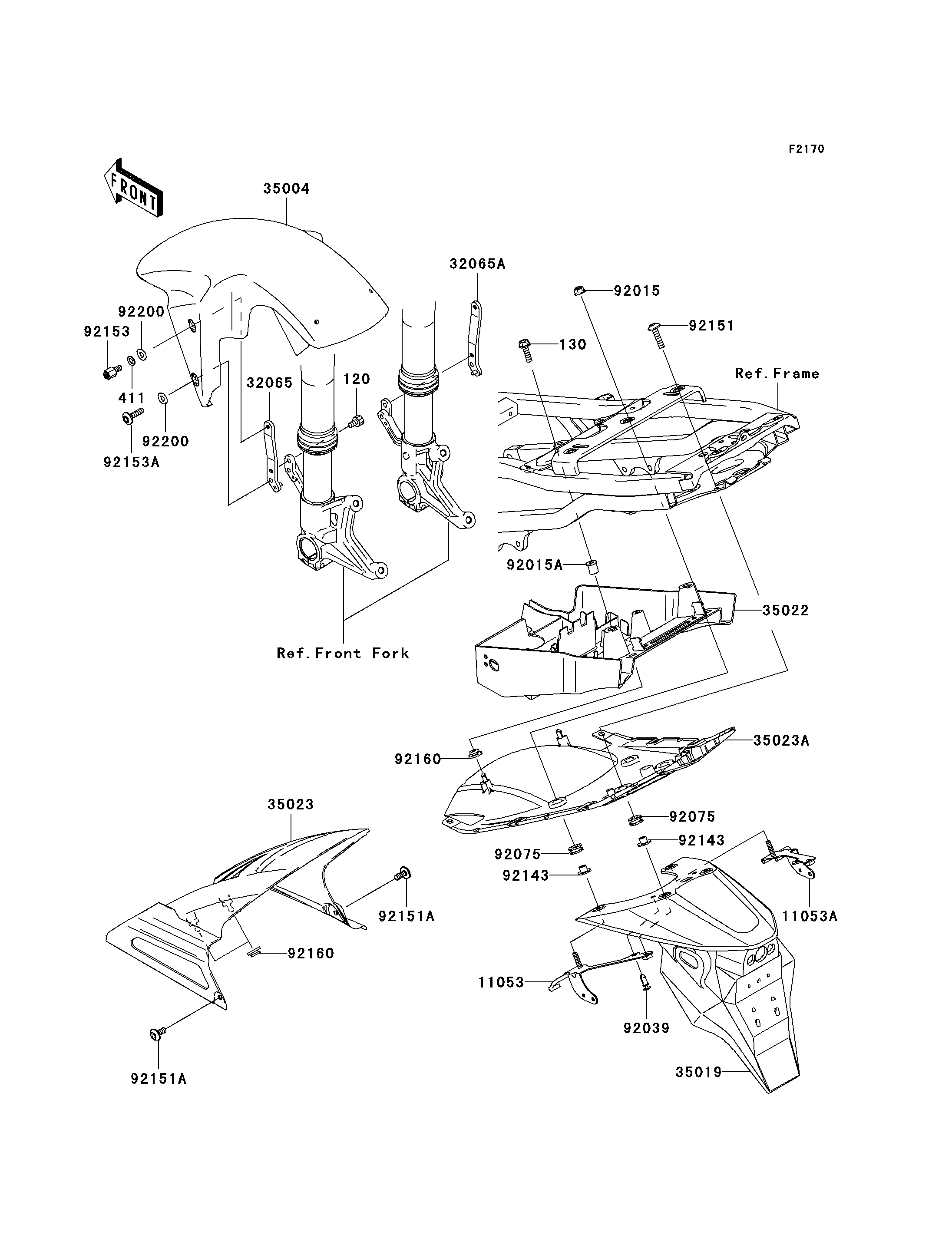

2004 Ninja® ZX™-6RR - Fenders

DOWNLOAD PDF
SELECT A NEW PART
120
130
411
11053
11053A
32065
32065A
35004
35019
35022
35023
35023A
92015
92015A
92039
92075
92075
92143
92143
92151
92151A
92151A
92153
92153A
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0610 2
BOLT-FLANGED 130 130L0620 2
WASHER-PLAIN,6MM,BLACK 411 411F0600 2
BRACKET,FLAP,LH 11053 11053-0060 1
BRACKET,FLAP,RH 11053A 11053-0061 1
BRACKET-FENDER,LH 32065 32065-1376 1
BRACKET-FENDER,RH 32065A 32065-1377 1
FENDER-FRONT,L.GREEN 35004 35004-0024-7F 1
FLAP,REAR FENDER 35019 35019-1400 1
FENDER-COMP-REAR,FR 35022 35022-0015 1
FENDER-REAR,INNER,EBONY 35023 35023-1597-6C 1
FENDER-REAR,CNT,L.GREEN 35023A 35023-1601-7F 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
NUT,RUBBER,6MM 92015A 92015-1692 2
RIVET 92039 92039-1286 2
DAMPER 92075 92075-1634 4
COLLAR 92143 92143-1962 4
BOLT,SOCKET,6X25 92151 92151-1611 2
BOLT,SOCKET,6X14 92151A 92151-1654 2
BOLT,6MM 92153 92153-0335 2
BOLT,SOCKET,6X23 92153A 92153-1267 2
DAMPER 92160 92160-1613 4
WASHER,6.5X14X1 92200 92200-1388 4
