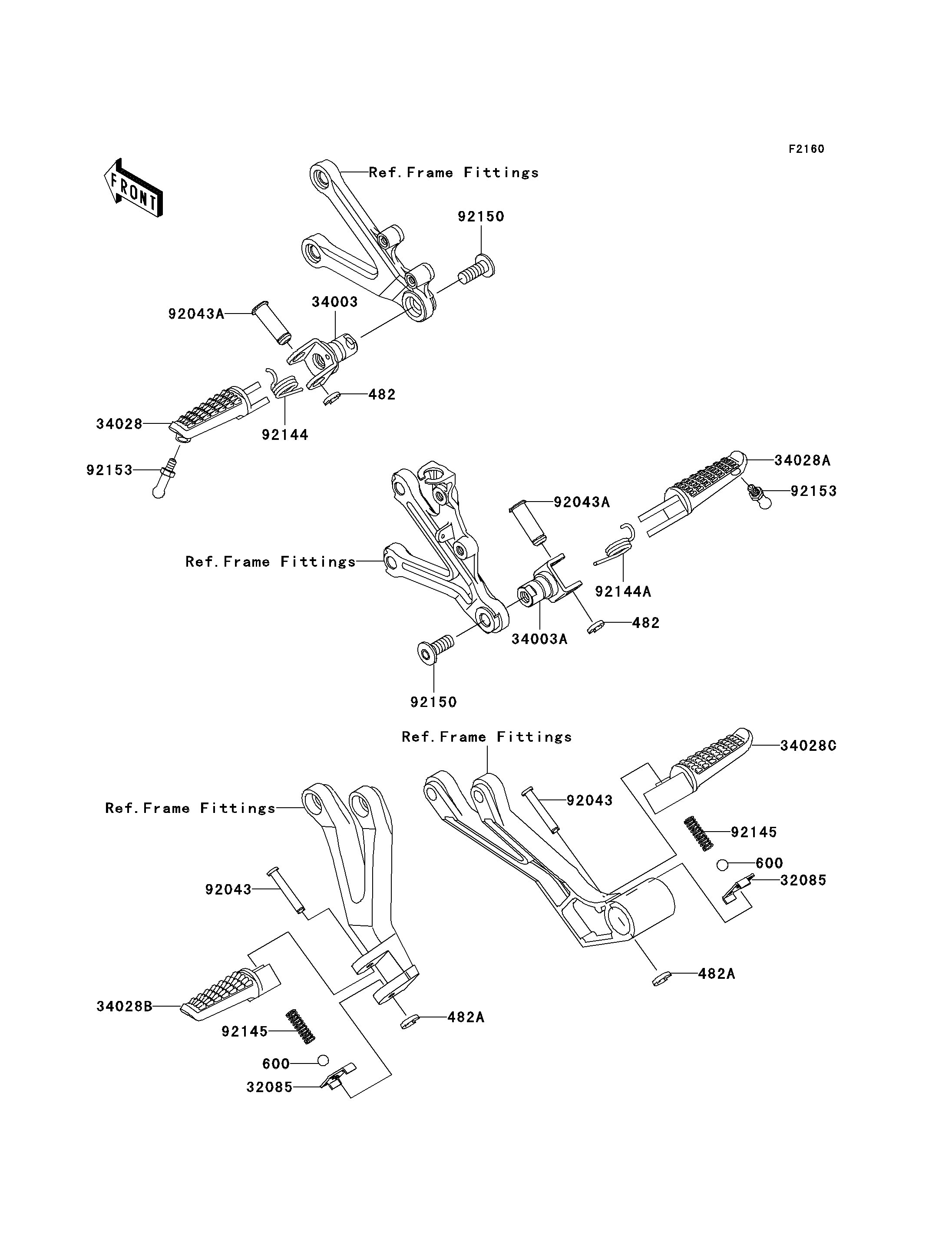

2004 Ninja® ZX™-6RR - Footrests

DOWNLOAD PDF
SELECT A NEW PART
482
482
482A
482A
600
600
32085
32085
34003
34003A
34028
34028A
34028B
34028C
92043
92043
92043A
92043A
92144
92144A
92145
92145
92150
92150
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-E,10MM 482 482L0100 2
CIRCLIP-TYPE-E,5MM 482A 482L5000 2
BALL-STEEL,1/4" 600 600A0800 2
STOPPER,REAR STEP 32085 32085-0014 2
HOLDER-STEP,FR,LH 34003 34003-1525 1
HOLDER-STEP,FR,RH 34003A 34003-1526 1
STEP,FR,LH 34028 34028-0002 1
STEP,FR,RH 34028A 34028-0003 1
STEP,RR,LH 34028B 34028-1480 1
STEP,RR,RH 34028C 34028-1481 1
PIN,6X40 92043 92043-1595 2
PIN,12X35.5 92043A 92043-1701 2
SPRING,STEP RETURN 92144 92144-1567 1
SPRING,STEP RETURN 92144A 92144-1568 1
SPRING 92145 92145-1319 2
BOLT,SOCKET,10X25 92150 92150-1268 2
BOLT,BANK SENSOR 92153 92153-0303 2
