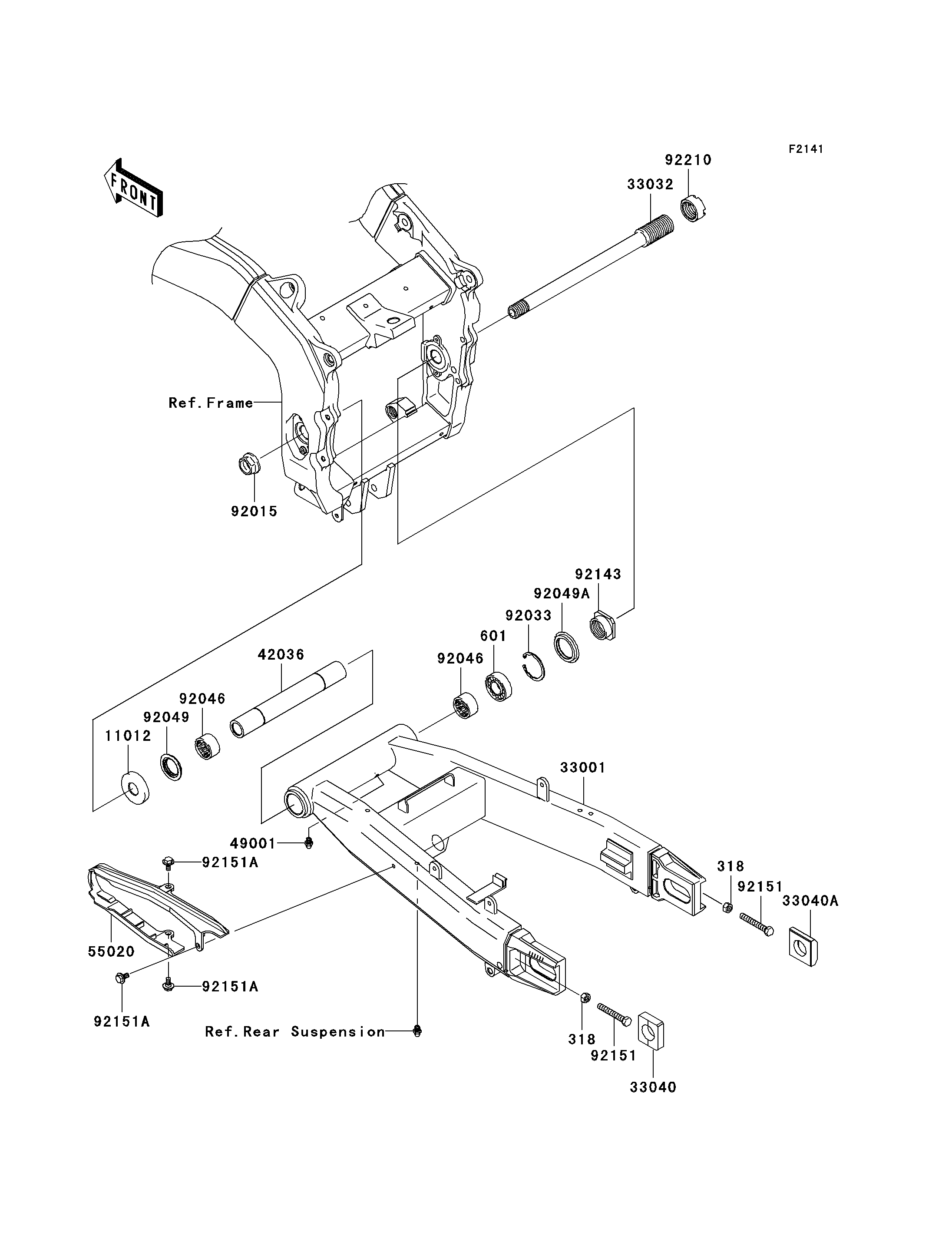

2004 Ninja® ZX™-6RR - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
318
318
601
11012
33001
33032
33040
33040A
42036
49001
55020
92015
92033
92046
92046
92049
92049A
92143
92151
92151
92151A
92151A
92151A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-SMALL,8MM 318 318G0800 2
BEARING-BALL,#6004 601 601A6004 1
CAP 11012 11012-1658 1
ARM-COMP-SWING,F.S.BLACK 33001 33001-1636-8F 1
SHAFT-SWING ARM 33032 33032-0003 1
ADJUSTER-CHAIN 33040 33040-1114 1
ADJUSTER-CHAIN,RH 33040A 33040-1180 1
SLEEVE,SWING ARM,L=213 42036 42036-1283 1
NIPPLE-GREASE 49001 49001-0001 1
GUARD,CHAIN 55020 55020-1806 1
NUT,FLANGED,20MM 92015 92015-1724 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-NEEDLE,BM2817 92046 92046-1111 2
SEAL-OIL 92049 92049-1181 1
SEAL-OIL,MHA 35 42 5.7F 92049A 92049-1380 1
COLLAR,SWING ARM PIVOT,RH 92143 92143-1973 1
BOLT,8X55 92151 92151-1578 2
BOLT,6MM 92151A 92151-1703 3
NUT,M28X1.0 92210 92210-1347 1
