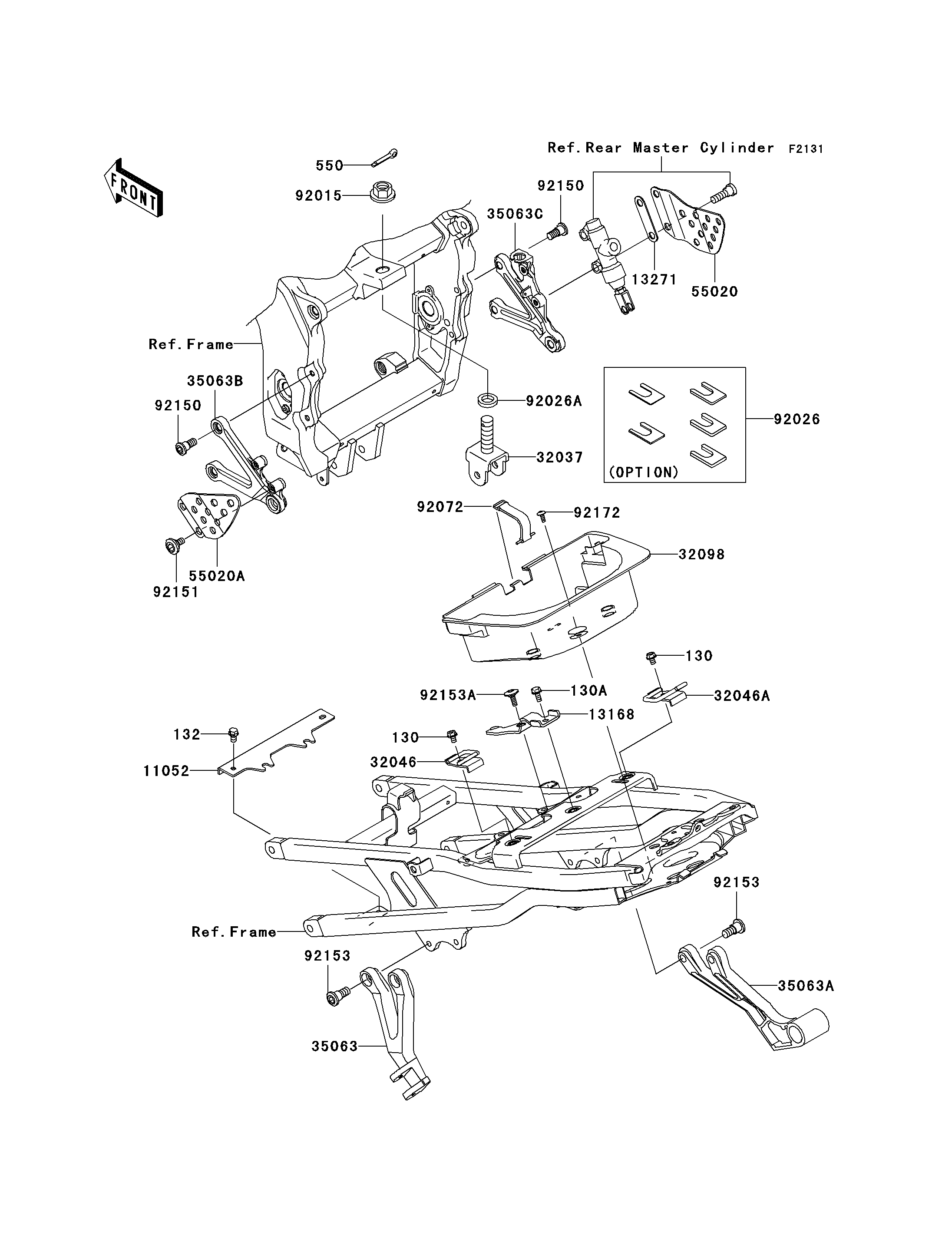

2004 Ninja® ZX™-6RR - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
132
550
11052
13168
13271
32037
32046
32046A
32098
35063
35063A
35063B
35063C
55020
55020A
92015
92026
92026A
92072
92150
92150
92151
92153
92153
92153A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 2
BOLT-FLANGED,6X16,BLACK 130A 130J0616 1
BOLT-FLANGED-SMALL,6X10 132 132J0610 2
PIN-COTTER,4.0X25 550 550D4025 1
BRACKET,BATTERY CASE 11052 11052-1951 1
LEVER,FRONT SEAT 13168 13168-1765 1
PLATE,FOOT GUARD 13271 13271-0104 1
BRACKET-SHOCKABSORBER 32037 32037-1887 1
BRACKET-SEAT,LH 32046 32046-1522 1
BRACKET-SEAT,RH 32046A 32046-1523 1
CASE-TOOL 32098 32098-1144 1
STAY,RR STEP,LH,P.SILVER 35063 35063-0031-458 1
STAY,RR STEP,RH,P.SILVER 35063A 35063-0032-458 1
STAY,FRONT STEP,LH,P.SILVER 35063B 35063-0037-458 1
STAY,FRONT STEP,RH,P.SILVER 35063C 35063-1257-458 1
GUARD,FR STEP STAY,RH 55020 55020-0025 1
GUARD,FR STEP STAY,LH 55020A 55020-1627 1
NUT,FLANGED,16MM 92015 92015-1881 1
SPACER,SET 92026 92026-1586 1 (OPTION)
SPACER,16.5X26X6 92026A 92026-1594 1
BAND,TOOL 92072 92072-1349 1
BOLT,SOCKET,8X20 92150 92150-1839 4
BOLT,6MM 92151 92151-1334 2
BOLT,SOCKET,8X20 92153 92153-0412 4
BOLT,SOCKET,6X18 92153A 92153-1262 1
SCREW,5X12 92172 92172-0008 1
