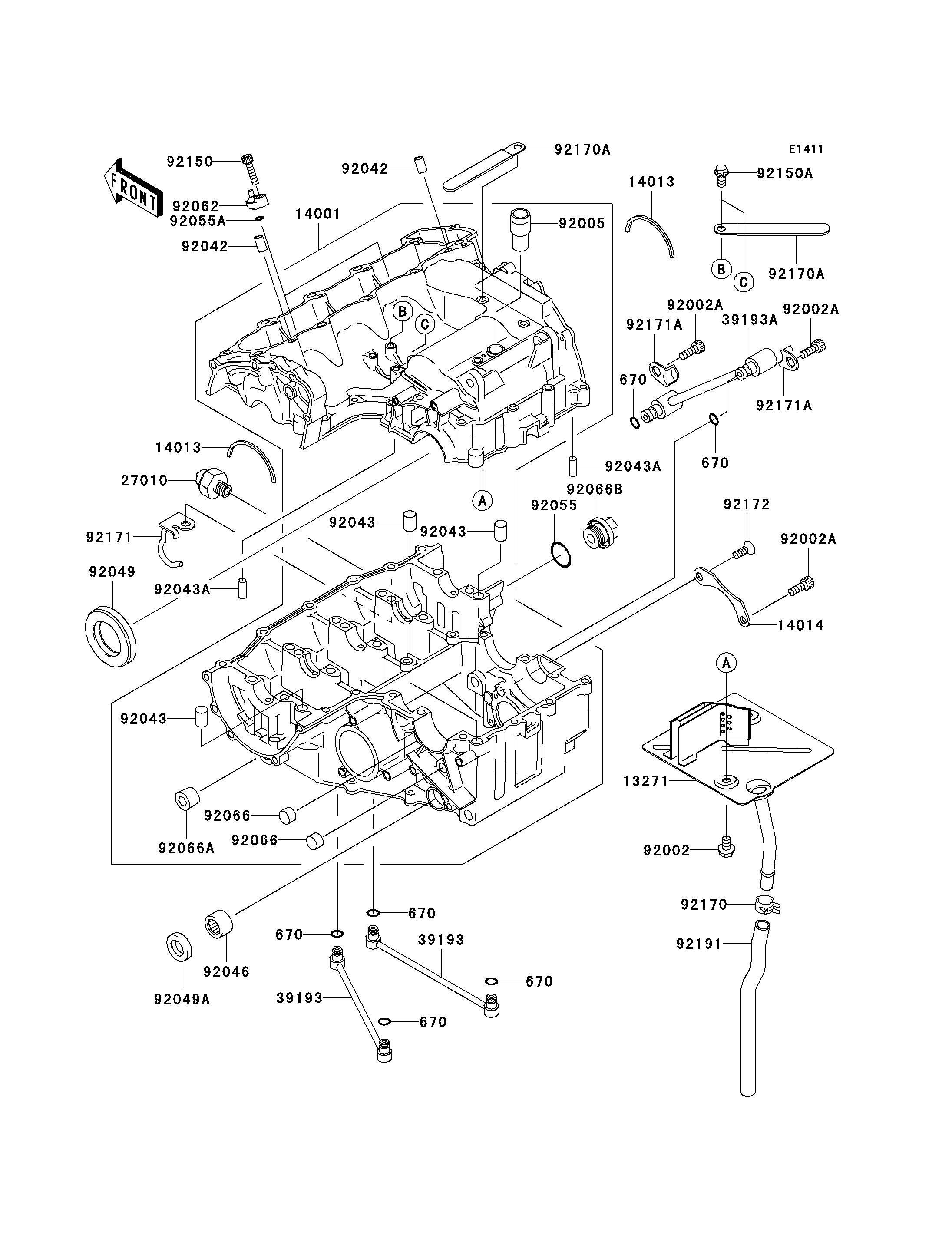

2004 Ninja® ZX™-6RR - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
670
670
670
670
670
670
13271
14001
14013
14013
14014
27010
39193
39193
39193A
92002
92002A
92002A
92002A
92005
92042
92042
92043
92043
92043
92043A
92043A
92046
92049
92049A
92055
92055A
92062
92066
92066
92066A
92066B
92150
92150A
92170
92170A
92170A
92171
92171A
92171A
92172
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 670 670D1505 6
PLATE,BREATHER 13271 13271-0115 1
SET-CRANKCASE 14001 14001-0034 1
RING-POSITION 14013 14013-004 2
PLATE-POSITION 14014 14014-1123 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE-OIL,MAIN-INPUT 39193 39193-1019 2
PIPE-OIL 39193A 39193-1020 1
BOLT,6X10 92002 92002-1449 2
BOLT,SOCKET,6X16 92002A 92002-1778 3
FITTING,BREATHER 92005 92005-1238 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN 92043 92043-1506 3
PIN,6X16 92043A 92043-1690 2
BEARING-NEEDLE,7E-HK1412 92046 92046-037 1
SEAL-OIL,TC32528 92049 92049-1307 1
SEAL-OIL,TC14245 92049A 92049-1520 1
RING-O 92055 92055-1146 1
RING-O,5.5X1.5 92055A 92055-1343 2
NOZZLE,OIL JET 92062 92062-1092 2
PLUG 92066 92066-1110 2
PLUG,PT3/8X12 92066A 92066-1252 1
PLUG,MAIN GALLERY,18X9 92066B 92066-1394 1
BOLT,SOCKET,5X20 92150 92150-1019 2
BOLT,6X12 92150A 92150-1841 2
CLAMP 92170 92170-1167 1
CLAMP 92170A 92170-1925 2
CLAMP 92171 92171-0041 1
CLAMP,OIL PIPE 92171A 92171-0302 2
SCREW,6X16 92172 92172-0090 1
TUBE,BREATHER 92191 92191-1790 1
