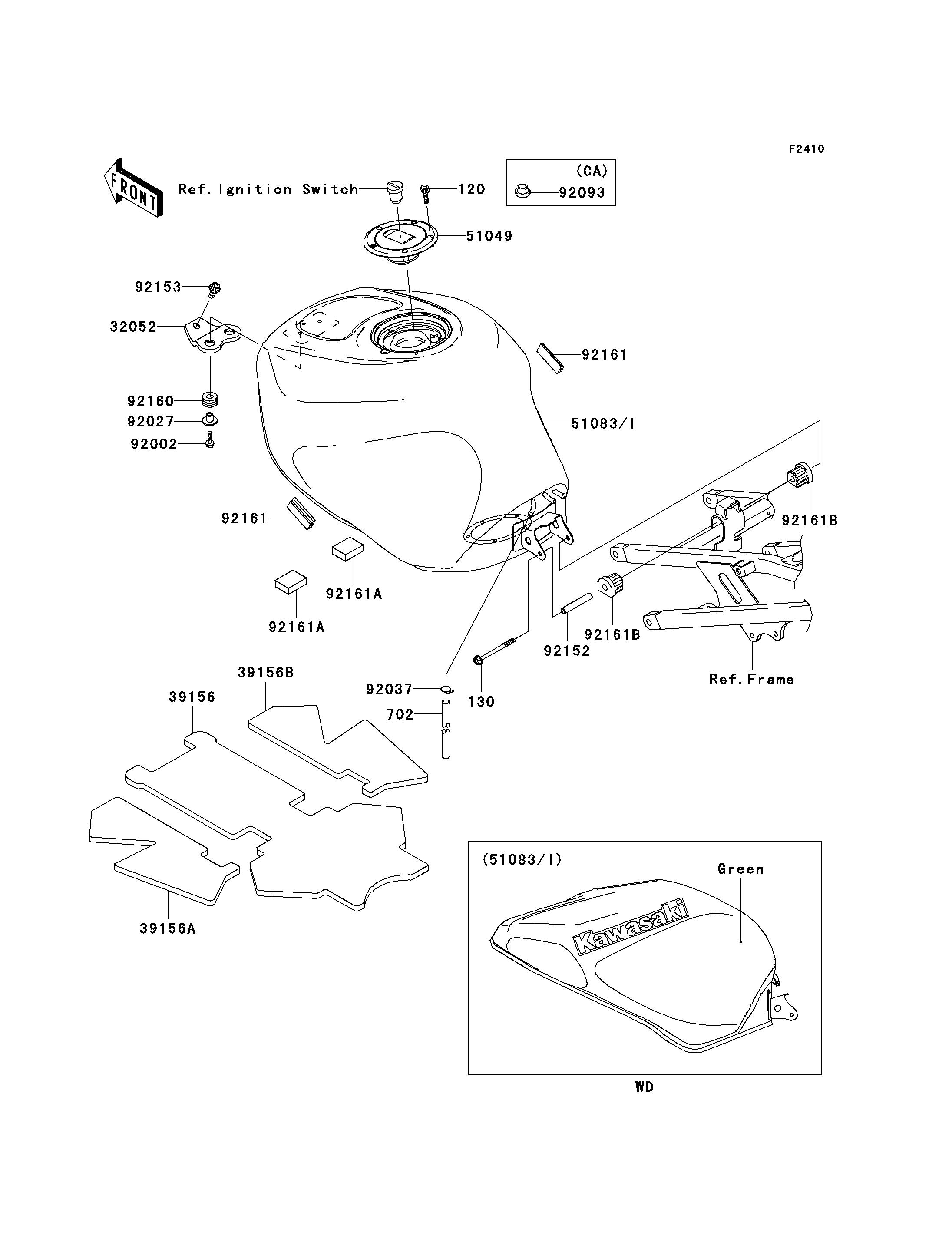

2003 Ninja® ZX™-6RR - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
120
130
702
32052
39156
39156A
39156B
51049
92002
92027
92037
92152
92153
92160
92161
92161
92161A
92161A
92161B
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0516 3
BOLT-FLANGED,6X70,BLACK 130 130J0670 1
TUBE-RUBBER,6X850 702 702A06850 1
BRACKET-TANK,FR 32052 32052-1572 1
PAD,FUEL TANK,CNT 39156 39156-0015 1
PAD,FUEL TANK,LH 39156A 39156-0016 1
PAD,FUEL TANK,RH 39156B 39156-0017 1
CAP-TANK,FUEL 51049 51049-1127 1
BOLT,6X20 92002 92002-1237 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037 92037-010 1
COLLAR,6.8X10X60 92152 92152-1182 1
BOLT,SOCKET,8X16 92153 92153-0327 1
DAMPER 92160 92160-1162 2
DAMPER,FUEL TANK 92161 92161-0057 2
DAMPER 92161A 92161-0066 2
DAMPER,FUEL TANK,RR 92161B 92161-1330 2
TANK-COMP-FUEL,L.GREEN 51083 51083-5001-7F 1 CNUS
TANK-COMP-FUEL,L.GREEN 51083I 51083-5012-7F 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
