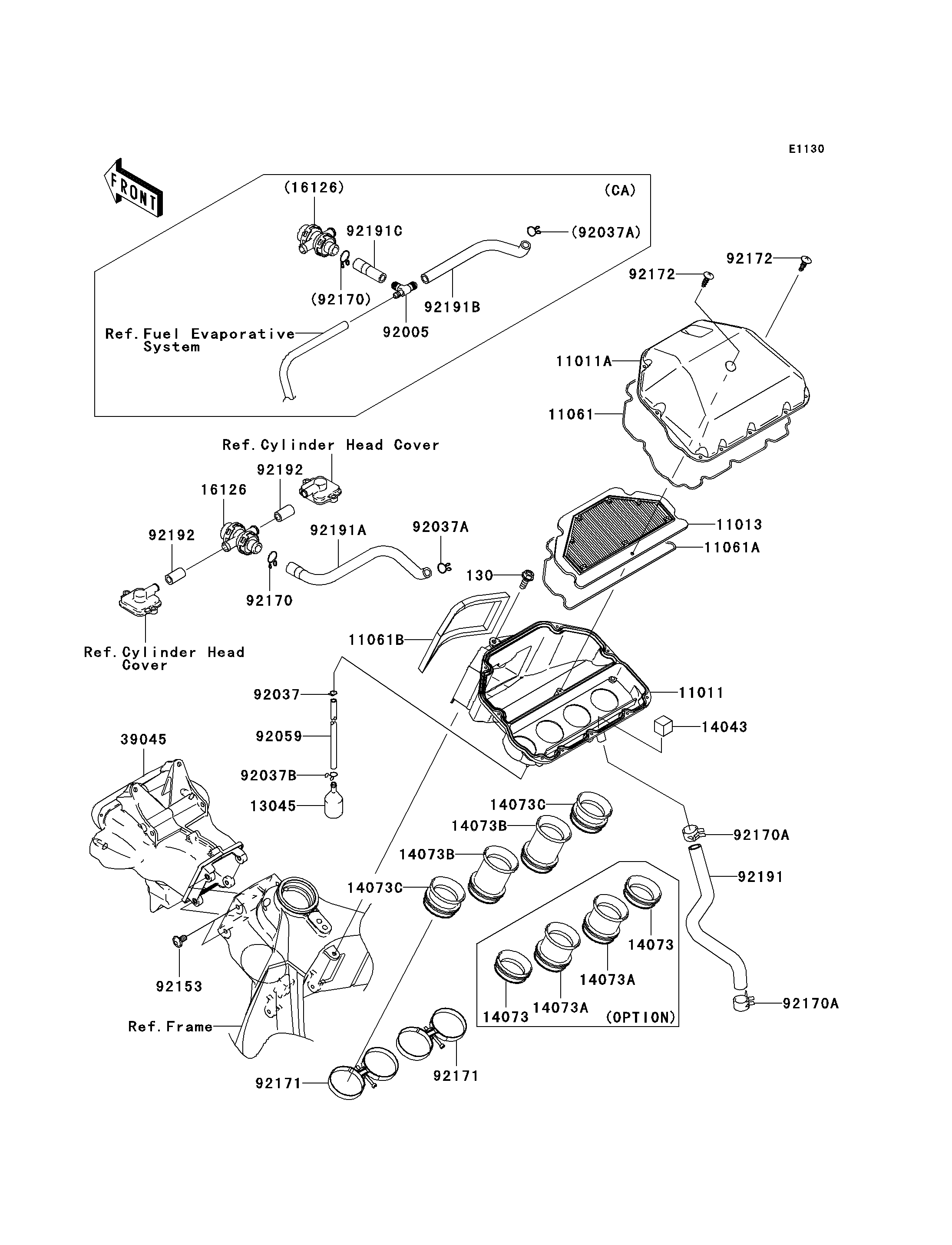

2003 Ninja® ZX™-6RR - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
130
11011
11011A
11013
11061
11061A
11061B
13045
14043
14073
14073
14073A
14073A
14073B
14073B
14073C
14073C
16126
39045
92037
92037A
92037B
92059
92153
92170
92170A
92170A
92171
92171
92172
92172
92191
92192
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130L0616 1
CASE-AIR FILTER,LWR 11011 11011-0004 1
CASE-AIR FILTER,UPP 11011A 11011-1663 1
ELEMENT-AIR FILTER 11013 11013-1301 1
GASKET,CASE 11061 11061-1162 1
GASKET,ELEMENT 11061A 11061-1163 1
GASKET 11061B 11061-1164 1
RECEIVER-OIL 13045 13045-1057 1
FILTER 14043 14043-0003 1
DUCT,L=10.8 14073 14073-0009 2 (OPTION)
DUCT,L=50.8 14073A 14073-0010 2 (OPTION)
DUCT,#2&#3 14073B 14073-1844 2
DUCT,#1&#4 14073C 14073-1845 2
VALVE,AIR SWITCH 16126 16126-1433 1
DUCT-ASSY 39045 39045-1071 1
CLAMP,TUBE 92037 92037-010 1
CLAMP 92037A 92037-1593 1
CLAMP 92037B 92037-1712 1
TUBE,6X9X360 92059 92059-103 1
BOLT,6X12 92153 92153-1275 4
CLAMP 92170 92170-1017 1
CLAMP 92170A 92170-1060 2
CLAMP,FUNNEL TIGHTEN 92171 92171-0124 2
SCREW 92172 92172-1072 10
TUBE,BLOWBY 92191 92191-1780 1
TUBE,10X16X29 92192 92192-0009 2
FITTING 92005 92005-1402 1 CA
TUBE,AIR FILTER-SWITCH 92191A 92191-1781 1 CNUS
TUBE,AIR FILTER-FITTING 92191B 92191-1812 1 CA
TUBE,FITTING-AIR SWITCH 92191C 92191-1813 1 CA
