Parts Diagrams |

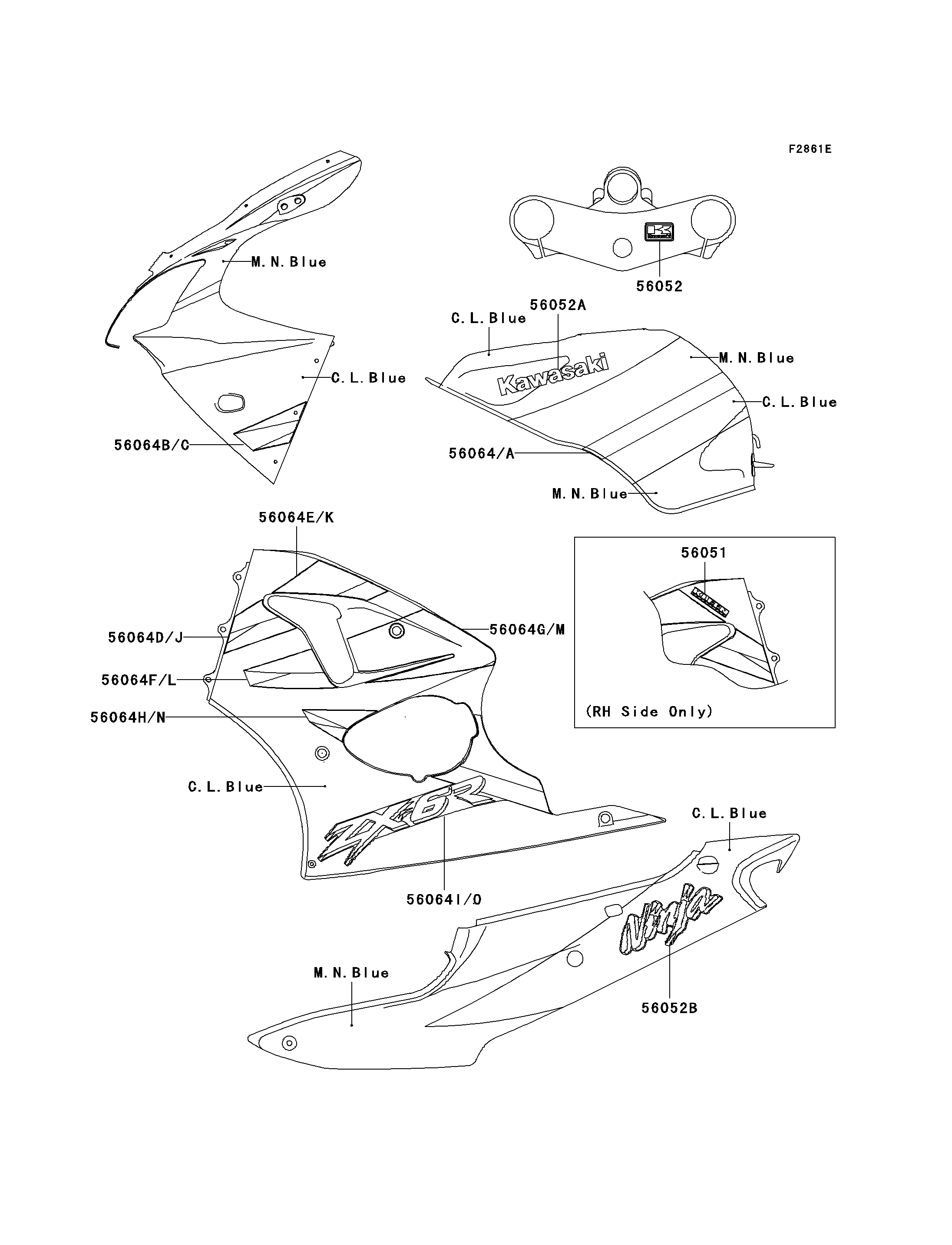

2001 Ninja® ZX™-6R - Decals(Blue/Blue)(CN)(ZX600-J2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KLEEN | 56051 | 56051-1801 | 1 | CN | |
| MARK,K.KAWASAKI | 56052 | 56052-1202 | 1 | CN | |
| MARK,FUEL TANK,KAWASAKI | 56052A | 56052-1354 | 2 | CN | |
| MARK,SIDE COVER,NINJA | 56052B | 56052-1355 | 2 | CN | |
| PATTERN,FUEL TANK,LH | 56064 | 56064-1300 | 1 | CN | |
| PATTERN,FUEL TANK,RH | 56064A | 56064-1301 | 1 | CN | |
| PATTERN,UPP COWLING,LH | 56064B | 56064-1302 | 1 | CN | |
| PATTERN,UPP COWLING,RH | 56064C | 56064-1303 | 1 | CN | |
| PATTERN,LWR COWLING,UPP,FR,LH | 56064D | 56064-1304 | 1 | CN | |
| PATTERN,LWR COWLING,UPP,RR,LH | 56064E | 56064-1305 | 1 | CN | |
| PATTERN,LWR COWLING,CNT,FR,LH | 56064F | 56064-1306 | 1 | CN | |
| PATTERN,LWR COWLING,CNT,RR,LH | 56064G | 56064-1307 | 1 | CN | |
| PATTERN,LWR COWLING,LWR,FR,LH | 56064H | 56064-1308 | 1 | CN | |
| PATTERN,LWR COWLING,LWR,RR,LH | 56064I | 56064-1309 | 1 | CN | |
| PATTERN,LWR COWLING,UPP,FR,RH | 56064J | 56064-1310 | 1 | CN | |
| PATTERN,LWR COWLING,UPP,RR,RH | 56064K | 56064-1311 | 1 | CN | |
| PATTERN,LWR COWLING,CNT,FR,RH | 56064L | 56064-1312 | 1 | CN | |
| PATTERN,LWR COWLING,CNT,RR,RH | 56064M | 56064-1313 | 1 | CN | |
| PATTERN,LWR COWLING,LWR,FR,RH | 56064N | 56064-1314 | 1 | CN | |
| PATTERN,LWR COWLING,LWR,RR,RH | 56064O | 56064-1315 | 1 | CN |
| MARK,KLEEN | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,K.KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COVER,NINJA | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56064B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56064C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,FR,LH | |
| REF # | 56064D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,RR,LH | |
| REF # | 56064E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,CNT,FR,LH | |
| REF # | 56064F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,CNT,RR,LH | |
| REF # | 56064G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,FR,LH | |
| REF # | 56064H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,RR,LH | |
| REF # | 56064I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,FR,RH | |
| REF # | 56064J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,RR,RH | |
| REF # | 56064K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,CNT,FR,RH | |
| REF # | 56064L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,CNT,RR,RH | |
| REF # | 56064M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,FR,RH | |
| REF # | 56064N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,RR,RH | |
| REF # | 56064O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
