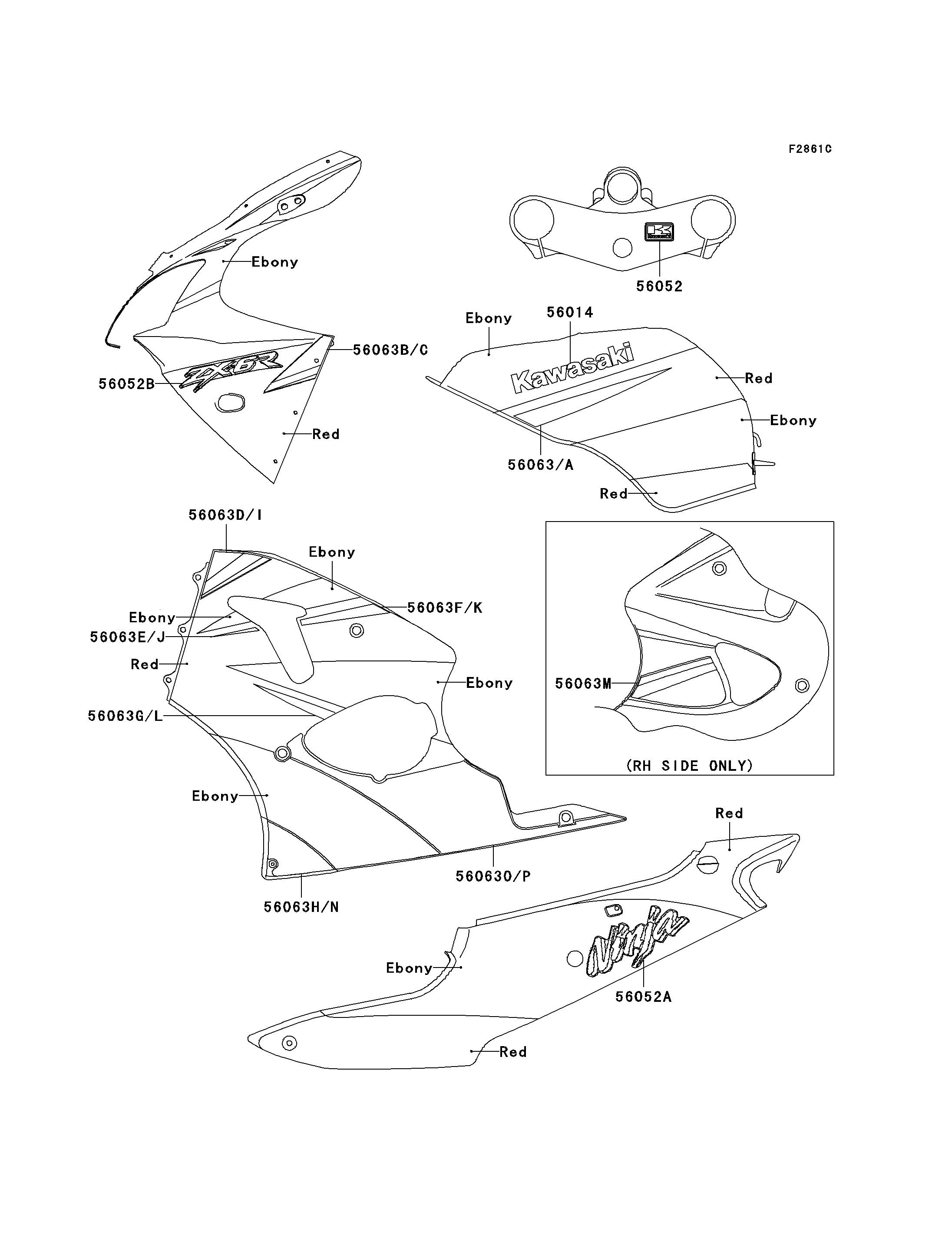

2000 Ninja® ZX™-6R - Decals(Red/Ebony)(CN)(ZX600-J1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1181 | 2 | CN | |
| MARK,K.KAWASAKI | 56052 | 56052-1202 | 1 | CN | |
| MARK,SIDE COVER,NINJA | 56052A | 56052-1224 | 2 | CN | |
| MARK,UPP COWLING,ZX-6R | 56052B | 56052-1225 | 2 | CN | |
| PATTERN,FUEL TANK,LH | 56063 | 56063-1607 | 1 | CN | |
| PATTERN,FUEL TANK,RH | 56063A | 56063-1608 | 1 | CN | |
| PATTERN,UPP COWLING,LH | 56063B | 56063-1609 | 1 | CN | |
| PATTERN,UPP COWLING,RH | 56063C | 56063-1610 | 1 | CN | |
| PATTERN,LWR COWLING,UPP,LH | 56063D | 56063-1611 | 1 | CN | |
| PATTERN,LWR COWLING,DUCT,FR,LH | 56063E | 56063-1612 | 1 | CN | |
| PATTERN,LWR COWLING,DUCT,RR,LH | 56063F | 56063-1613 | 1 | CN | |
| PATTERN,LWR COWLING,CNT,FR,LH | 56063G | 56063-1614 | 1 | CN | |
| PATTERN,LWR COWLING,LWR,FR,LH | 56063H | 56063-1615 | 1 | CN | |
| PATTERN,LWR COWLING,UPP,RH | 56063I | 56063-1617 | 1 | CN | |
| PATTERN,LWR COWLING,DUCT,FR,RH | 56063J | 56063-1618 | 1 | CN | |
| PATTERN,LWR COWLING,DUCT,RR,RH | 56063K | 56063-1619 | 1 | CN | |
| PATTERN,LWR COWLING,CNT,FR,RH | 56063L | 56063-1620 | 1 | CN | |
| PATTERN,LWR COWLING,CNT,RR,RH | 56063M | 56063-1621 | 1 | CN | |
| PATTERN,LWR COWLING,LWR,FR,RH | 56063N | 56063-1622 | 1 | CN | |
| PATTERN,LWR COWLING,LWR,RR,RH | 56063O | 56063-1623 | 1 | CN | |
| PATTERN,LWR COWLING,LWR,RR,LH | 56063P | 56063-1726 | 1 | CN |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,K.KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SIDE COVER,NINJA | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,UPP COWLING,ZX-6R | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,LH | |
| REF # | 56063D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,DUCT,FR,LH | |
| REF # | 56063E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,DUCT,RR,LH | |
| REF # | 56063F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,CNT,FR,LH | |
| REF # | 56063G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,FR,LH | |
| REF # | 56063H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,RH | |
| REF # | 56063I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,DUCT,FR,RH | |
| REF # | 56063J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,DUCT,RR,RH | |
| REF # | 56063K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,CNT,FR,RH | |
| REF # | 56063L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,CNT,RR,RH | |
| REF # | 56063M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,FR,RH | |
| REF # | 56063N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,RR,RH | |
| REF # | 56063O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,RR,LH | |
| REF # | 56063P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
