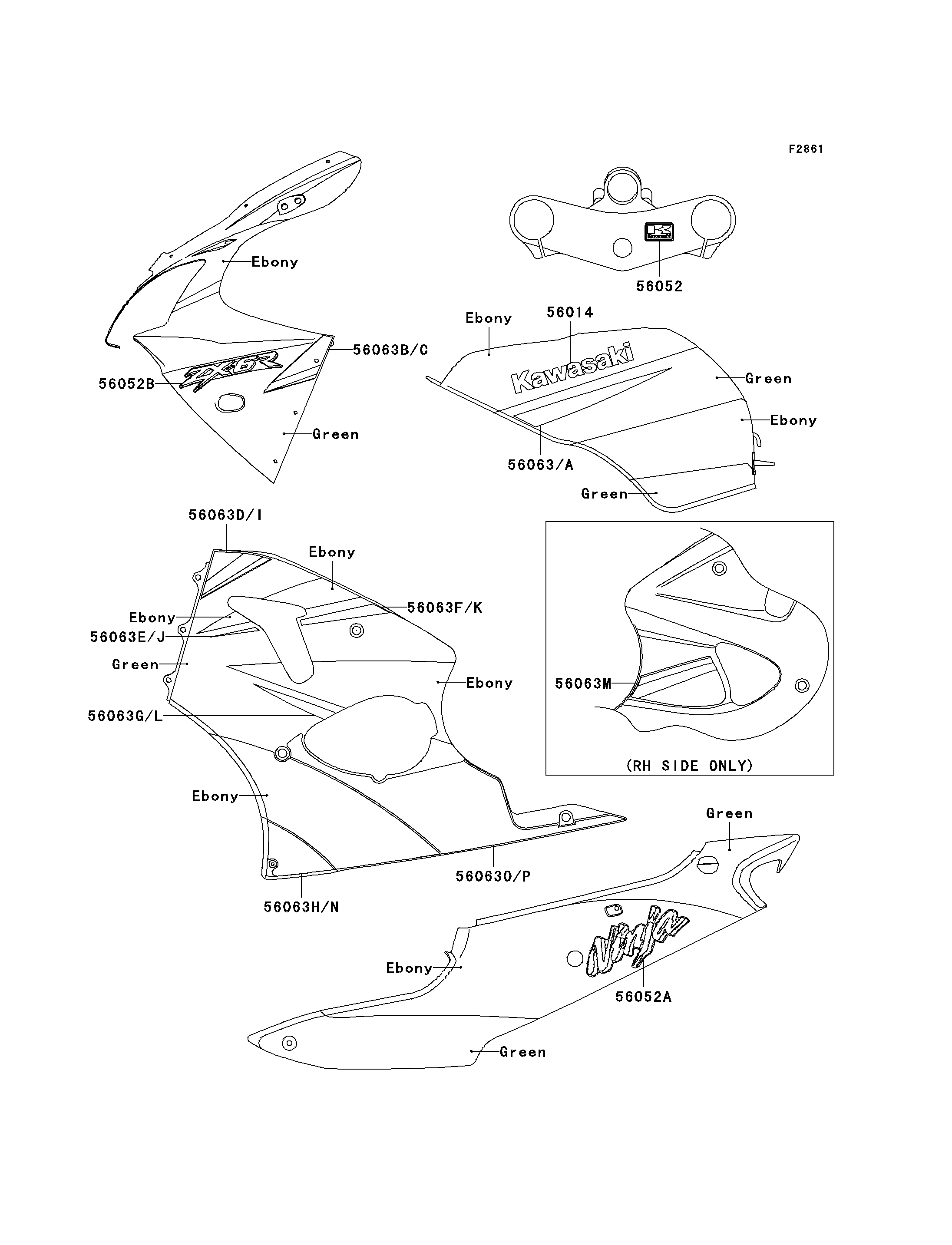

2000 Ninja® ZX™-6R - Decals(Ebony/Green)(ZX600-J1)
56014
56052
56052A
56052B
56063
56063A
56063B
56063C
56063D
56063E
56063F
56063G
56063H
56063I
56063J
56063K
56063L
56063M
56063N
56063O
56063P
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1181 | 2 | ||
| MARK,K.KAWASAKI | 56052 | 56052-1202 | 1 | ||
| MARK,SIDE COVER,NINJA | 56052A | 56052-1219 | 2 | ||
| MARK,UPP COWLING,ZX-6R | 56052B | 56052-1220 | 2 | ||
| PATTERN,FUEL TANK,LH | 56063 | 56063-1590 | 1 | ||
| PATTERN,FUEL TANK,RH | 56063A | 56063-1591 | 1 | ||
| PATTERN,UPP COWLING,LH | 56063B | 56063-1592 | 1 | ||
| PATTERN,UPP COWLING,RH | 56063C | 56063-1593 | 1 | ||
| PATTERN,LWR COWLING,UPP,LH | 56063D | 56063-1594 | 1 | ||
| PATTERN,LWR COWLING,DUCT,FR,LH | 56063E | 56063-1595 | 1 | ||
| PATTERN,LWR COWLING,DUCT,RR,LH | 56063F | 56063-1596 | 1 | ||
| PATTERN,LWR COWLING,CNT,FR,LH | 56063G | 56063-1597 | 1 | ||
| PATTERN,LWR COWLING,LWR,FR,LH | 56063H | 56063-1598 | 1 | ||
| PATTERN,LWR COWLING,UPP,RH | 56063I | 56063-1600 | 1 | ||
| PATTERN,LWR COWLING,DUCT,FR,RH | 56063J | 56063-1601 | 1 | ||
| PATTERN,LWR COWLING,DUCT,RR,RH | 56063K | 56063-1602 | 1 | ||
| PATTERN,LWR COWLING,CNT,FR,RH | 56063L | 56063-1603 | 1 | ||
| PATTERN,LWR COWLING,CNT,RR,RH | 56063M | 56063-1604 | 1 | ||
| PATTERN,LWR COWLING,LWR,FR,RH | 56063N | 56063-1605 | 1 | ||
| PATTERN,LWR COWLING,LWR,RR,RH | 56063O | 56063-1606 | 1 | ||
| PATTERN,LWR COWLING,LWR,RR,LH | 56063P | 56063-1725 | 1 |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,K.KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,NINJA | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWLING,ZX-6R | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56063B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56063C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,LH | |
| REF # | 56063D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,DUCT,FR,LH | |
| REF # | 56063E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,DUCT,RR,LH | |
| REF # | 56063F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,CNT,FR,LH | |
| REF # | 56063G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,FR,LH | |
| REF # | 56063H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,UPP,RH | |
| REF # | 56063I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,DUCT,FR,RH | |
| REF # | 56063J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,DUCT,RR,RH | |
| REF # | 56063K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,CNT,FR,RH | |
| REF # | 56063L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,CNT,RR,RH | |
| REF # | 56063M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,FR,RH | |
| REF # | 56063N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,RR,RH | |
| REF # | 56063O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LWR,RR,LH | |
| REF # | 56063P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
