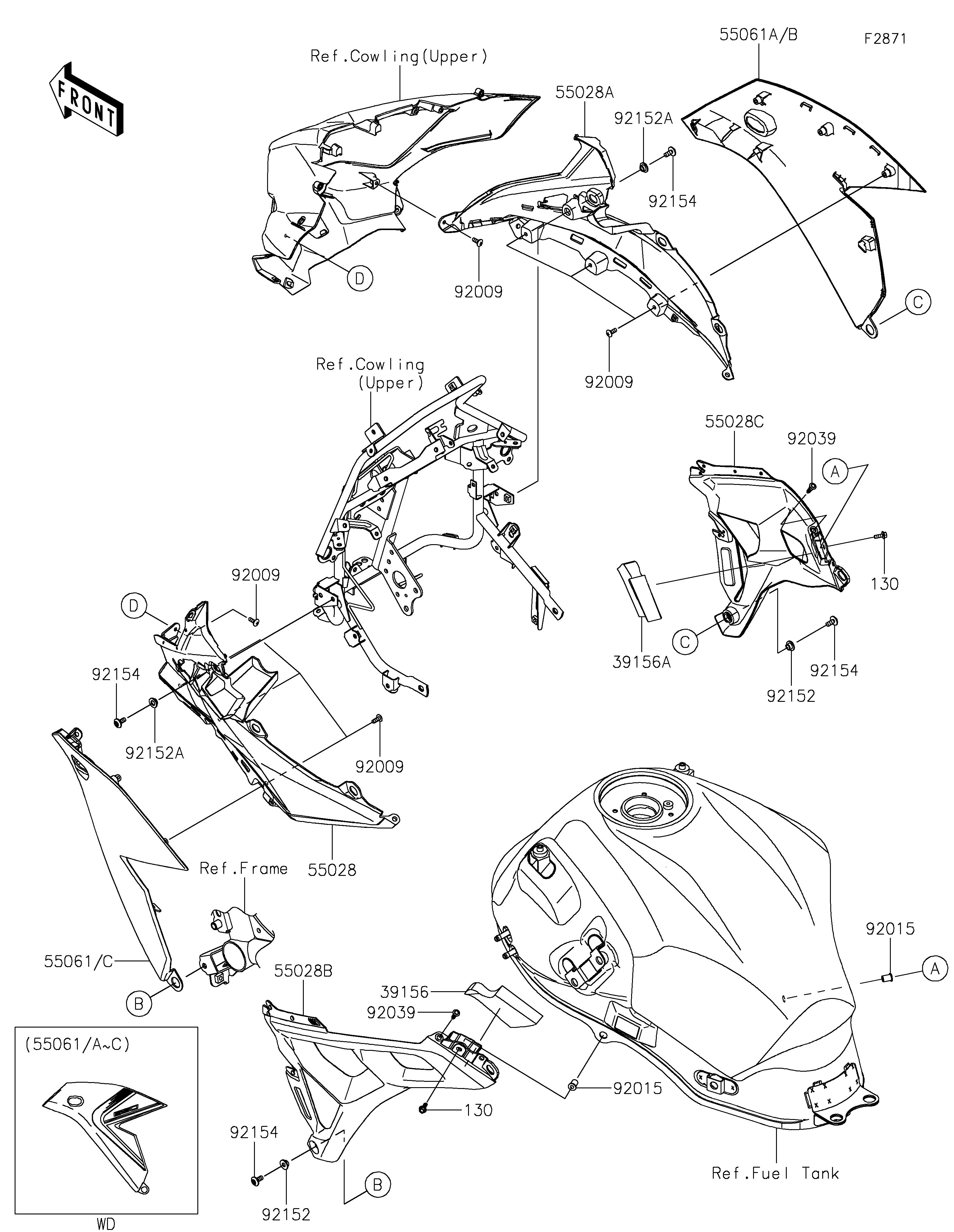

2025 Versys 650 - Cowling(Center)

DOWNLOAD PDF
SELECT A NEW PART
39156
39156A
55028
55028A
55028B
55028C
55061
55061A
55061B
55061C
92009
92009
92009
92009
92015
92015
92039
92039
92152
92152
92152A
92152A
92154
92154
92154
92154
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD,SIDE COWL.,LH 39156 39156-2791 1
PAD,SIDE COWL.,RH 39156A 39156-2792 1
COWLING,SIDE MID,LH 55028 55028-0813 1
COWLING,SIDE MID,RH 55028A 55028-0814 1
COWLING,SIDE RR,LH 55028B 55028-0817 1
COWLING,SIDE RR,RH 55028C 55028-0818 1
COWLING,SIDE,FR,LH,M.S.BLACK 55061 55061-5244-660 1 CN
COWLING,SIDE FR,RH,M.S.BLACK 55061A 55061-5245-660 1 CN
COWLING,SIDE FR,RH,M.S.BLACK 55061B 55061-5309-660 1 CA
COWLING,SIDE,FR,LH,M.S.BLACK 55061C 55061-5310-660 1 CA
SCREW,TAPPING,5X14 92009 92009-1197 8
NUT,WELL,5MM 92015 92015-1757 2
RIVET 92039 92039-0709 2
COLLAR,6.5X10X6.4 92152 92152-2287 2
COLLAR 92152A 92152-2296 2
BOLT,SOCKET,6X14 92154 92154-0932 4
BOLT-FLANGED,5X14 130 130BA0514 2
