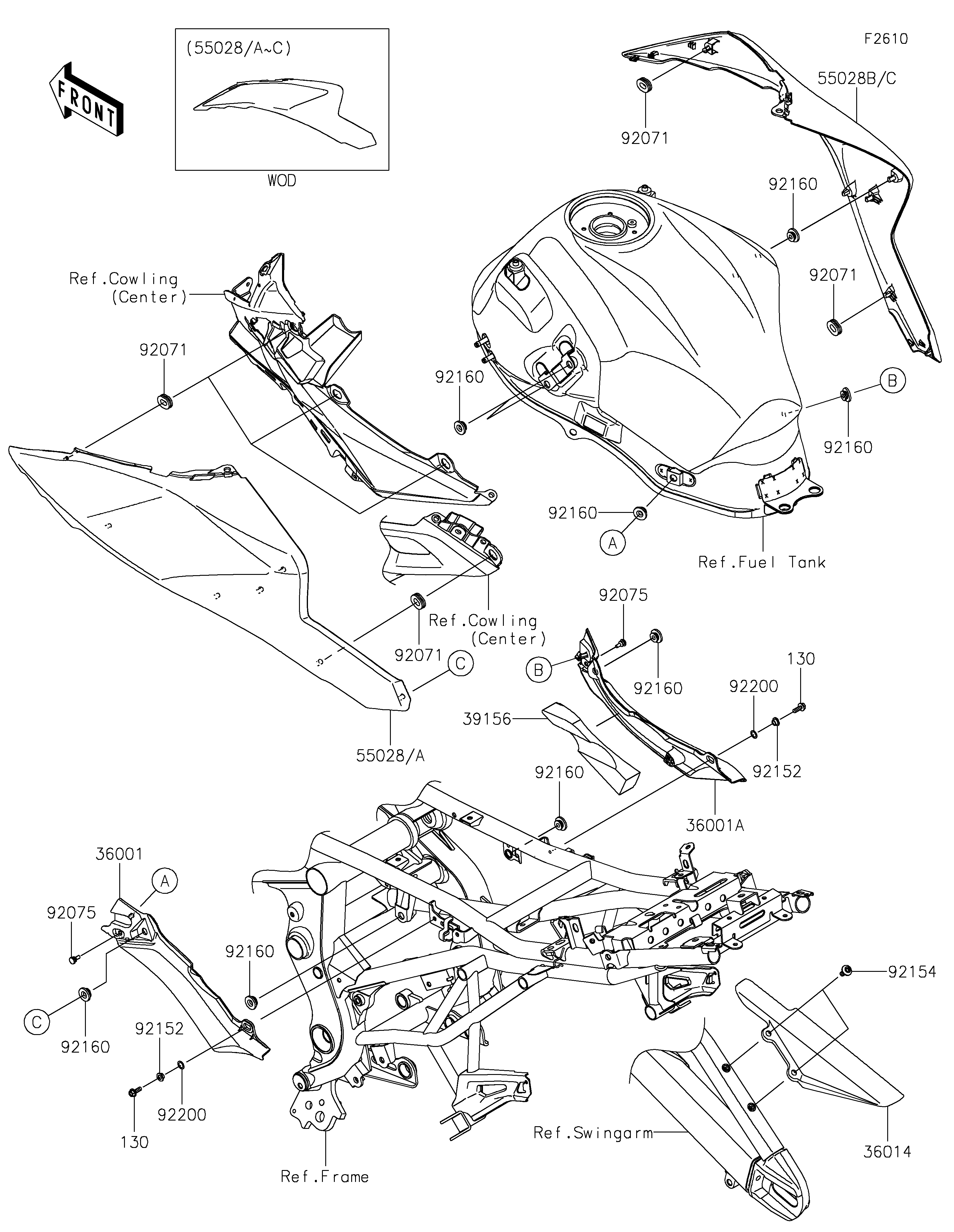

2025 Versys 650 - Side Covers/Chain Cover
36001
36001A
36014
39156
55028
55028A
55028B
55028C
92071
92071
92071
92071
92075
92075
92152
92152
92154
92160
92160
92160
92160
92160
92160
92160
92160
92200
92200
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,M.S.BLACK | 36001 | 36001-0721-660 | 1 | ||
| COVER-SIDE,RH,M.S.BLACK | 36001A | 36001-0722-660 | 1 | ||
| CASE-CHAIN,RR | 36014 | 36014-0018 | 1 | ||
| PAD,SIDE COVER,RH | 39156 | 39156-2790 | 1 | ||
| COWLING,TANK,LH,P.R.WHITE | 55028 | 55028-0811-68N | 1 | CA | |
| COWLING,TANK,LH,M.M.G.GRAY | 55028A | 55028-0811-68P | 1 | CN | |
| COWLING,TANK,RH,P.R.WHITE | 55028B | 55028-0812-68N | 1 | CA | |
| COWLING,TANK,RH,M.M.G.GRAY | 55028C | 55028-0812-68P | 1 | CN | |
| GROMMET,11X23X7 | 92071 | 92071-0762 | 8 | ||
| DAMPER,6X10X15 | 92075 | 92075-1808 | 2 | ||
| COLLAR,5.6X8X5 | 92152 | 92152-2339 | 2 | ||
| BOLT,SOCKET,6X14 | 92154 | 92154-0932 | 2 | ||
| DAMPER | 92160 | 92160-1613 | 10 | ||
| WASHER,8.2X12X0.5 | 92200 | 92200-1887 | 2 | ||
| BOLT-FLANGED,5X14 | 130 | 130BA0514 | 2 |
| COVER-SIDE,LH,M.S.BLACK | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,M.S.BLACK | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN,RR | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,RH | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,TANK,LH,P.R.WHITE | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| COWLING,TANK,LH,M.M.G.GRAY | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COWLING,TANK,RH,P.R.WHITE | |
| REF # | 55028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| COWLING,TANK,RH,M.M.G.GRAY | |
| REF # | 55028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| GROMMET,11X23X7 | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| DAMPER,6X10X15 | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,5.6X8X5 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.2X12X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,5X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
