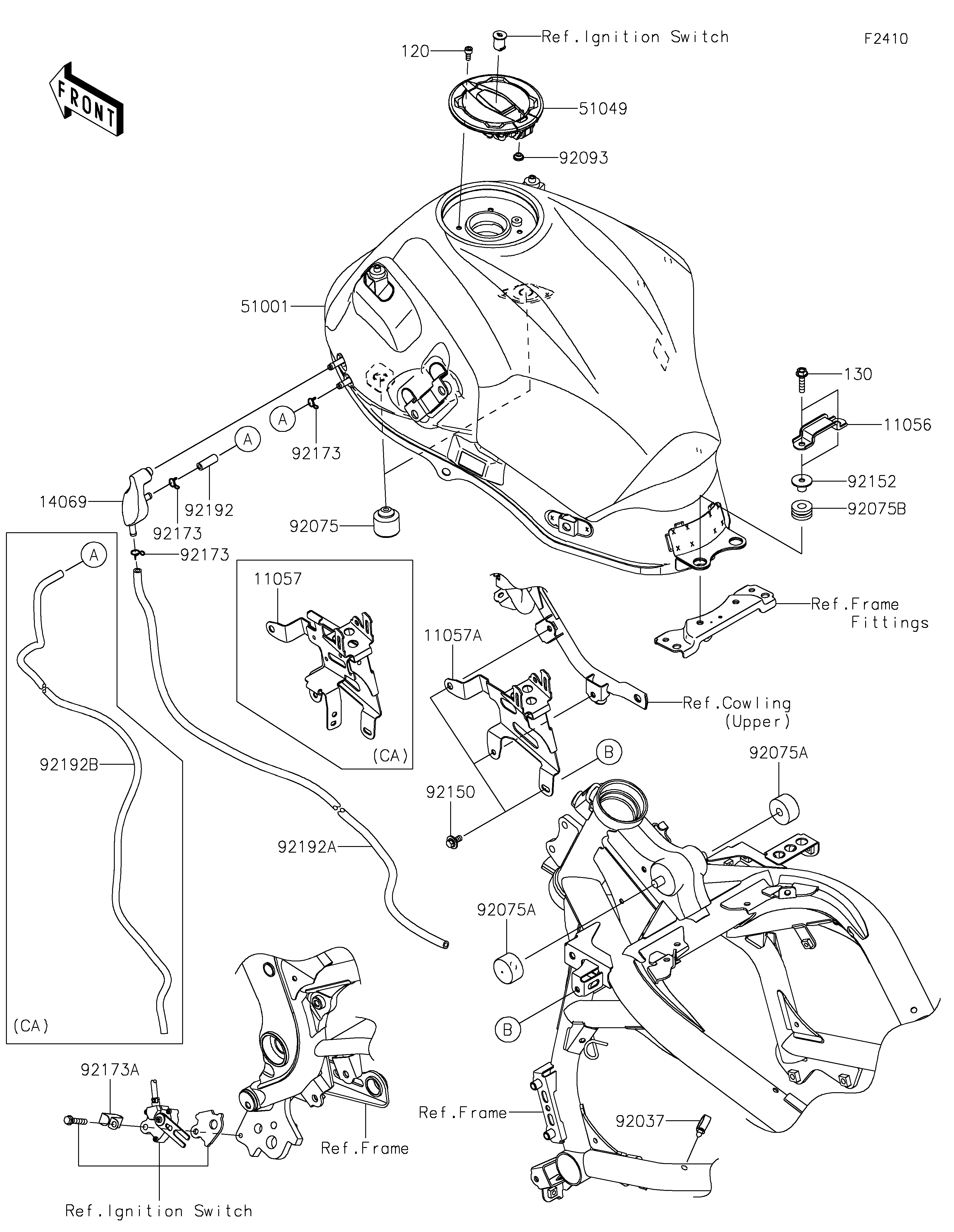

2025 Versys 650 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11056
11057
11057A
14069
51001
51049
92037
92075
92075A
92075A
92075B
92093
92150
92152
92173
92173
92173
92173A
92192
92192A
92192B
120
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT 11056 11056-0361 1
BRACKET,CANISTER 11057 11057-7966 1 CA
BRACKET,GRIP HEATER CONTROLLER 11057A 11057-7967 1 CN
BREATHER 14069 14069-0011 1 CN
TANK-COMP-FUEL,M.S.BLACK 51001 51001-0926-660 1
CAP-TANK,FUEL 51049 51049-0756 1
CLAMP,HOSE 92037 92037-1827 1
DAMPER 92075 92075-1002 2
DAMPER,FUEL TANK 92075A 92075-125 2
DAMPER,10X24X12 92075B 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,FLANGED,6X14 92150 92150-1689 3
COLLAR,6.5X10X13.1 92152 92152-0910 2
CLAMP 92173 92173-0049 1 CA
CLAMP 92173A 92173-0833 1
TUBE,5X9X26 92192 92192-0910 1 CN
TUBE,5X9X900 92192A 92192-1237 1 CN
TUBE,5X9X940&35 92192B 92192-1403 1 CA
BOLT-SOCKET,5X12 120 120CA0512 4
BOLT-FLANGED,6X25 130 130BA0625 2
CLAMP 92173 92173-0049 3 CN
