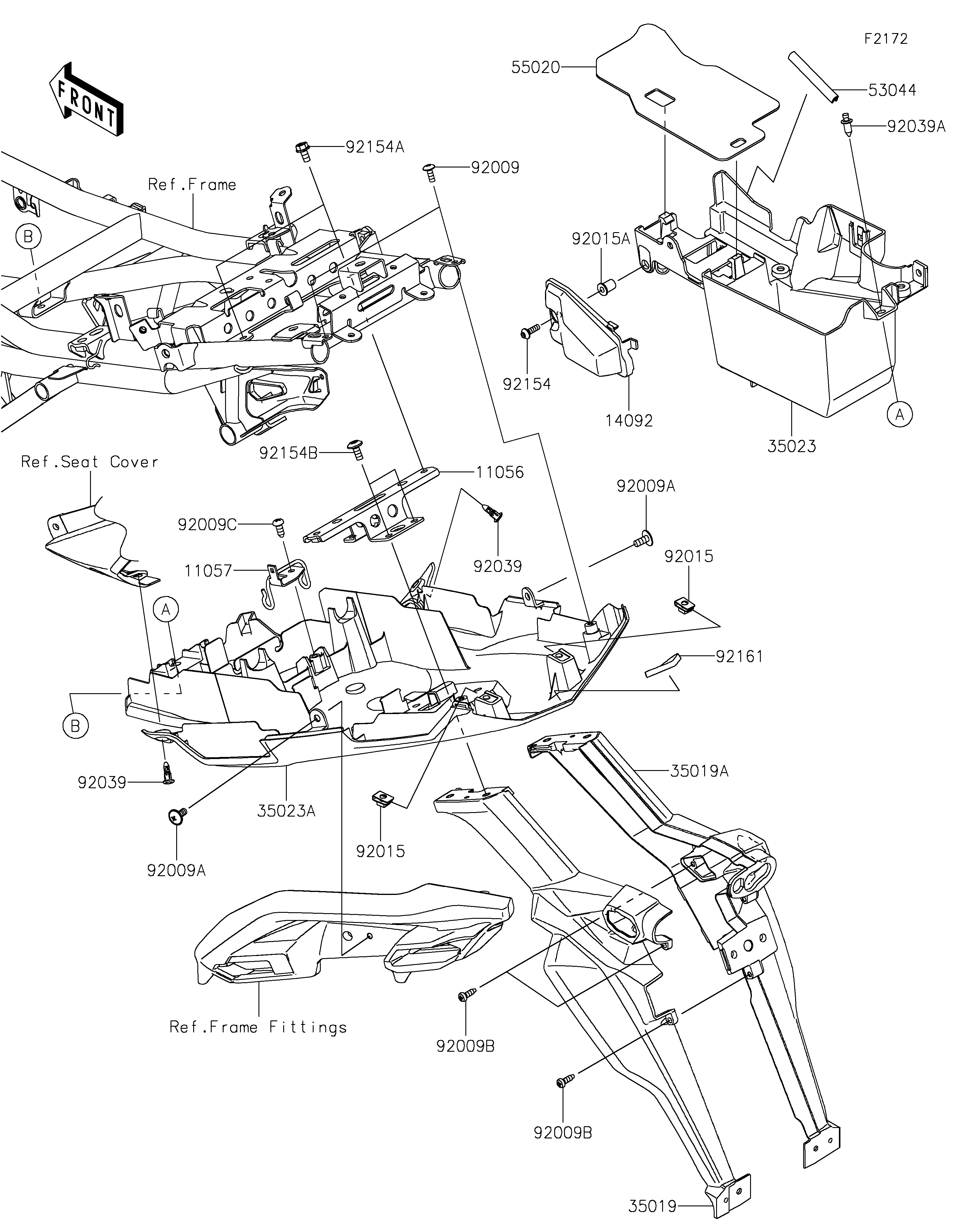

2025 Versys 650 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
11057
14092
35019
35019A
35023
35023A
53044
55020
92009
92009A
92009A
92009B
92009B
92009C
92015
92015
92015A
92039
92039
92039A
92154
92154A
92154B
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FLAP 11056 11056-3973 1
BRACKET,ODB 11057 11057-7856 1
COVER,SWITCH MAINTE. 14092 14092-0174 1
FLAP,LH 35019 35019-0643 1
FLAP,RH 35019A 35019-0644 1
FENDER-REAR,FR 35023 35023-0163 1
FENDER-REAR,RR 35023A 35023-0416 1
TRIM,L=65 53044 53044-0584 1
GUARD,HEAT 55020 55020-0220 1
SCREW,TAPPING,5X14 92009 92009-1197 2
SCREW,6X14 92009A 92009-1662 2
SCREW,TAPPING,5X16 92009B 92009-1984 3
SCREW,6X14 92009C 92009-3845 1
NUT,5MM 92015 92015-1627 2
NUT,WELL,5MM 92015A 92015-1757 1
RIVET 92039 92039-0709 2
RIVET 92039A 92039-1283 1
BOLT,SOCKET,5X16 92154 92154-0182 1
BOLT,FLANGED,6X12 92154A 92154-1050 2
BOLT,SOCKET,6X14 92154B 92154-4285 4
DAMPER,24X66X6.5 92161 92161-1684 1
