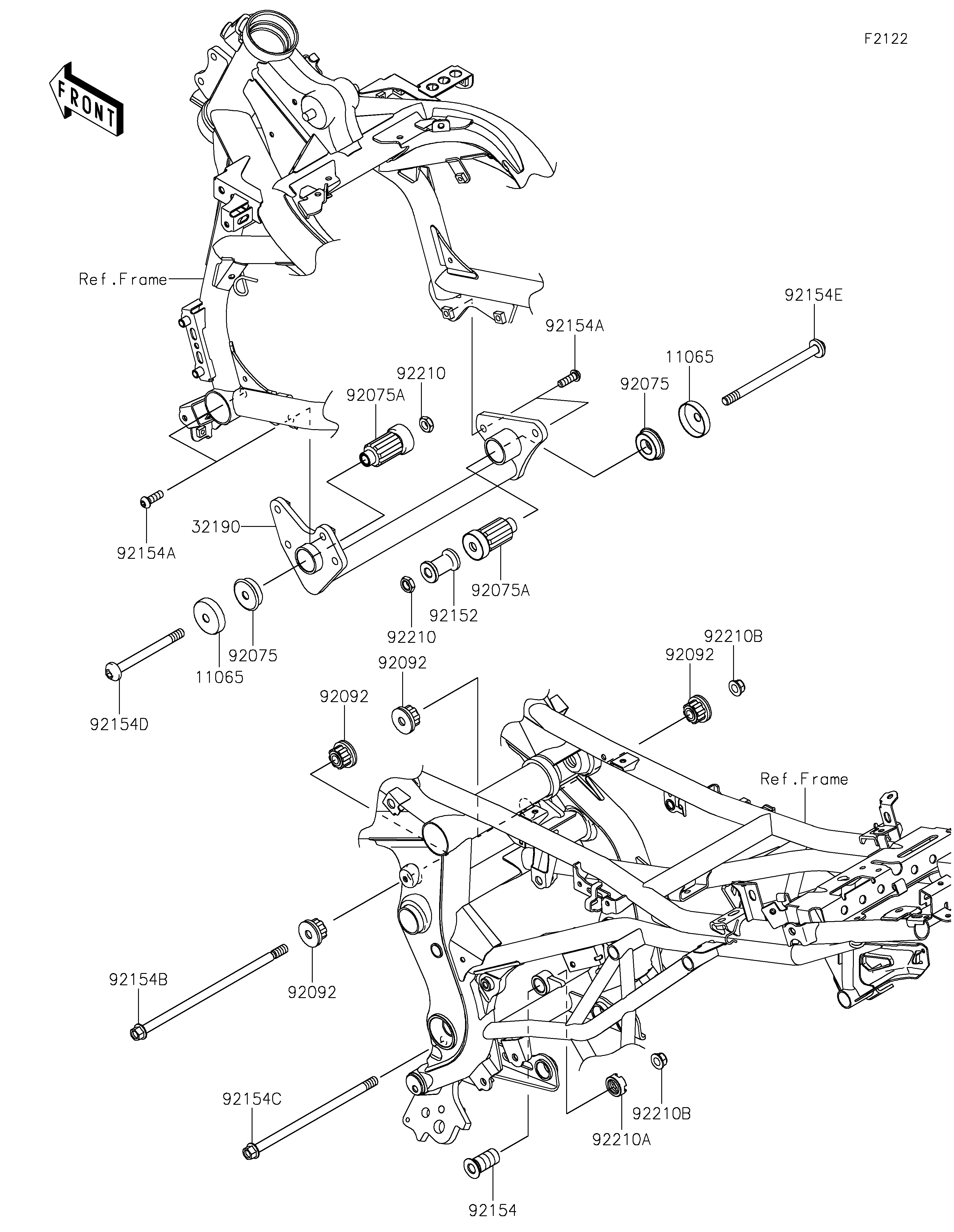

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11065
11065
32190
92075
92075
92075A
92075A
92092
92092
92092
92092
92152
92154
92154A
92154A
92154B
92154C
92154D
92154E
92210
92210
92210A
92210B
92210B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,10.5X43X10 | 11065 | 11065-0871 | 2 | ||
| BRACKET-ENGINE,FR | 32190 | 32190-0871 | 1 | ||
| DAMPER,ENGINE MOUNT | 92075 | 92075-1738 | 2 | ||
| DAMPER,ENGINE MOUNT,MAIN | 92075A | 92075-1739 | 2 | ||
| BUSHING-RUBBER | 92092 | 92092-0021 | 4 | ||
| COLLAR,10.5X26X40 | 92152 | 92152-1878 | 1 | ||
| BOLT,ENGINE MOUNT,18MM | 92154 | 92154-0249 | 1 | ||
| BOLT,SOCKET,8X25 | 92154A | 92154-1485 | 4 | ||
| BOLT,FLANGED,10X237 | 92154B | 92154-1505 | 1 | ||
| BOLT,FLANGED,10X200 | 92154C | 92154-1660 | 1 | ||
| BOLT,SOCKET,10X110 | 92154D | 92154-1671 | 1 | ||
| BOLT,SOCKET,10X150 | 92154E | 92154-1672 | 1 | ||
| NUT,LOCK,10MM | 92210 | 92210-0784 | 2 | ||
| NUT,CASTLE,18MM | 92210A | 92210-0963 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210B | 92210-1081 | 2 |
