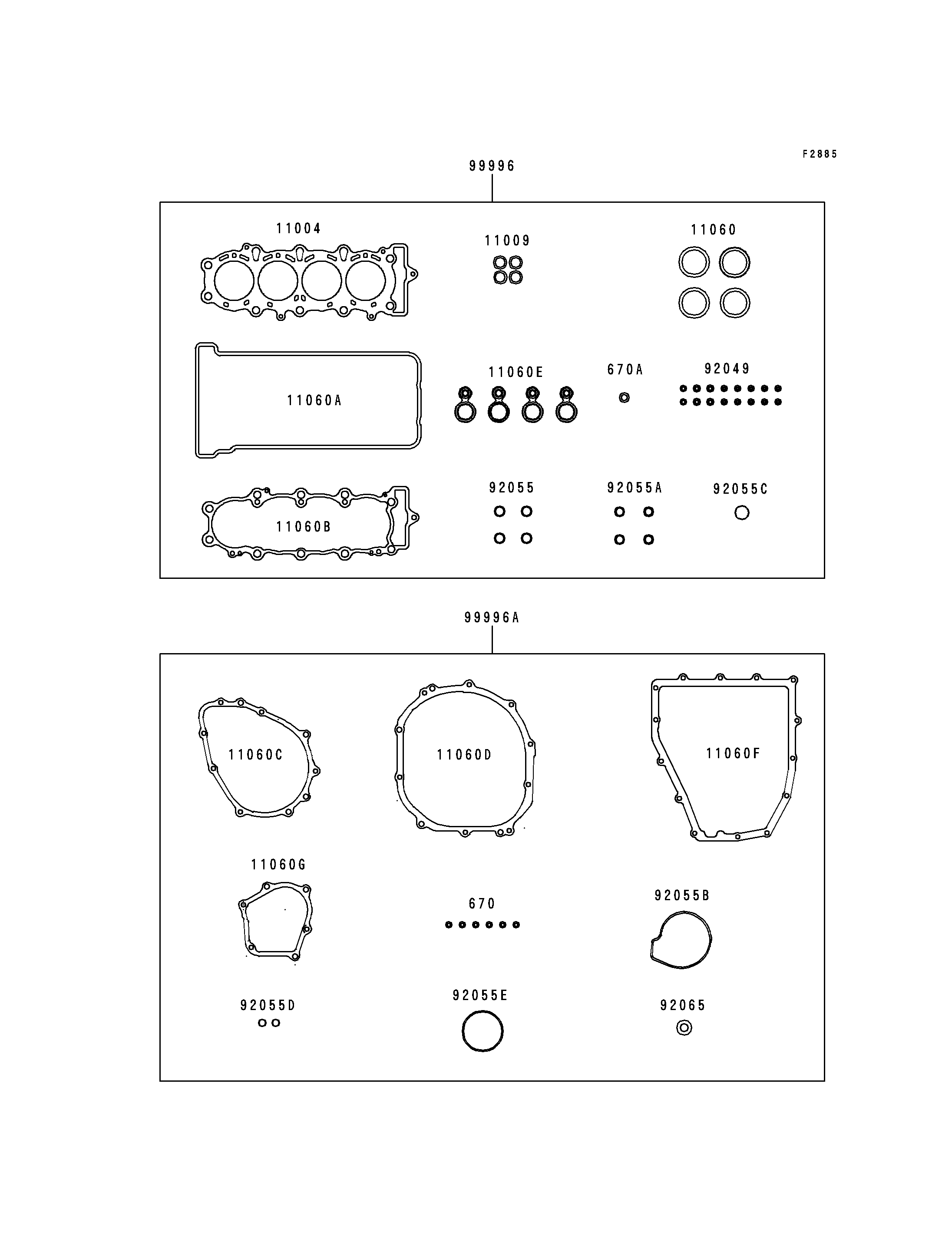

1998 Ninja® ZX™-6R - Gasket Kit

DOWNLOAD PDF
SELECT A NEW PART
670
670A
11004
11009
11060
11060A
11060B
11060C
11060D
11060E
11060F
11060G
92049
92055
92055A
92055B
92055C
92055D
92055E
92065
99996
99996A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING 670 670D1505 AR
O RING 670A 670D2010 AR
GASKET-HEAD 11004 11004-1303 AR
GASKET,14X19.5X1.4 11009 11009-1461 AR
GASKET,EXHAUST PIPE 11060 11060-1203 AR
GASKET,HEAD COVER 11060A 11060-1667 AR
GASKET,CYLINDER BASE 11060B 11060-1844 AR
GASKET,GENERATOR COVER 11060C 11060-1851 AR
GASKET,CLUTCH COVER 11060D 11060-1853 AR
GASKET,BEARING CAP 11060E 11060-1861 AR
GASKET,OIL PAN 11060F 11060-1866 AR
GASKET,PULSING COVER 11060G 11060-1867 AR
SEAL-OIL,VALVE GUIDE 92049 92049-1308 AR
RING-O,25.5X2 92055 92055-1403 AR
RING-O,11.5X1.5 92055A 92055-1469 AR
RING-O,WATER PUMP COVER 92055B 92055-1532 AR
RING-O,TENSIONER 92055C 92055-1583 AR
RING-O,9.5X1.9 92055D 92055-1591 AR
RING-O 92055E 92055-3018 AR
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 AR
KIT,GASKET TOP END,ZX600G 99996 99996-1274 AR
KIT,GASKET BOTTOM END,ZX600G 99996A 99996-1275 AR
