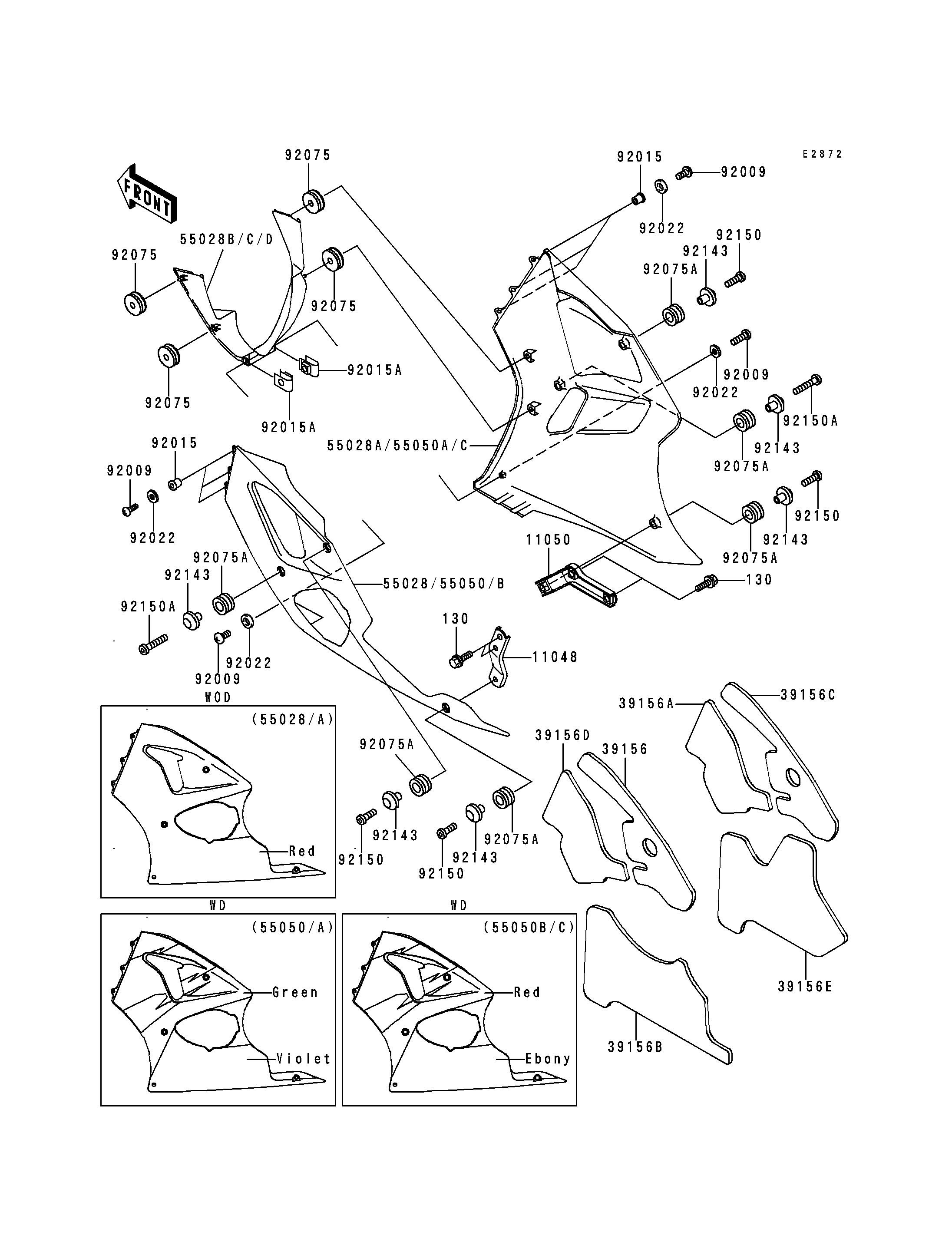

1998 Ninja® ZX™-6R - Cowling Lowers(ZX600-G1)
11048
11048
11050
11050
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
55028
55028
55028A
55028A
55028C
55028C
55028D
55028D
55050
55050
55050A
55050A
92009
92009
92009
92009
92009
92009
92009
92009
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022
92022
92022
92022
92075
92075
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92150
92150
92150
92150
92150
92150
92150
92150
92150A
92150A
92150A
92150A
130
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR COWLING,RH,LWR | 11048 | 11048-1870 | 1 | ||
| BRACKET,SIDE COWLING,LH,LWR | 11050 | 11050-1867 | 1 | ||
| PAD,SIDE COWLING,LH,UPP | 39156 | 39156-1616 | 1 | ||
| PAD,SIDE COWLING,RH,CNT | 39156A | 39156-1617 | 1 | ||
| PAD,SIDE COWLING,LH,LWR | 39156B | 39156-1618 | 1 | ||
| PAD,SIDE COWLING,RH,UPP | 39156C | 39156-1619 | 1 | ||
| PAD,SIDE COWLING,LH,CNT | 39156D | 39156-1620 | 1 | ||
| PAD,SIDE COWLING,RH,LWR | 39156E | 39156-1621 | 1 | ||
| COWLING,SIDE,LH,S.RED | 55028 | 55028-1366-H1 | 1 | ||
| COWLING,SIDE,RH,S.RED | 55028A | 55028-1367-H1 | 1 | ||
| COWLING,FR,S.RED | 55028C | 55028-1368-H1 | 1 | ||
| COWLING,FR,L.GREEN | 55028D | 55028-1368-7F | 1 | ||
| COWLING,SIDE,LH,GREEN/VIOLET | 55050 | 55050-5175-G9 | 1 | ||
| COWLING,SIDE,RH,GREEN/VIOLET | 55050A | 55050-5176-G9 | 1 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 8 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 6 | ||
| NUT,5MM | 92015A | 92015-1798 | 2 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 8 | ||
| DAMPER | 92075 | 92075-1067 | 4 | ||
| DAMPER | 92075A | 92075-1634 | 6 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 6 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 4 | ||
| BOLT,SOCKET,6X30 | 92150A | 92150-1554 | 2 | ||
| BOLT-FLANGED | 130 | 130V0616 | 4 | ||
| COWLING,FR,F.RED | 55028B | 55028-1368-B1 | 1 | ||
| COWLING,SIDE,LH,EBONY/RED | 55050B | 55050-5178-J3 | 1 | ||
| COWLING,SIDE,RH,EBONY/RED | 55050C | 55050-5179-J3 | 1 |
